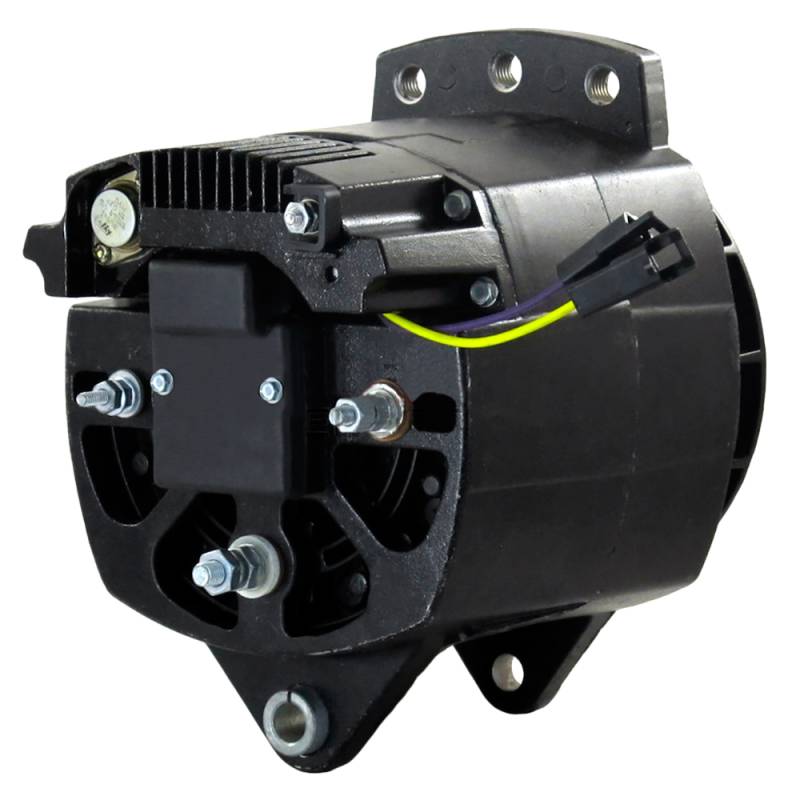

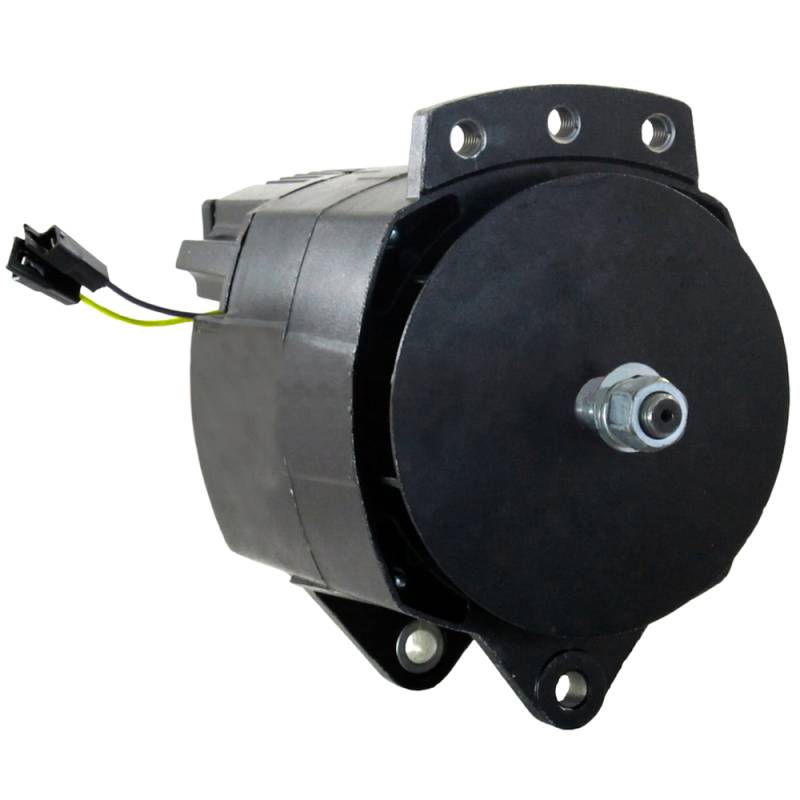

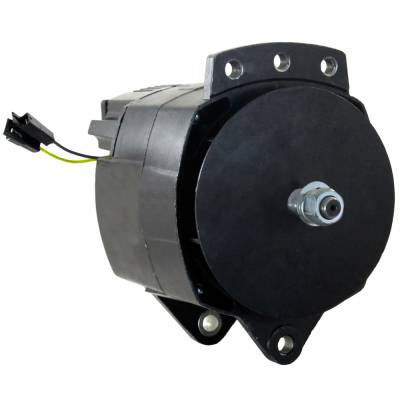

New 24V 150A Alternator Compatible With Thermo King Bus A/C 24V Special Batteryless System

*THIS ALTERNATOR IS MADE IN CANADA AND WORKS IN CONJUNCTION WITH 24V SYSTEMS.

MOTOROLA 10-575, 8SC3017VA, 8SC3017V

THERMO KING 4125D55G01, 44-6918

NOTES: BATTERYLESS ALTERNATOR. REPLACES 8SC3018V. HAS NEW STATOR WINDING. 12V EXCITE
VOLT: 24V
OUTPUT: 150A
MOUNTING STYLE: J-180
ROTATION: CLOCKWISE
HOUSING COATING: MARINE
UL APPROVED: NO
MOUNTING BOLT SIZE: 1/2-13 UNC
MOUNTING HOLES: 3
POSITIVE STUD: 5/16-24 UNC
NEGATIVE STUD: 1/4-28 UNF
RECTIFIER LOCATION: INTERNAL
SHAFT DIAMETER: .8740-.8745
EXCITATION TYPE: IGNITION EXCITE
REGULATOR LOCATION: REMOTE
REGULATOR NUMBER: 8RL3013A
ADJUSTABLE REGULATOR: YES
REMOTE SENSE: YES

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
