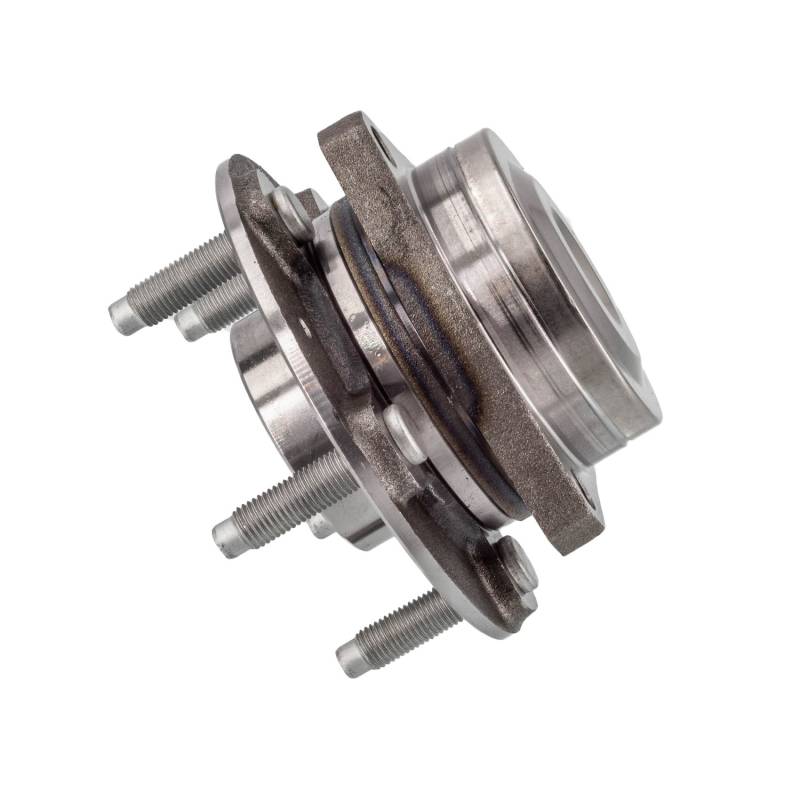

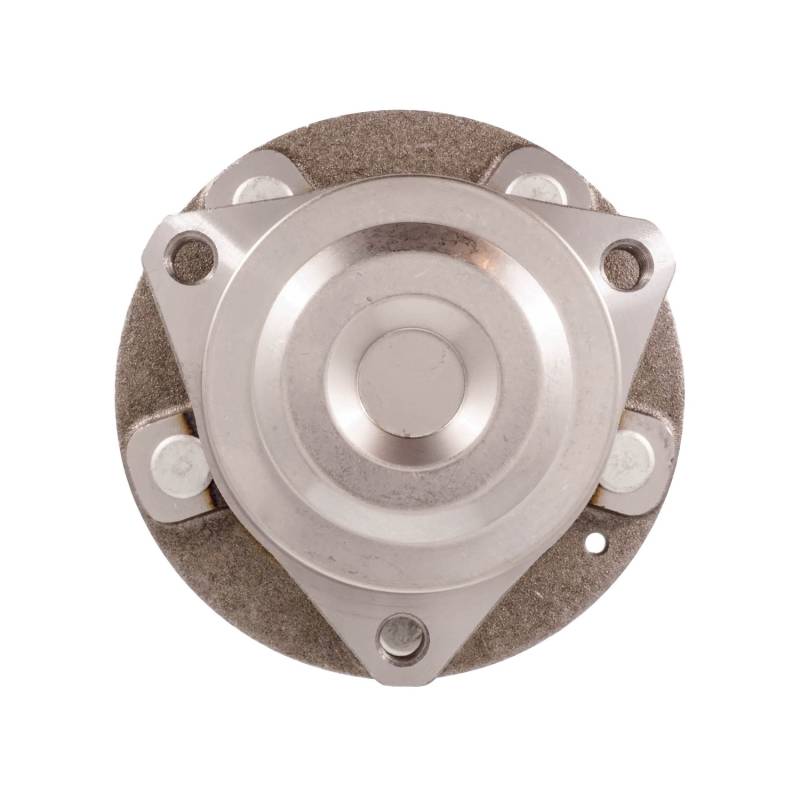

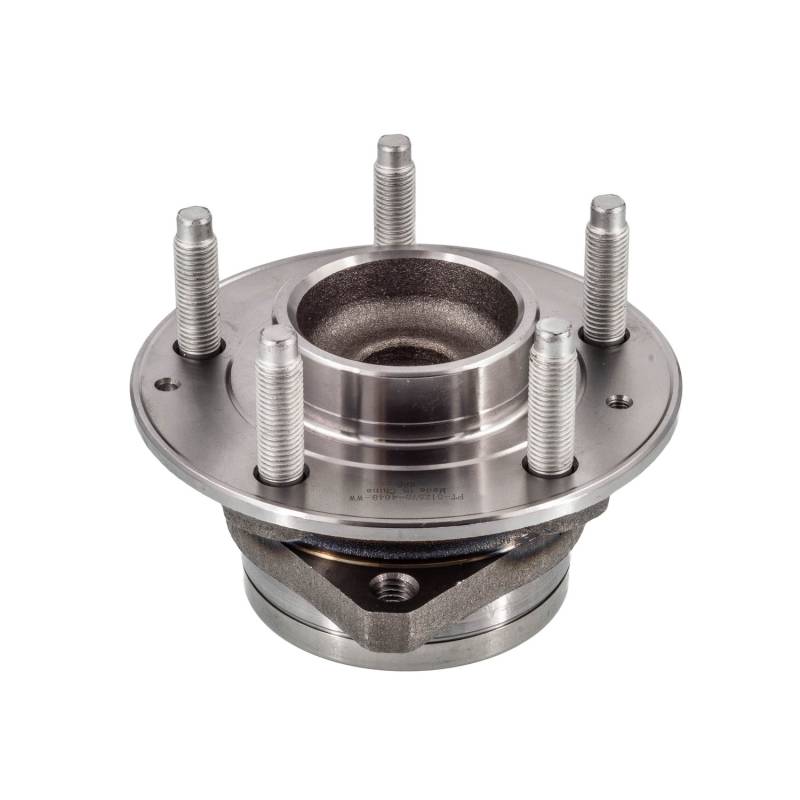

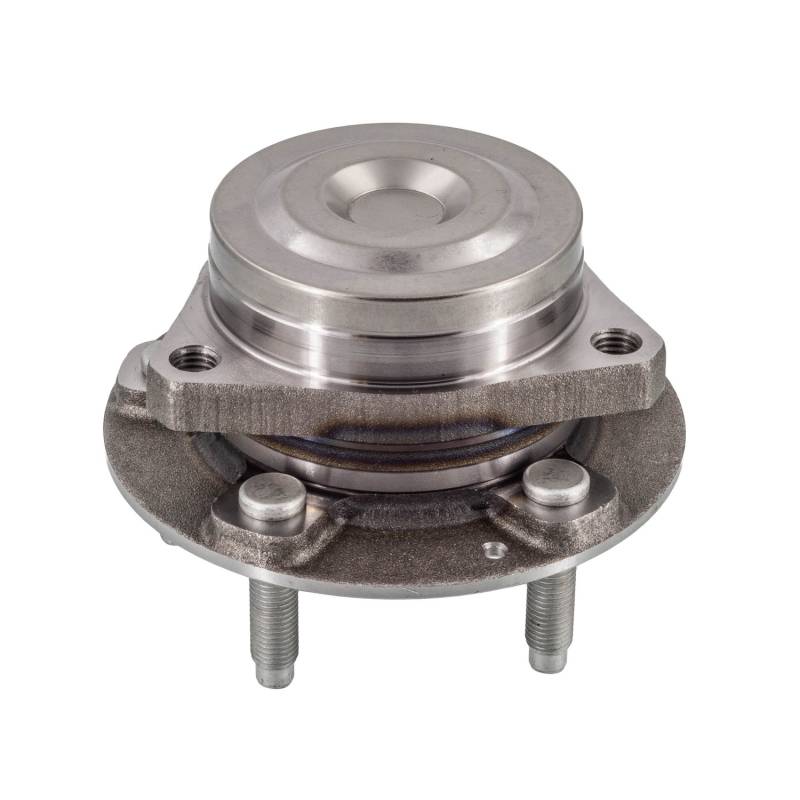

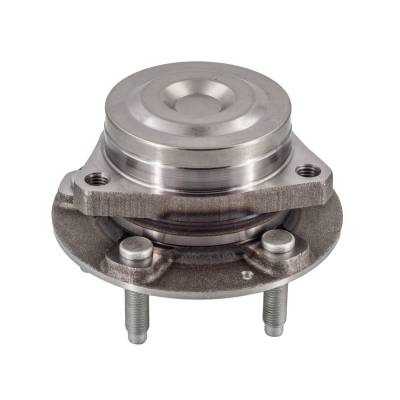

New Hub Assembly Compatible With Chevrolet Buick Cadillac Malibu Limited Malibu Lacrosse Envision

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

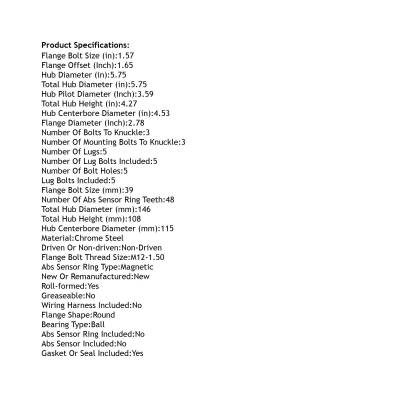

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.57
FLANGE BOLT SIZE (MM): 39
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.75
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.75
TOTAL HUB DIAMETER (MM): 146
TOTAL HUB HEIGHT (IN): 4.27
TOTAL HUB HEIGHT (MM): 108
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: 13507017 RW20-173
AUTOPART INTERNATIONAL: 1411-605230
BCA: WE61831
CENTRIC PARTS: 40162000
MOOG HUB ASSEMBLIES: 512575
NAPA: PBR930988

APPLICATIONS:
CHEVROLET MALIBU LIMITED (2016-2016)
CHEVROLET MALIBU (2016-2023)
BUICK LACROSSE (2017-2019)
BUICK ENVISION (2018-2018)
BUICK REGAL SPORTBACK (2018-2020)
CADILLAC CT4 (2020-2022)
