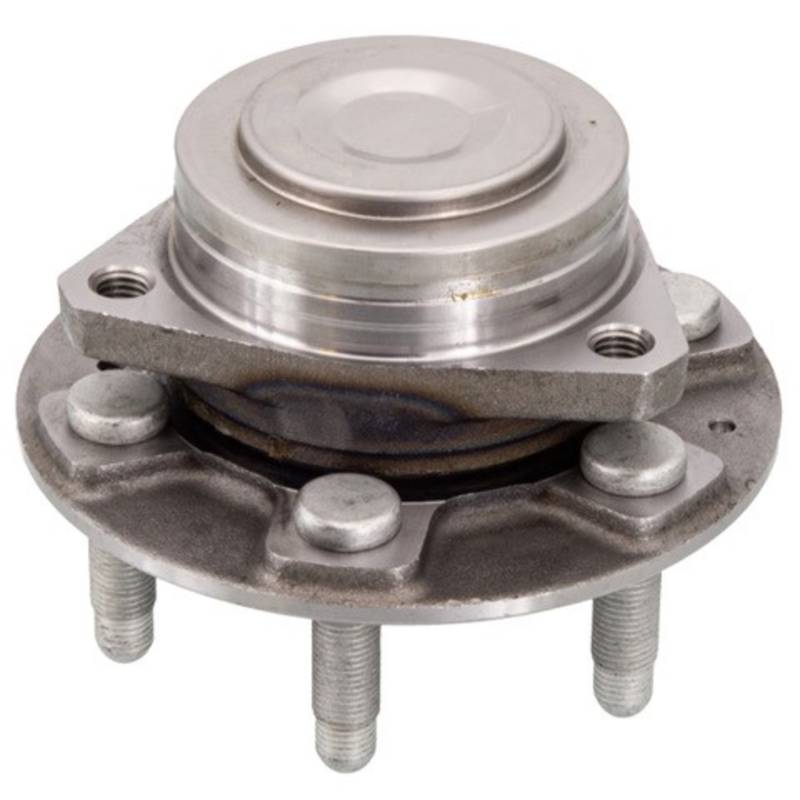

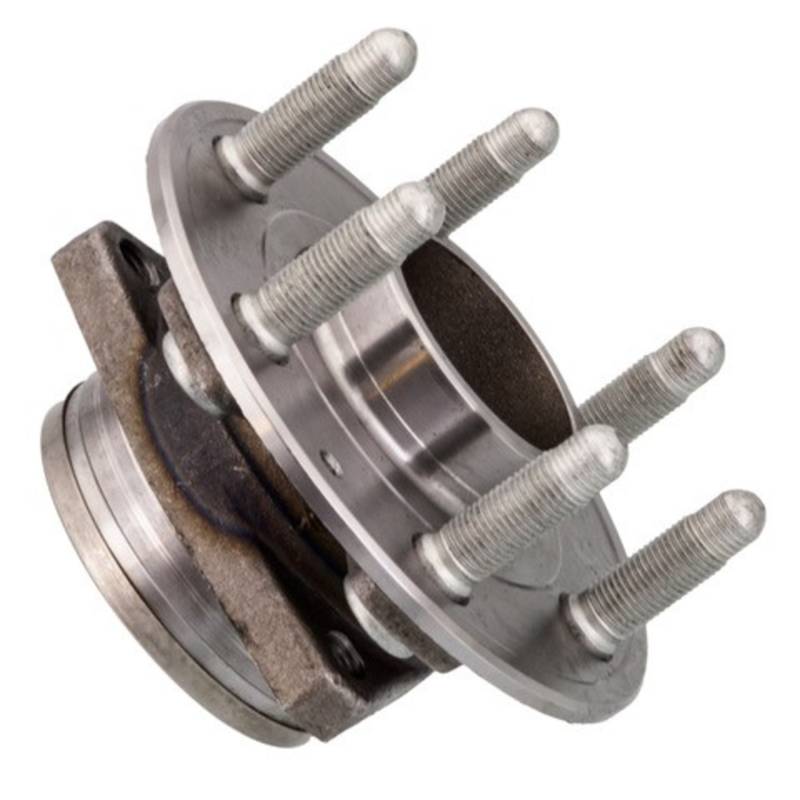

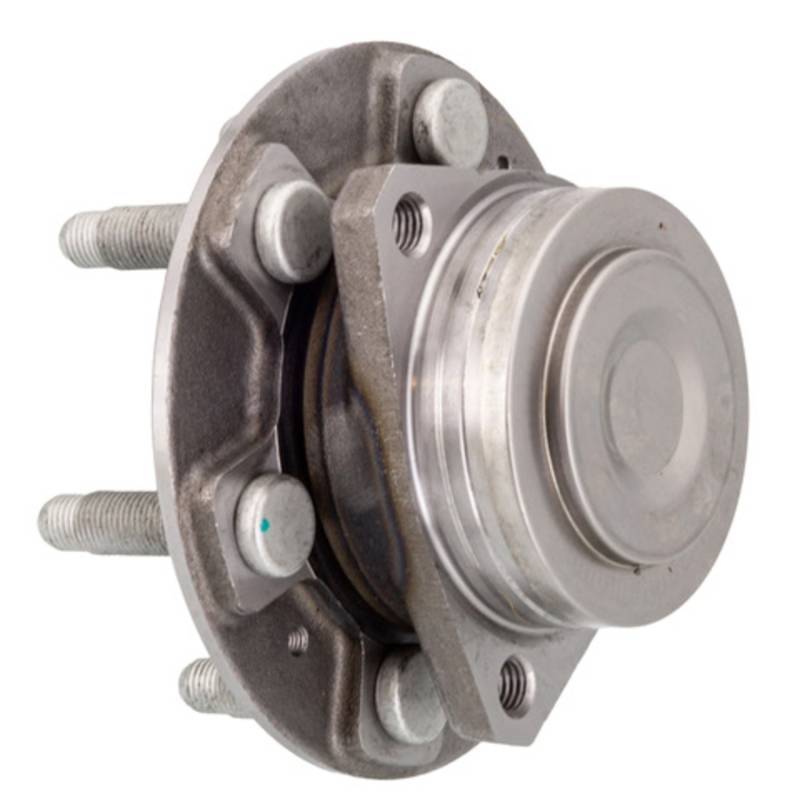

New Hub Assembly Compatible With Cadillac Gmc Buick Chevrolet Xt5 Acadia Limited Acadia Enclave

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

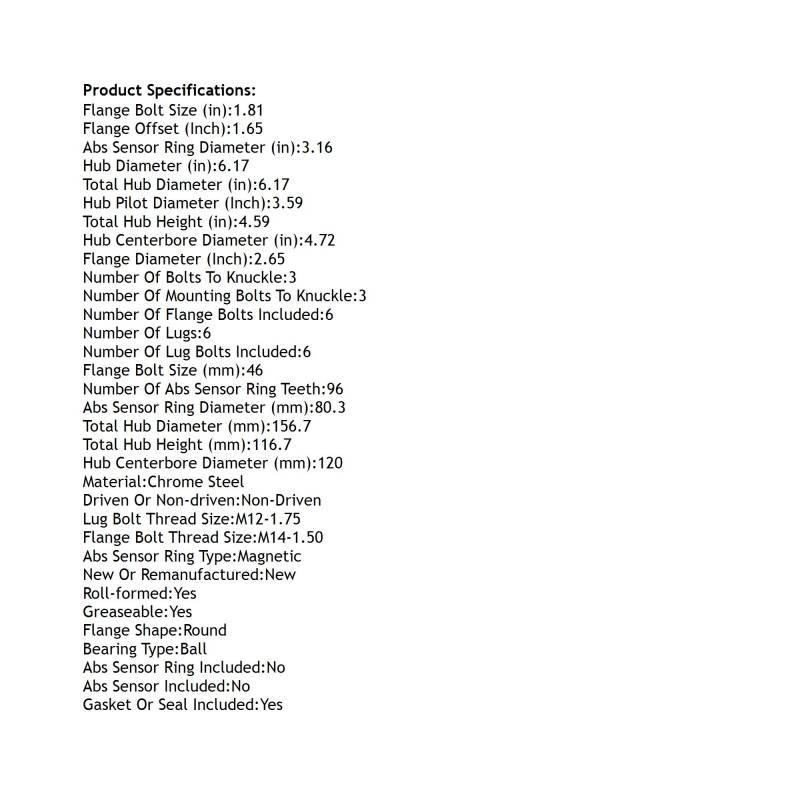

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (IN): 3.16
ABS SENSOR RING DIAMETER (MM): 80.3
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.81
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.65
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.72
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.17
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 6.17
TOTAL HUB DIAMETER (MM): 156.7
TOTAL HUB HEIGHT (IN): 4.59
TOTAL HUB HEIGHT (MM): 116.7

REPLACES:
ACDELCO: 13552420
AUTOPART INTERNATIONAL: 1411-705596
MOOG HUB ASSEMBLIES: 512657

APPLICATIONS:
CADILLAC XT5 (2017-2022)
GMC ACADIA LIMITED (2017-2017)
GMC ACADIA (2017-2023)
BUICK ENCLAVE (2018-2022)
CHEVROLET TRAVERSE (2018-2023)
CADILLAC XT6 (2020-2022)
