THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

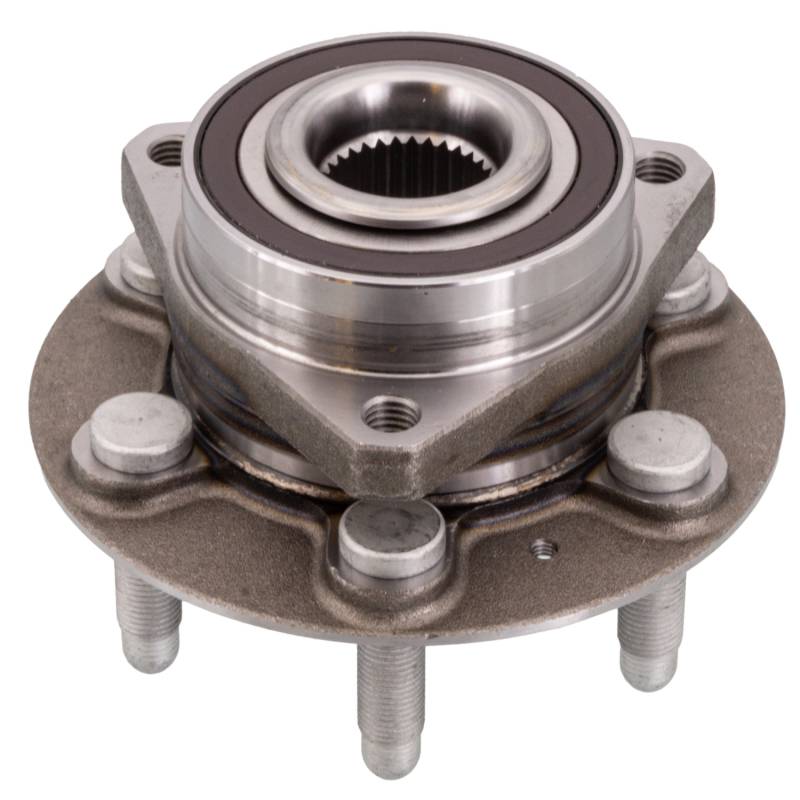

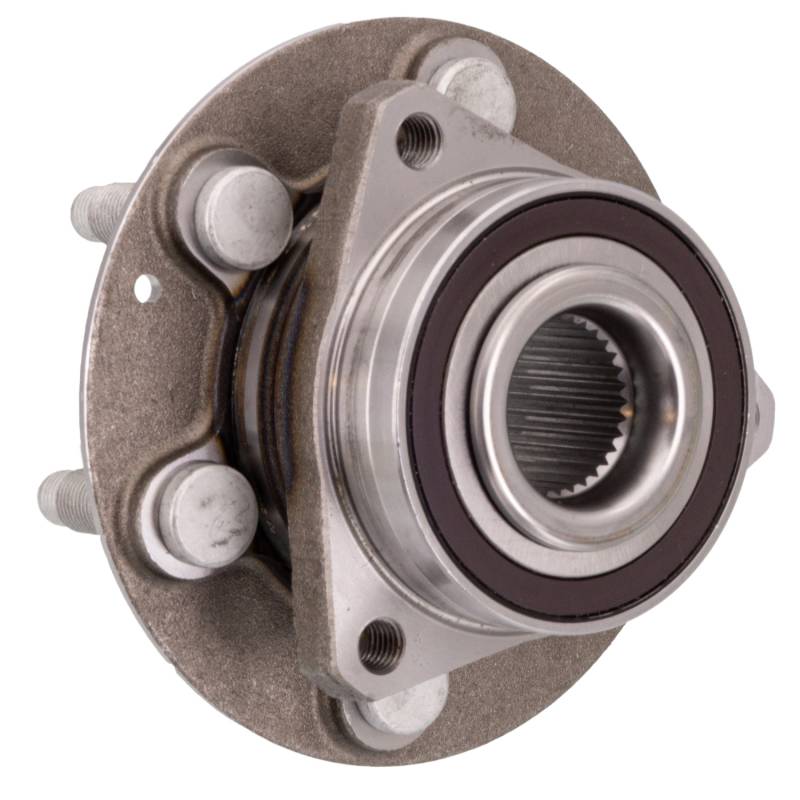

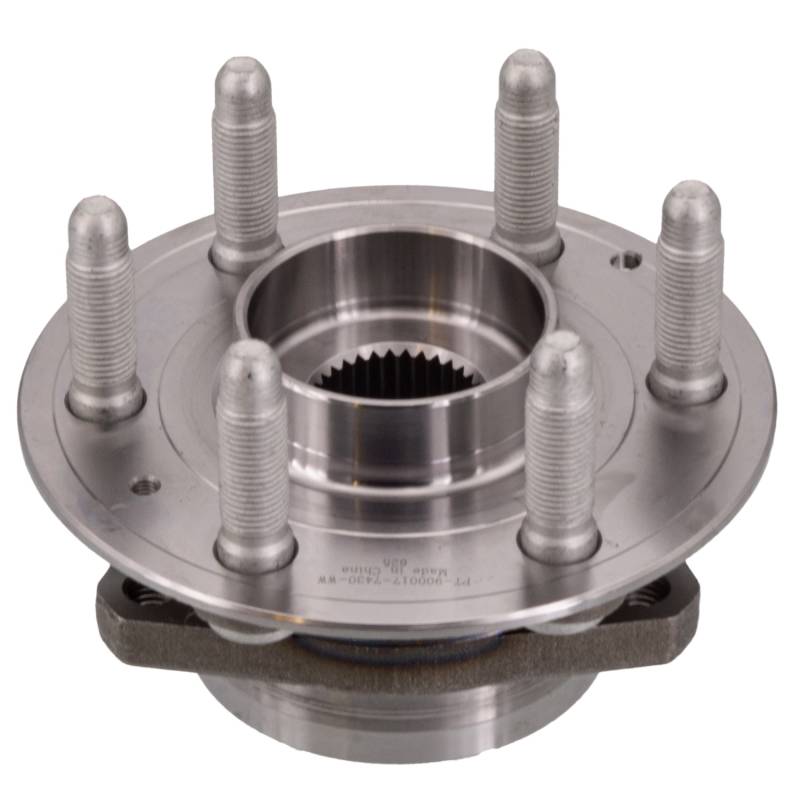

PRODUCT TYPE: HUB ASSEMBLY

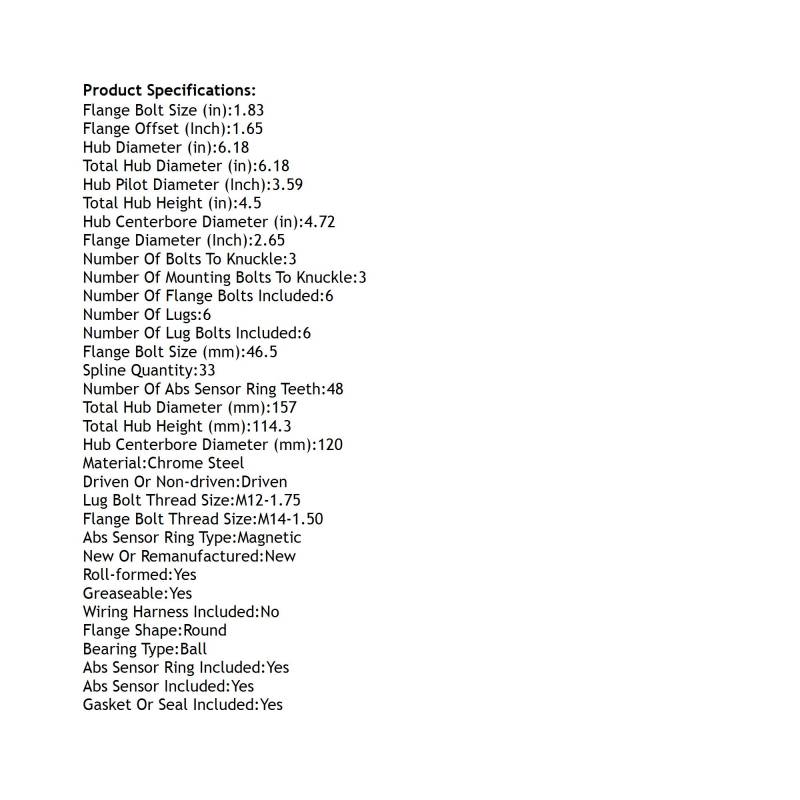

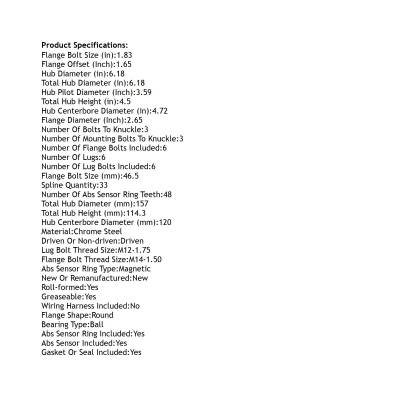

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.83
FLANGE BOLT SIZE (MM): 46.5
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.65
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.72
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.18
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 6.18
TOTAL HUB DIAMETER (MM): 157
TOTAL HUB HEIGHT (IN): 4.5
TOTAL HUB HEIGHT (MM): 114.3
WIRING HARNESS INCLUDED: NO
REPLACES:
ACDELCO: 13536583
COAST TO COAST: 900017
GENERAL MOTORS: 13526554 13536583
NAPA: PFW470
APPLICATIONS:
CHEVROLET BLAZER (2019-2023)
