THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.
PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

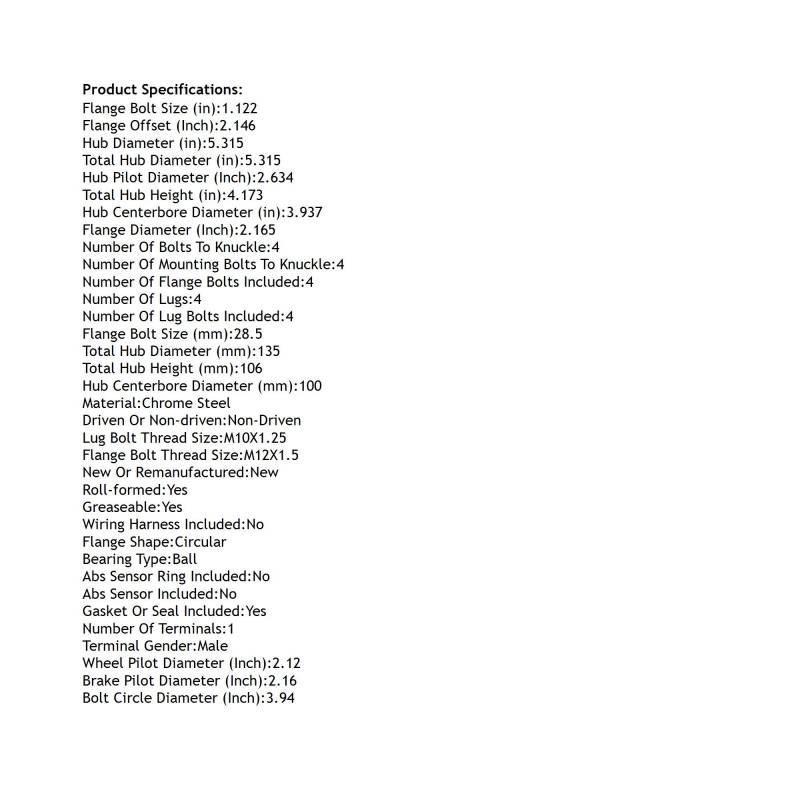

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 3.94
BRAKE PILOT DIAMETER (INCH): 2.16
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.122
FLANGE BOLT SIZE (MM): 28.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.165
FLANGE OFFSET (INCH): 2.146
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.315
HUB PILOT DIAMETER (INCH): 2.634
LUG BOLT THREAD SIZE: M10X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.315
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 4.173
TOTAL HUB HEIGHT (MM): 106
WHEEL PILOT DIAMETER (INCH): 2.12
WIRING HARNESS INCLUDED: NO
REPLACES:
OTHER PART NUMBER: PT512210
SKF: BR930357
TIMKEN: HA592410
AUTOPART INTERNATIONAL: 1411-44914
BCA: WE61280
BECK/ARNLEY: 051-6092
CENTRIC PARTS: 40544008E
FAG US: 102500
GSP: 693210
MEVOTECH: H512210
MOOG HUB ASSEMBLIES: 512210
NAPA: PBR930357
APPLICATIONS:
TOYOTA ECHO (2000-2005)
