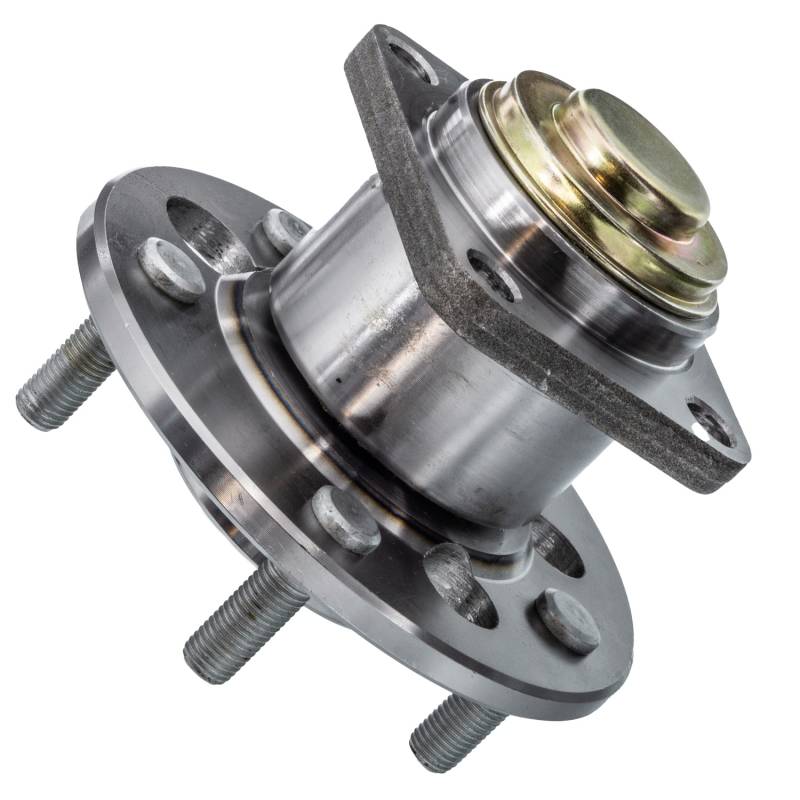

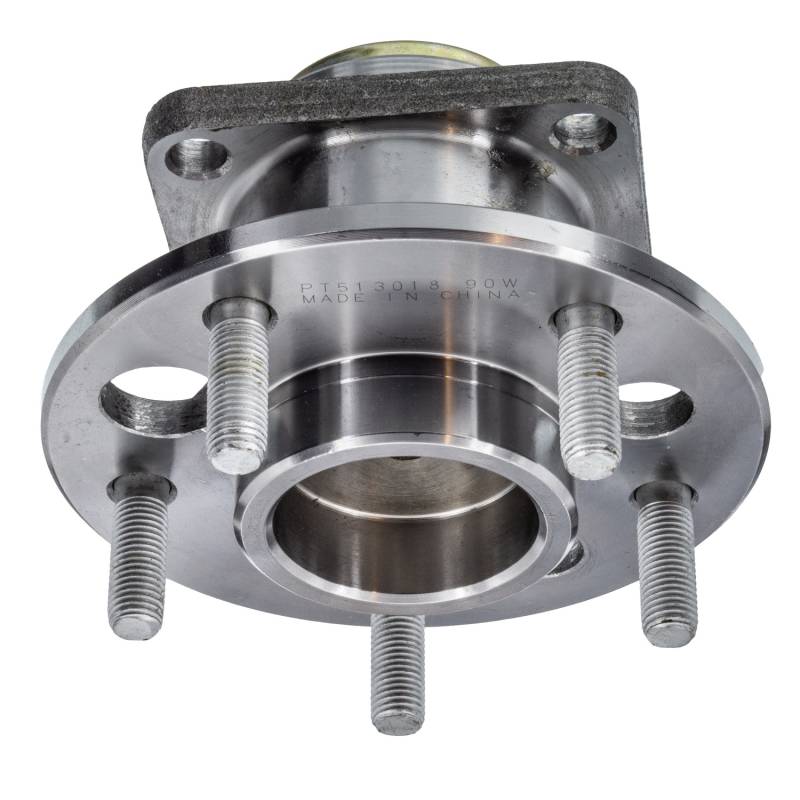

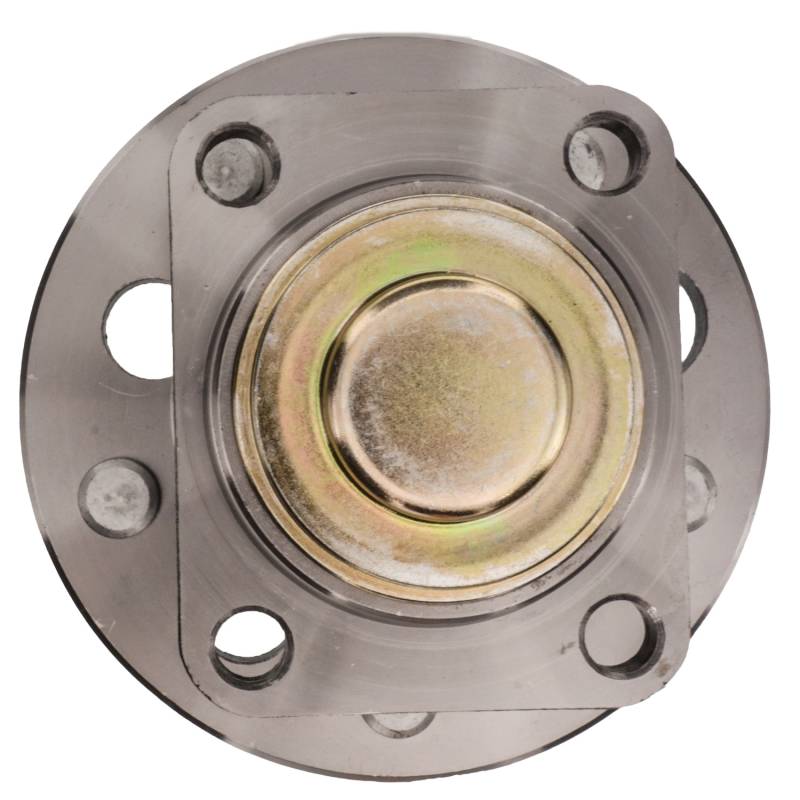

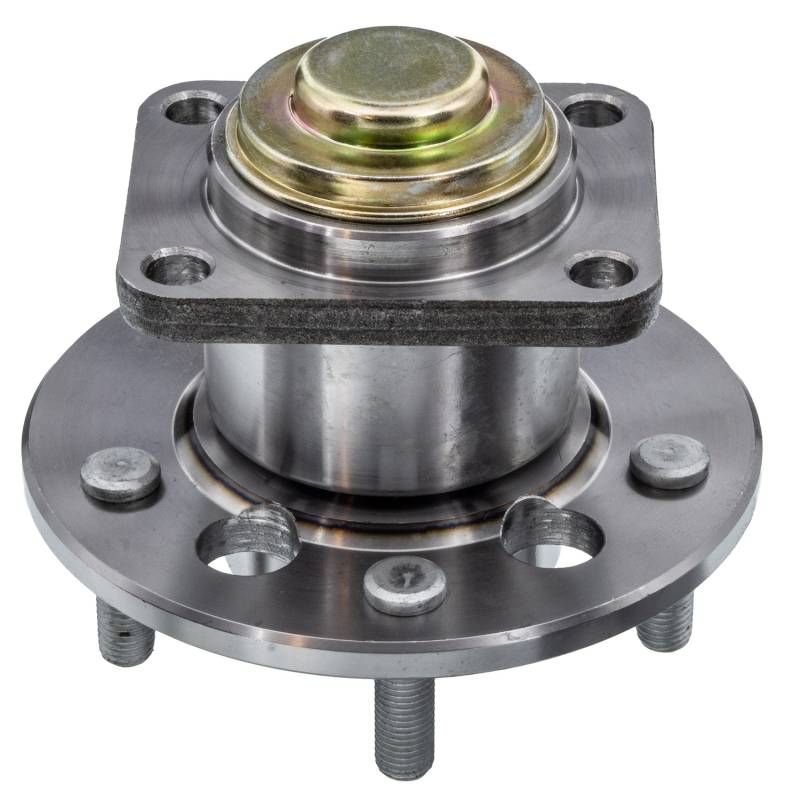

New Hub Assembly Compatible With Chevrolet Buick Pontiac Impala Regal Monte Carlo Aztek Grand Prix

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

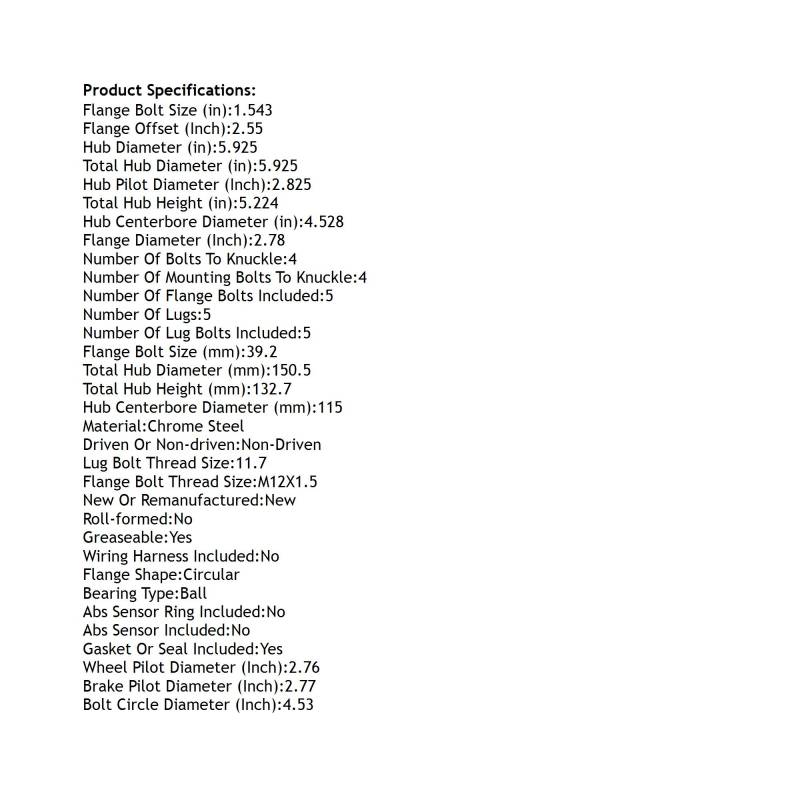

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.53
BRAKE PILOT DIAMETER (INCH): 2.77
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.543
FLANGE BOLT SIZE (MM): 39.2
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.55
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.925
HUB PILOT DIAMETER (INCH): 2.825
LUG BOLT THREAD SIZE: 11.7
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.925
TOTAL HUB DIAMETER (MM): 150.5
TOTAL HUB HEIGHT (IN): 5.224
TOTAL HUB HEIGHT (MM): 132.7
WHEEL PILOT DIAMETER (INCH): 2.76
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512221
SKF: BR930026
TIMKEN: 512221
ACDELCO: R20-06 RW20-91
AUTOPART INTERNATIONAL: 1411-44700
BCA: WE61002
CENTRIC PARTS: 40562000
FAG US: 102261
GENERAL MOTORS: 12413029 19122338
GSP: 103221
MEVOTECH: H512221
MOOG HUB ASSEMBLIES: 512221
NAPA: PBR930026

APPLICATIONS:
CHEVROLET IMPALA (2000-2005)
BUICK REGAL (2003-2004)
CHEVROLET MONTE CARLO (2003-2005)
PONTIAC AZTEK (2003-2005)
PONTIAC GRAND PRIX (2003-2003)
BUICK CENTURY (2004-2005)
BUICK LACROSSE (2005-2005)
