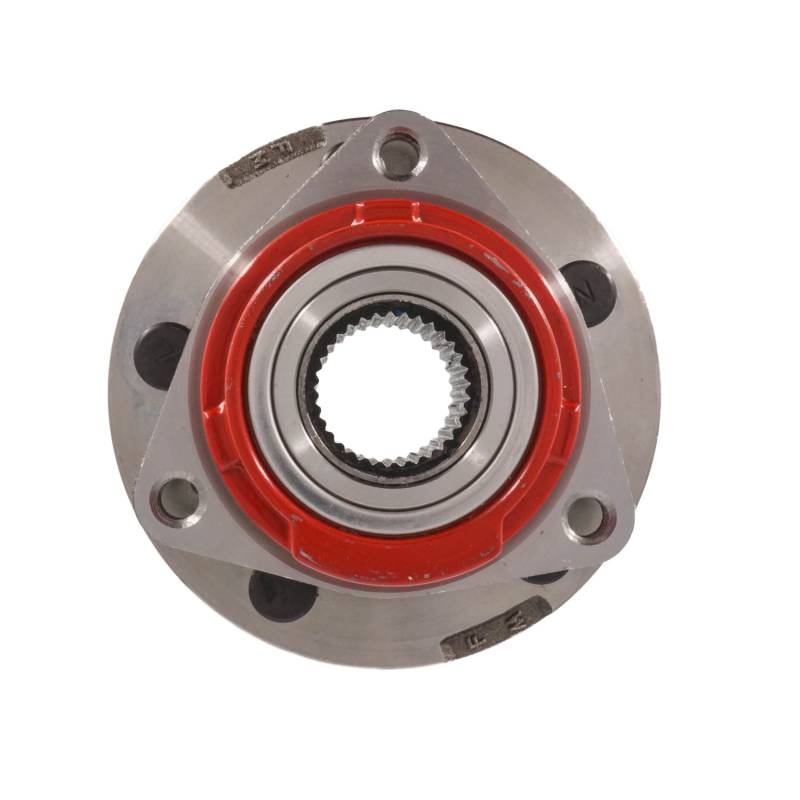

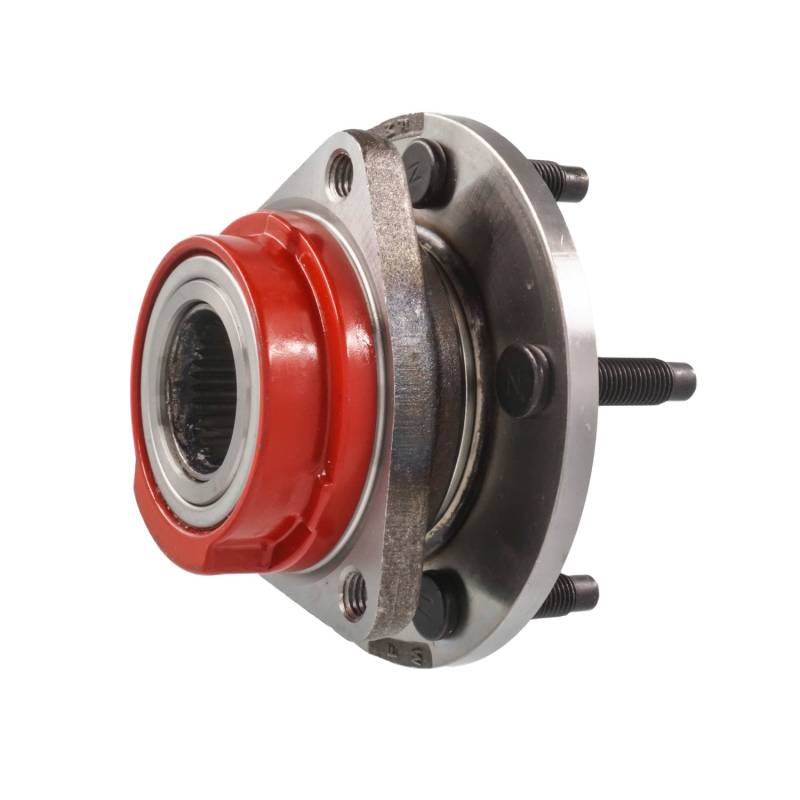

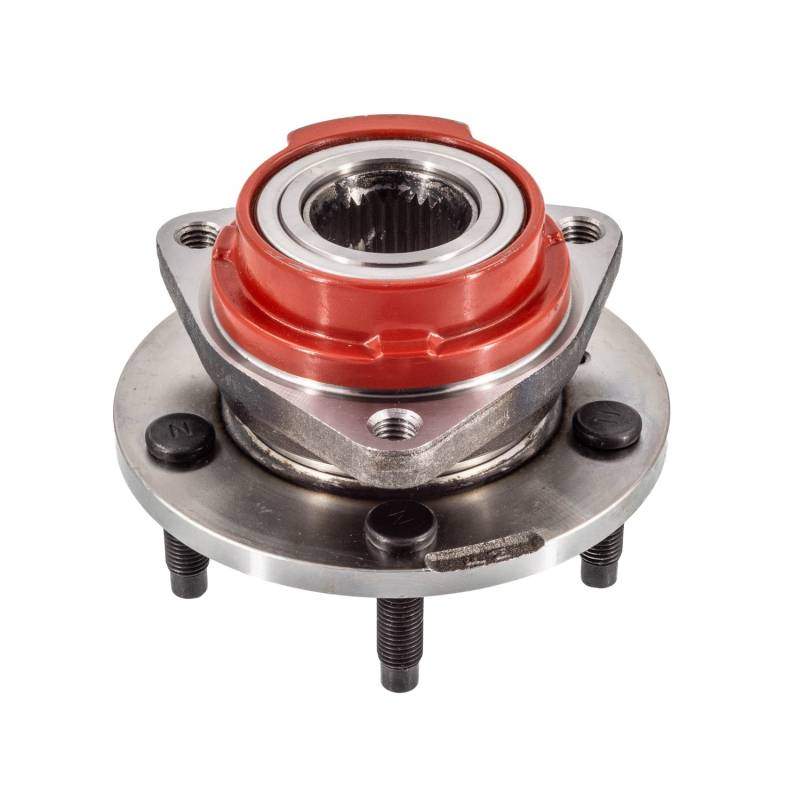

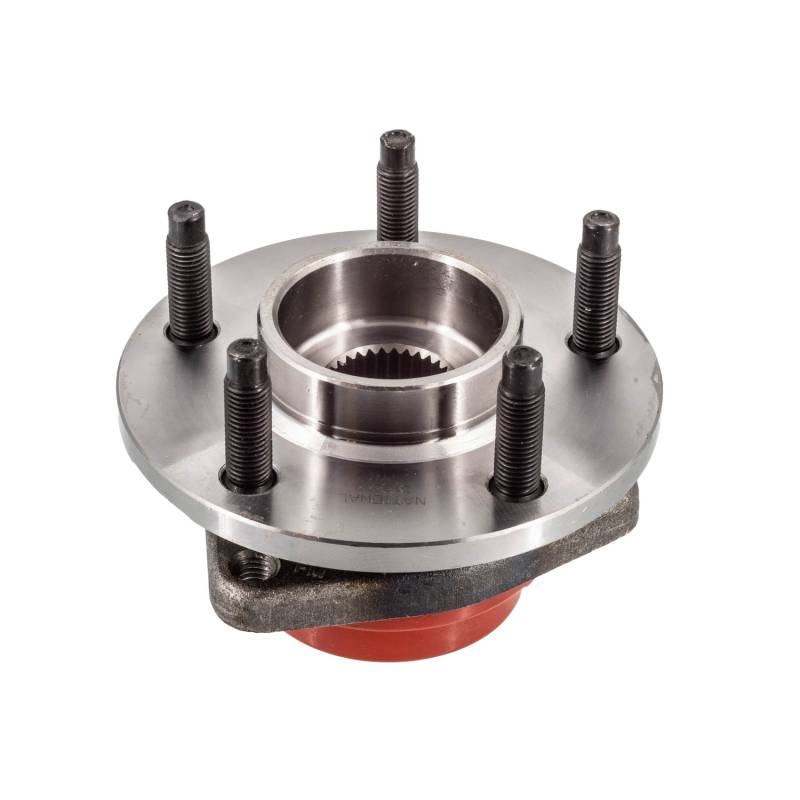

New Hub Assembly Compatible With Chevrolet Buick Pontiac 2000 2001 2002 2003 2004 2005 2006 2007

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.54
FLANGE BOLT SIZE (MM): 39
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.73
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 5.73
TOTAL HUB DIAMETER (MM): 145
TOTAL HUB HEIGHT (IN): 4.26
TOTAL HUB HEIGHT (MM): 108
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513203
SKF: BR930184
TIMKEN: HA590085
ACDELCO: 19390692 513203A FW304
AUTOPART INTERNATIONAL: 1411-49150
BCA: WE60880
CENTRIC PARTS: 40062000
FAG US: 101626
GENERAL MOTORS: 88964096
GSP: 104203HD
MEVOTECH: H513203
MOOG HUB ASSEMBLIES: 513203
NAPA: PBR930184

APPLICATIONS:
CHEVROLET IMPALA (2000-2008)
BUICK CENTURY (2003-2005)
BUICK REGAL (2003-2004)
BUICK RENDEZVOUS (2003-2007)
CHEVROLET MONTE CARLO (2003-2007)
CHEVROLET VENTURE (2003-2005)
PONTIAC AZTEK (2003-2005)
PONTIAC GRAND PRIX (2003-2008)
PONTIAC MONTANA (2003-2005)
BUICK ALLURE (2005-2005)
BUICK LACROSSE (2005-2005)
