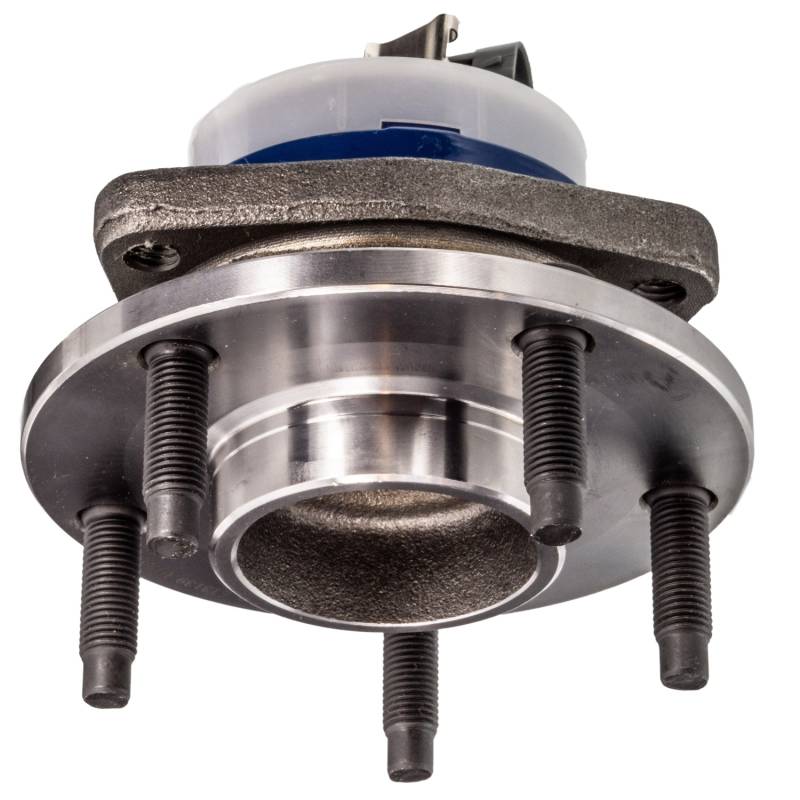

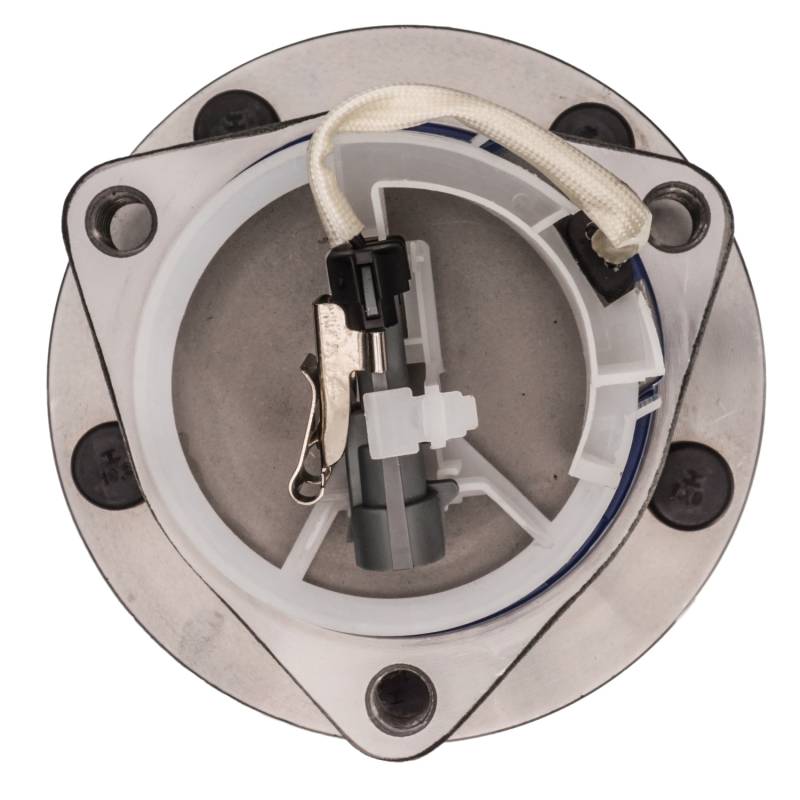

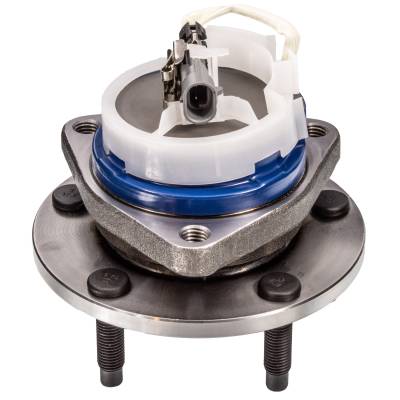

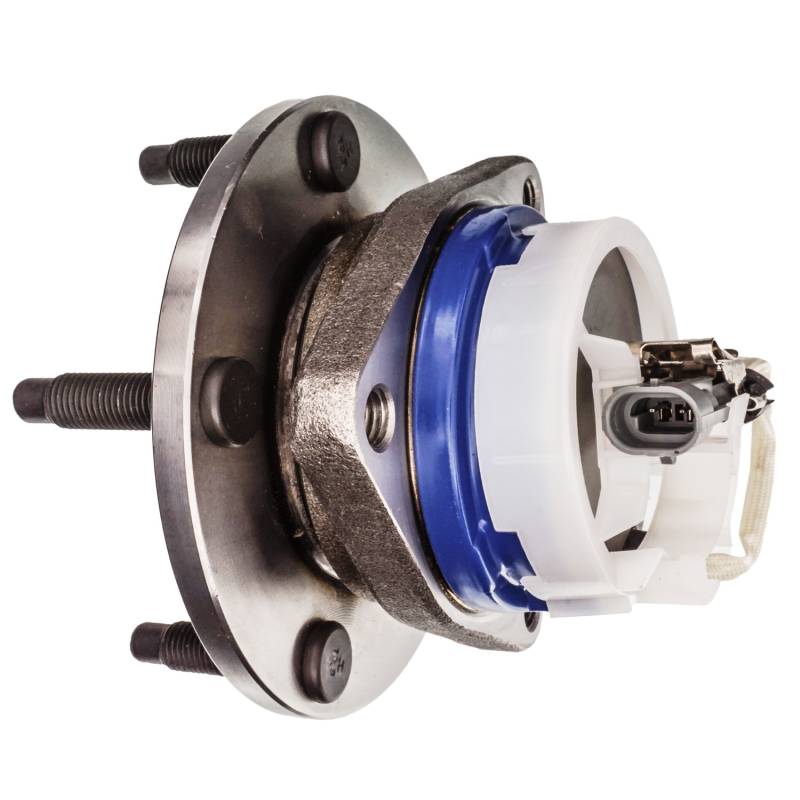

New Hub Assembly Compatible With Chevrolet Cadillac Corvette Xlr 1997 1998 1999 2000 2001 2002 2003

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

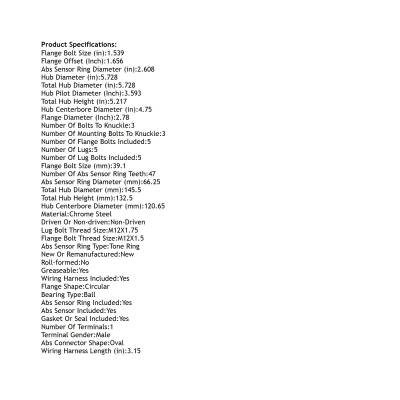

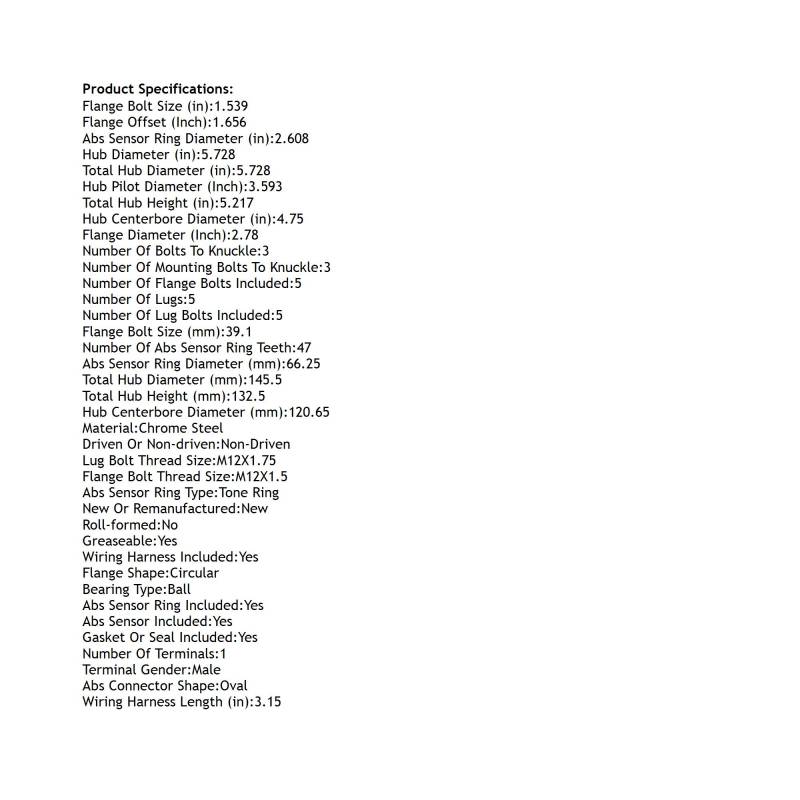

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.608
ABS SENSOR RING DIAMETER (MM): 66.25
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.539
FLANGE BOLT SIZE (MM): 39.1
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.656
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.75
HUB CENTERBORE DIAMETER (MM): 120.65
HUB DIAMETER (IN): 5.728
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.728
TOTAL HUB DIAMETER (MM): 145.5
TOTAL HUB HEIGHT (IN): 5.217
TOTAL HUB HEIGHT (MM): 132.5
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 3.15

REPLACES:
ACDELCO: FW297
AUTOPART INTERNATIONAL: 1411-02129
BCA: WE61520
CENTRIC PARTS: 40762024
FAG US: 102206
GSP: 104139
MEVOTECH: H513139
MOOG HUB ASSEMBLIES: 513139
NAPA: PBR930099

APPLICATIONS:
CHEVROLET CORVETTE (1997-2008)
CADILLAC XLR (2004-2008)
