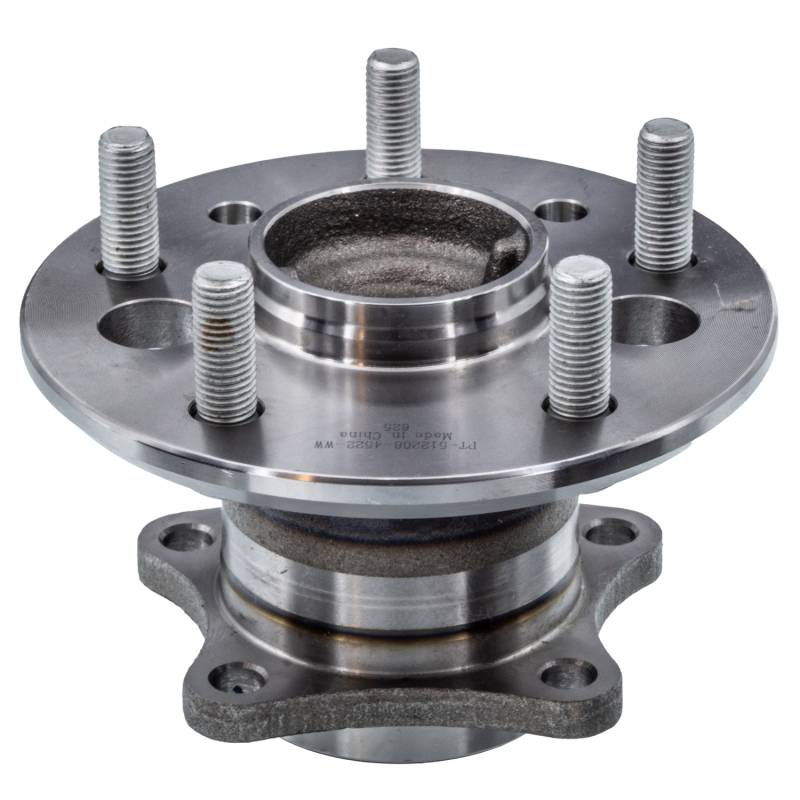

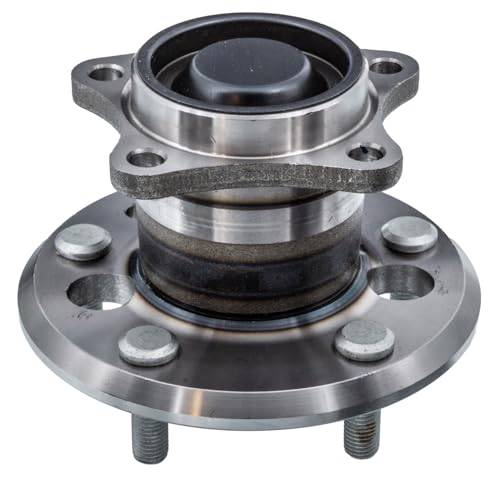

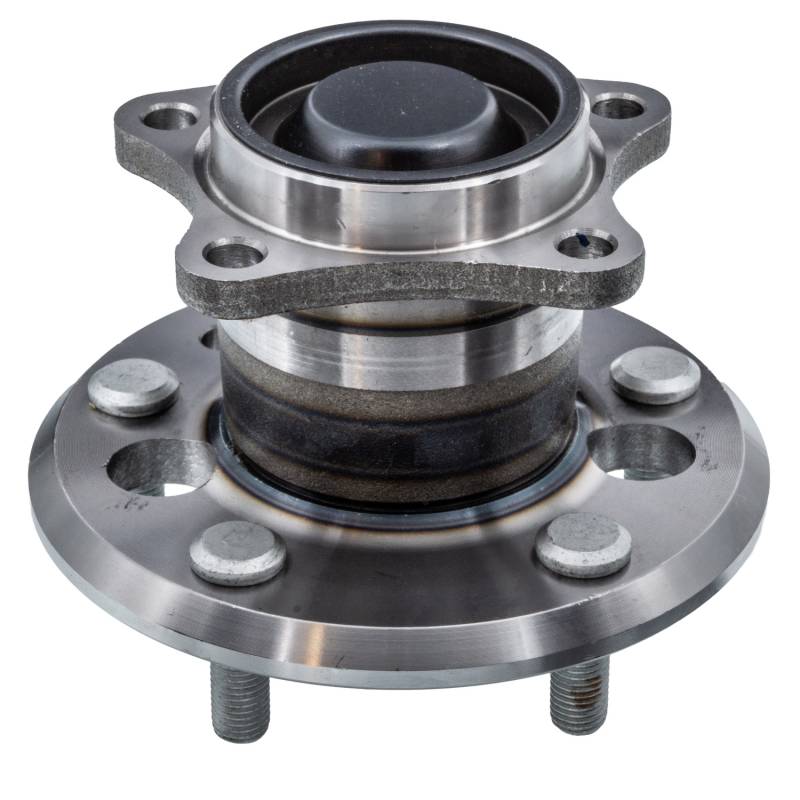

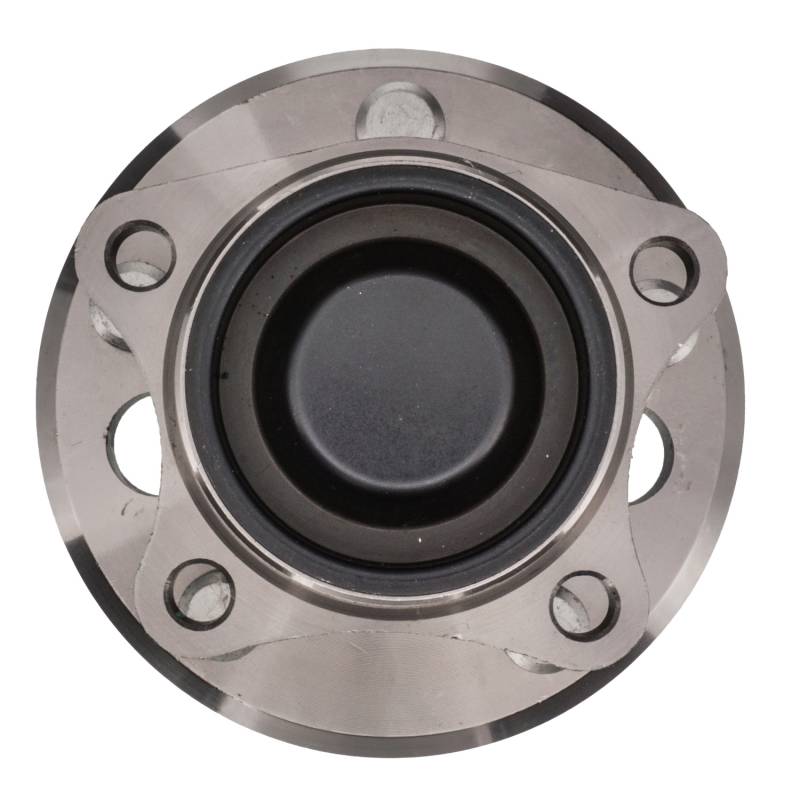

New Hub Assembly Compatible With Toyota Camry 2.4L 3.0L 3.3L 2002 2003 2004 By Part Numbers Br930232

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

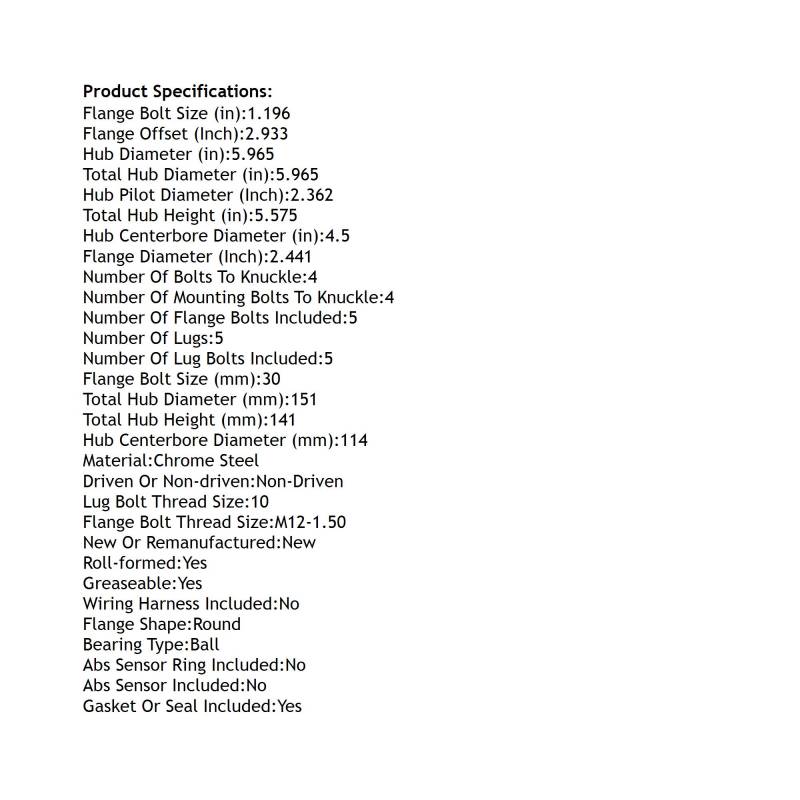

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.196
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.441
FLANGE OFFSET (INCH): 2.933
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.965
HUB PILOT DIAMETER (INCH): 2.362
LUG BOLT THREAD SIZE: 10
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.965
TOTAL HUB DIAMETER (MM): 151
TOTAL HUB HEIGHT (IN): 5.575
TOTAL HUB HEIGHT (MM): 141
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-04419
BCA: WE60905
BECK/ARNLEY: 051-6090
CENTRIC PARTS: 40544006E
FAG US: 102498
GSP: 693208
MEVOTECH: H512208
MOOG HUB ASSEMBLIES: 512208
NAPA: PBR930232

APPLICATIONS:
TOYOTA CAMRY (2002-2004)
