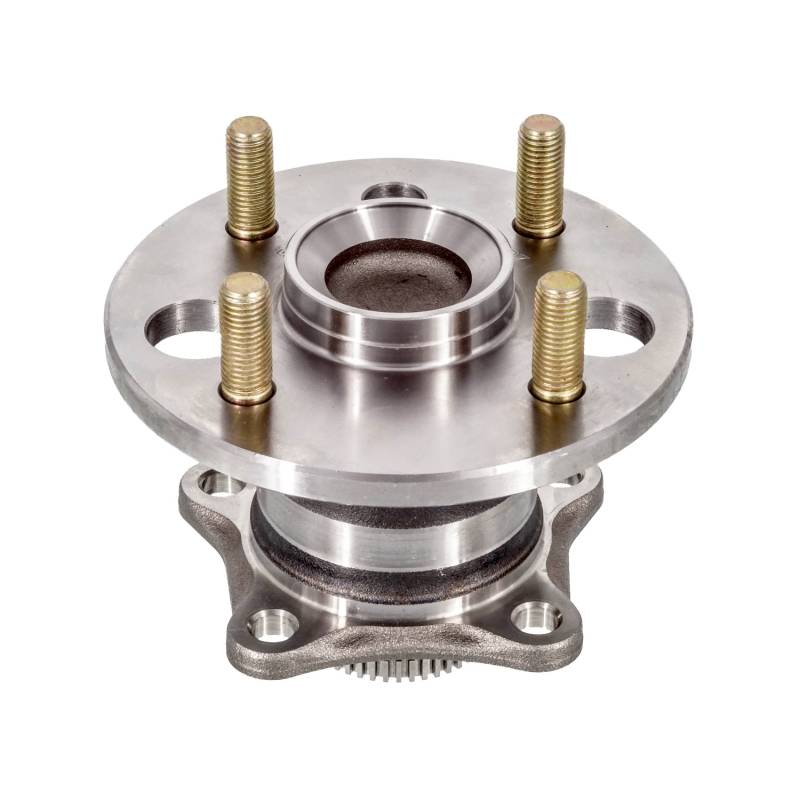

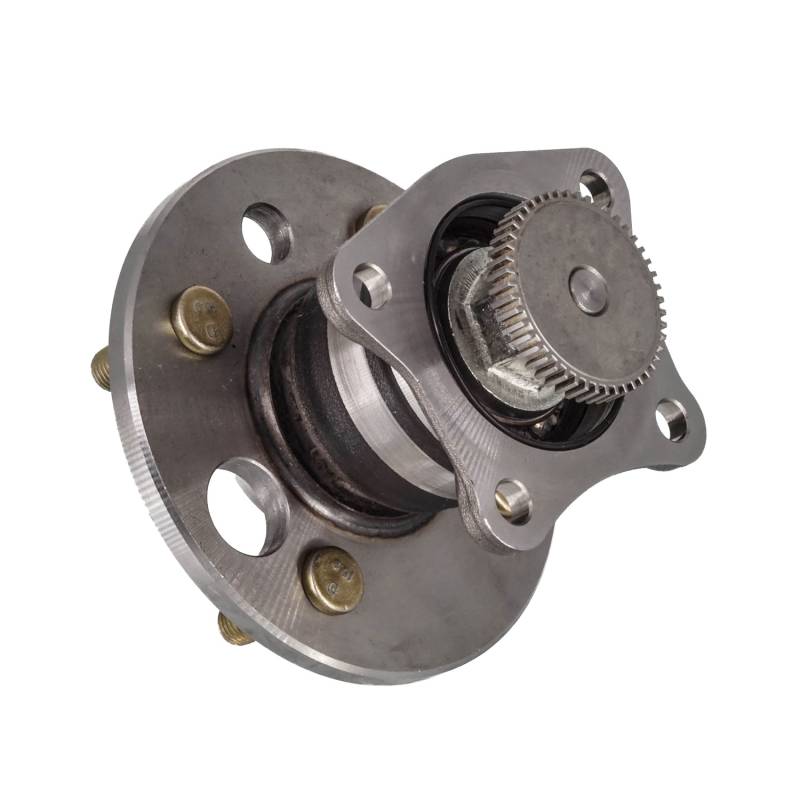

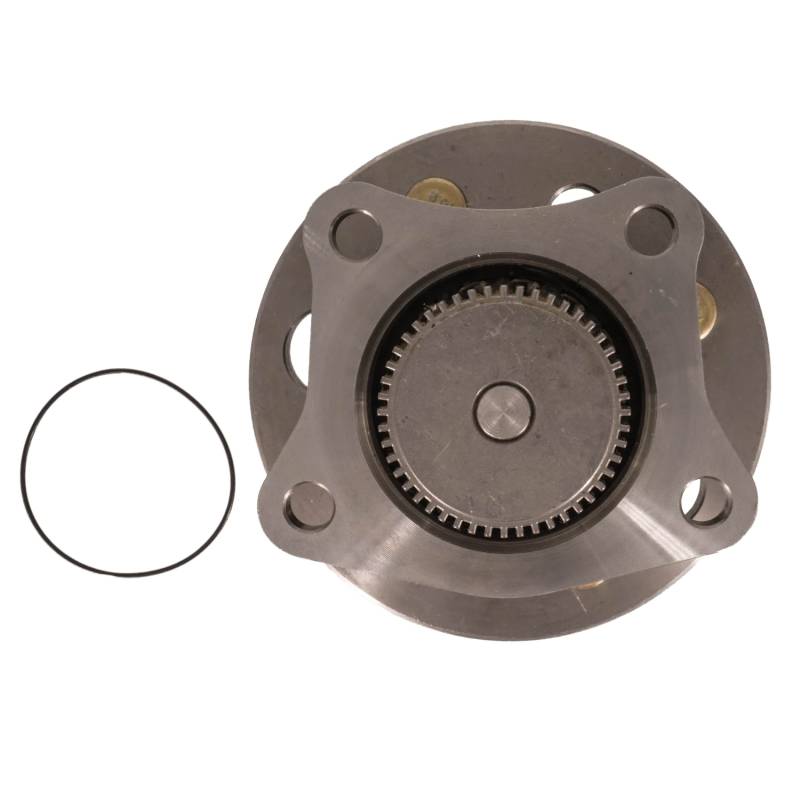

New Hub Assembly Compatible With Toyota Chevrolet Corolla Prizm 1.6L 1.8L 1996 1997 1998 1999 2000

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.01
ABS SENSOR RING DIAMETER (MM): 51
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.14
FLANGE BOLT SIZE (MM): 29
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.17
FLANGE OFFSET (INCH): 2.94
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.51
HUB PILOT DIAMETER (INCH): 2.4
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.51
TOTAL HUB DIAMETER (MM): 140
TOTAL HUB HEIGHT (IN): 4.91
TOTAL HUB HEIGHT (MM): 124
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-45836
BCA: WE61021
BECK/ARNLEY: 051-6096
CENTRIC PARTS: 40544014E
FAG US: 102316
GSP: 103184
MEVOTECH: H512184
MOOG HUB ASSEMBLIES: 512184
NAPA: PBR930436

APPLICATIONS:
TOYOTA COROLLA (1996-2002)
CHEVROLET PRIZM (1998-2002)
