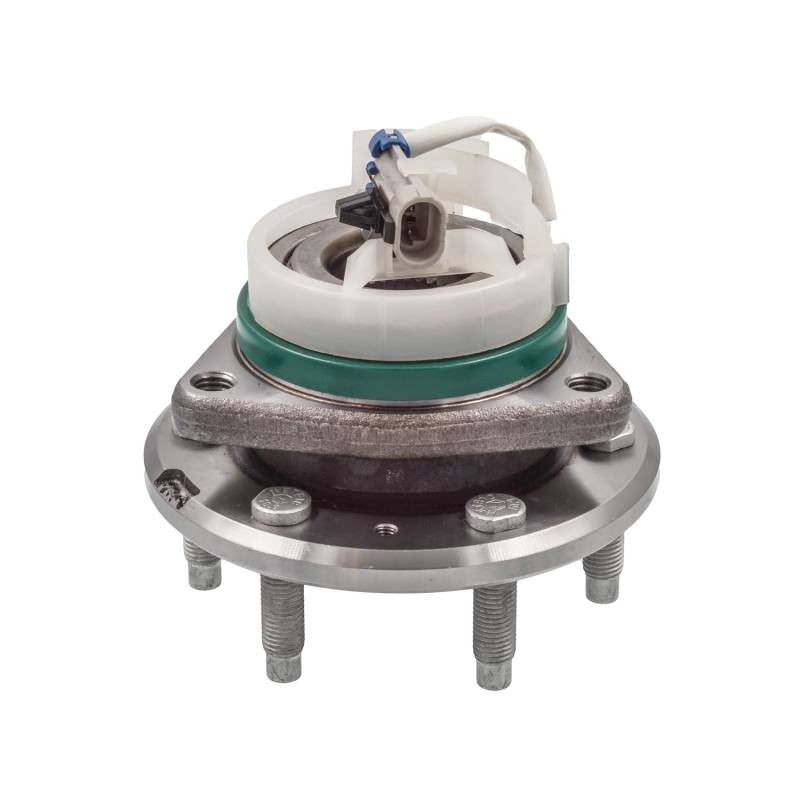

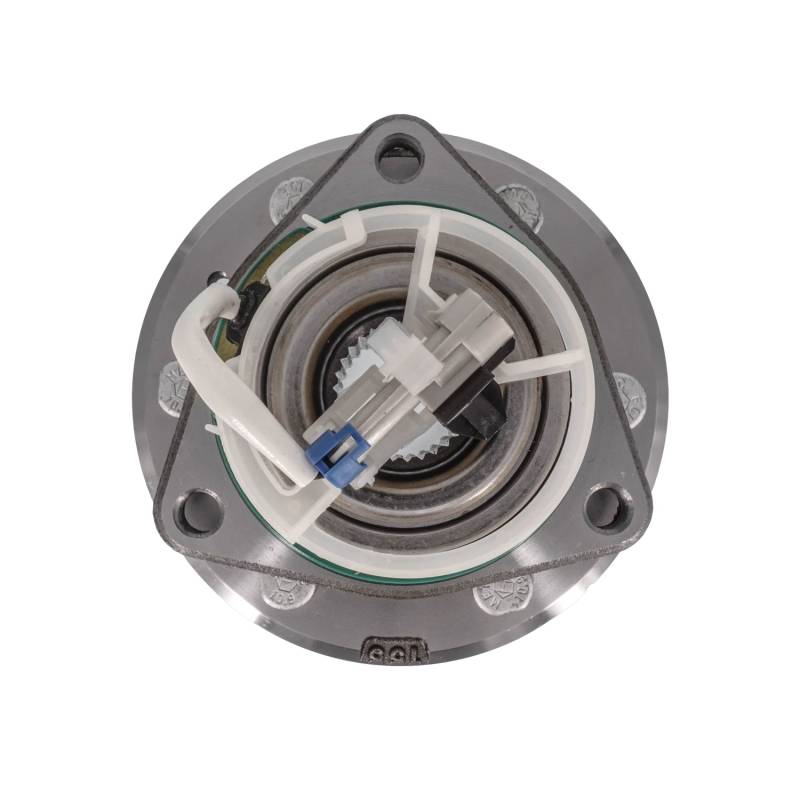

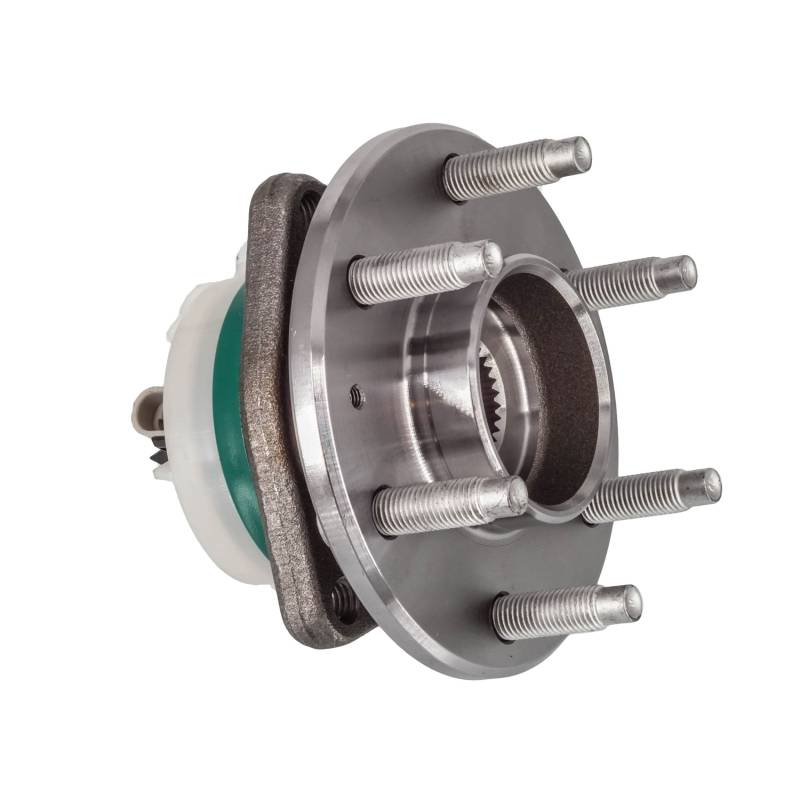

New Hub Assembly Compatible With Cadillac Srx 3.6L 4.6L 2004 2005 2006 2007 2008 2009 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.54
FLANGE BOLT SIZE (MM): 39
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.73
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.73
TOTAL HUB DIAMETER (MM): 145
TOTAL HUB HEIGHT (IN): 4.26
TOTAL HUB HEIGHT (MM): 108
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: 19390691 513198A FW149 FW150
AUTOPART INTERNATIONAL: 1411-49047
BCA: WE61441
CENTRIC PARTS: 40262009
FAG US: 102211
GENERAL MOTORS: 12413105 25998408
GSP: 104198
MEVOTECH: H513198
MOOG HUB ASSEMBLIES: 513198
NAPA: PBR930363

APPLICATIONS:
CADILLAC SRX (2004-2009)
