New Hub Assembly Compatible With Cadillac Sts 3.6L 4.4L 4.6L 2005 2006 2007 2008 2009 2010 2011 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

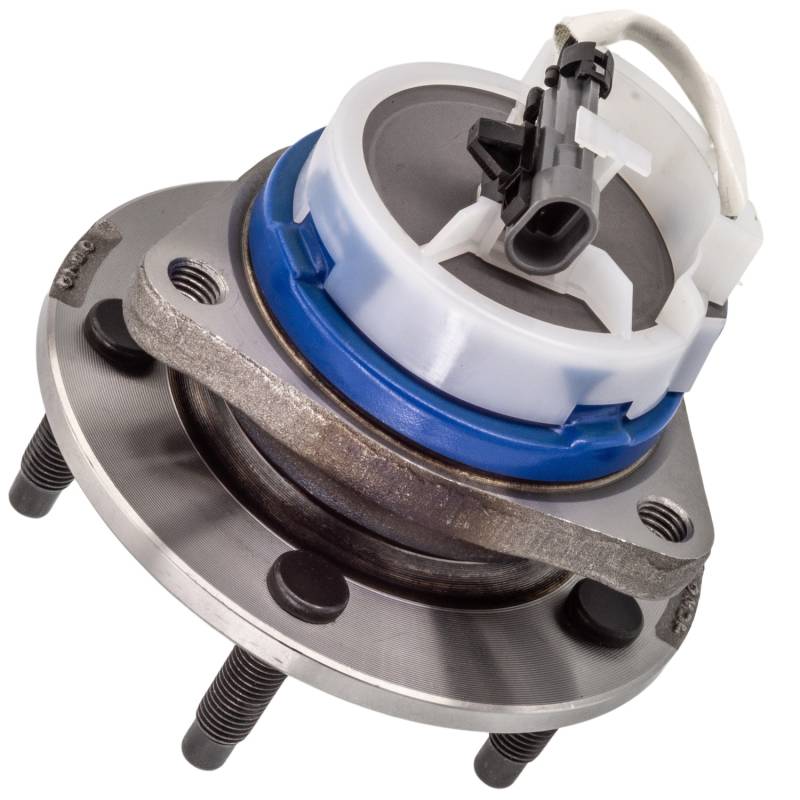

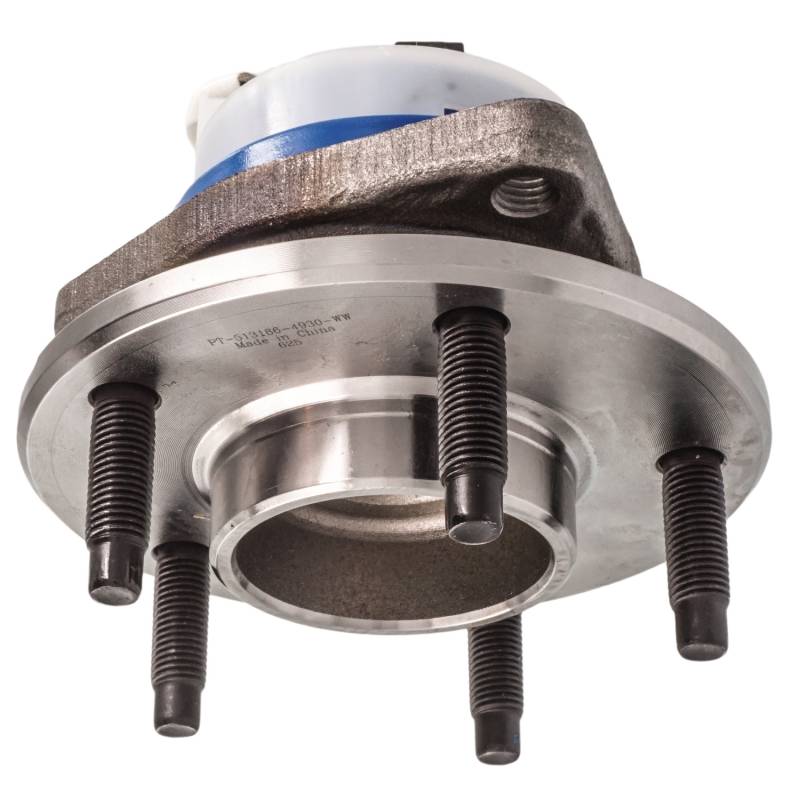

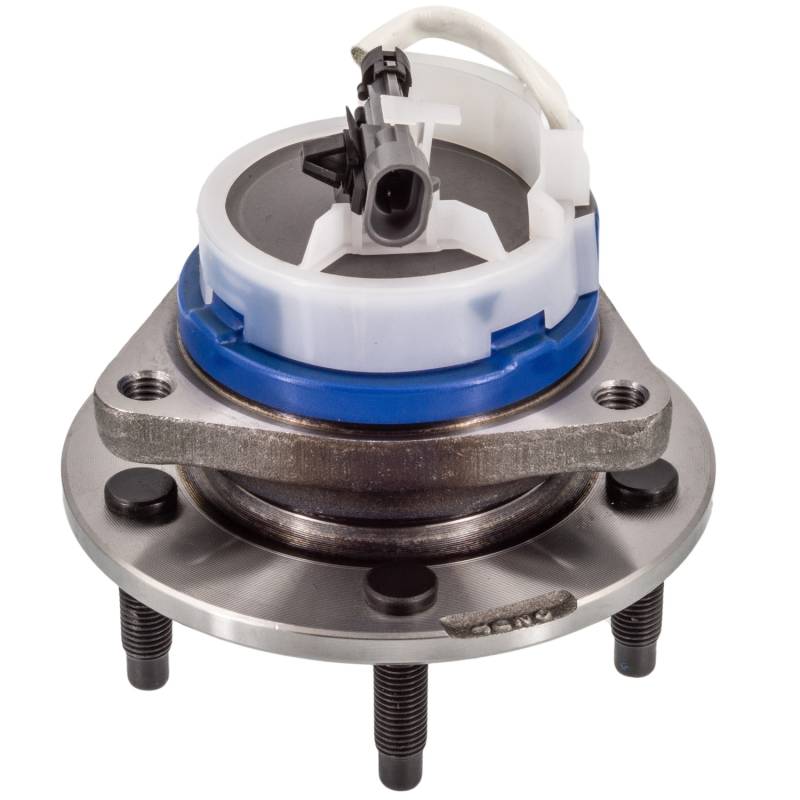

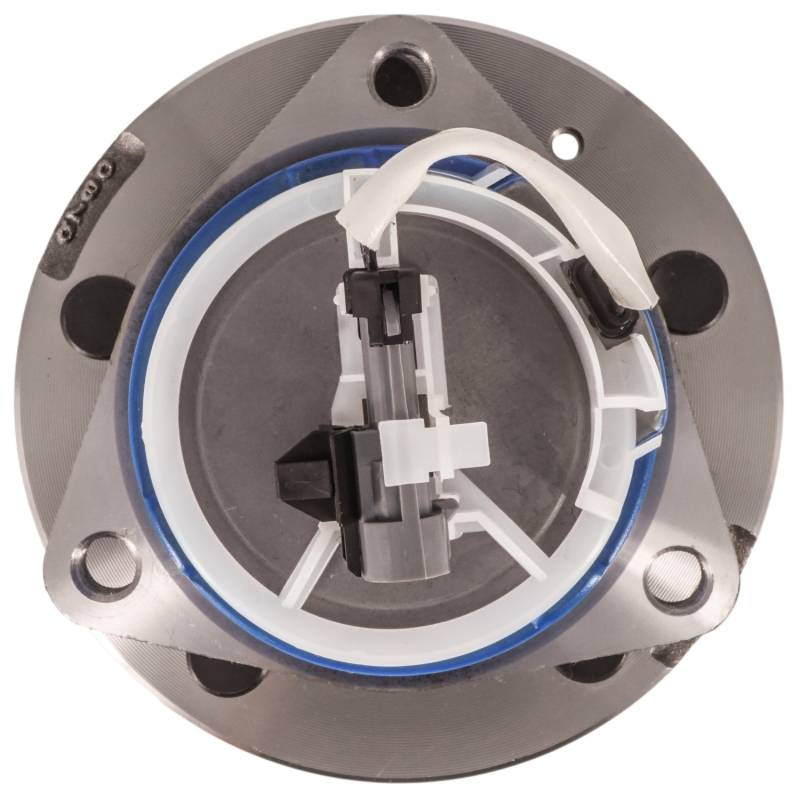

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

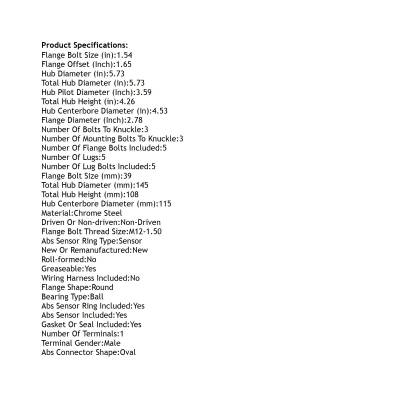

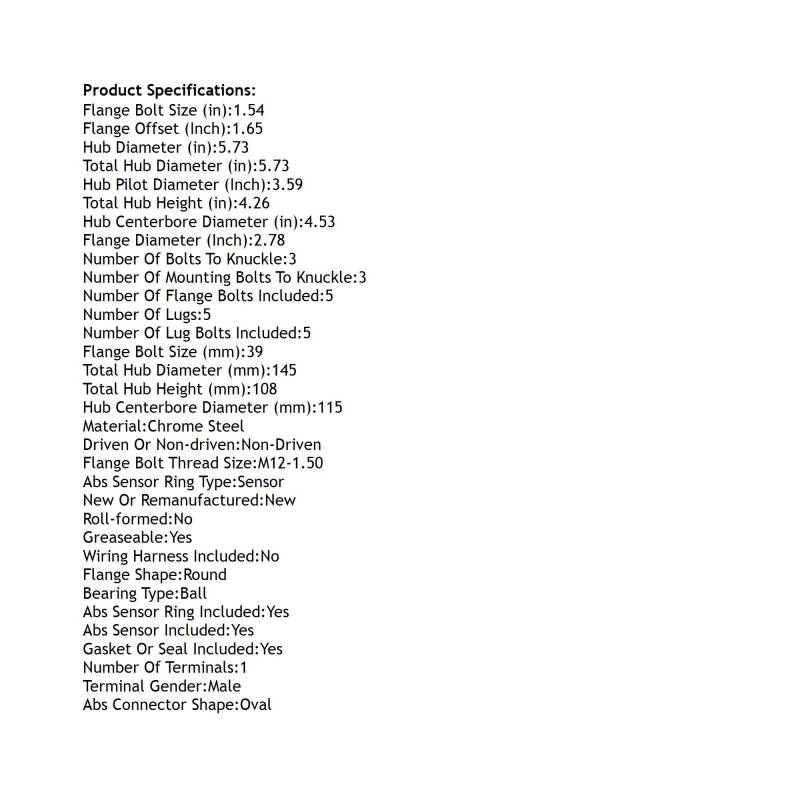

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.54
FLANGE BOLT SIZE (MM): 39
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.73
HUB PILOT DIAMETER (INCH): 3.59
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.73
TOTAL HUB DIAMETER (MM): 145
TOTAL HUB HEIGHT (IN): 4.26
TOTAL HUB HEIGHT (MM): 108
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513186
SKF: BR930298
TIMKEN: 513186
ACDELCO: FW129
AUTOPART INTERNATIONAL: 1411-246641
BCA: WE60900
CENTRIC PARTS: 40762004
GENERAL MOTORS: 12413071
GSP: 103246 104186
MEVOTECH: H512246
MOOG HUB ASSEMBLIES: 513186
NAPA: PBR930298

APPLICATIONS:
CADILLAC STS (2005-2011)
