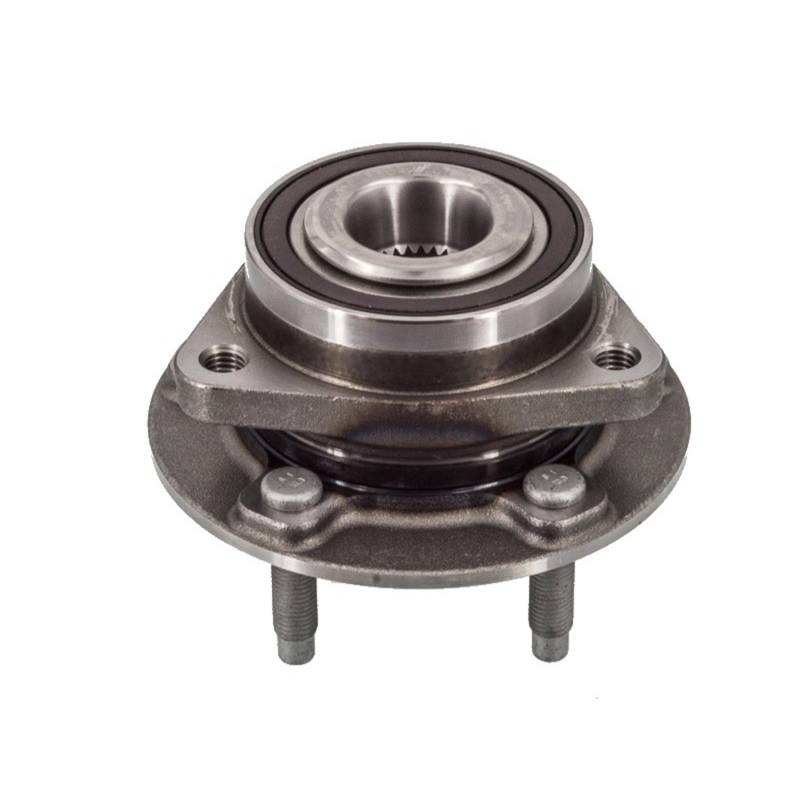

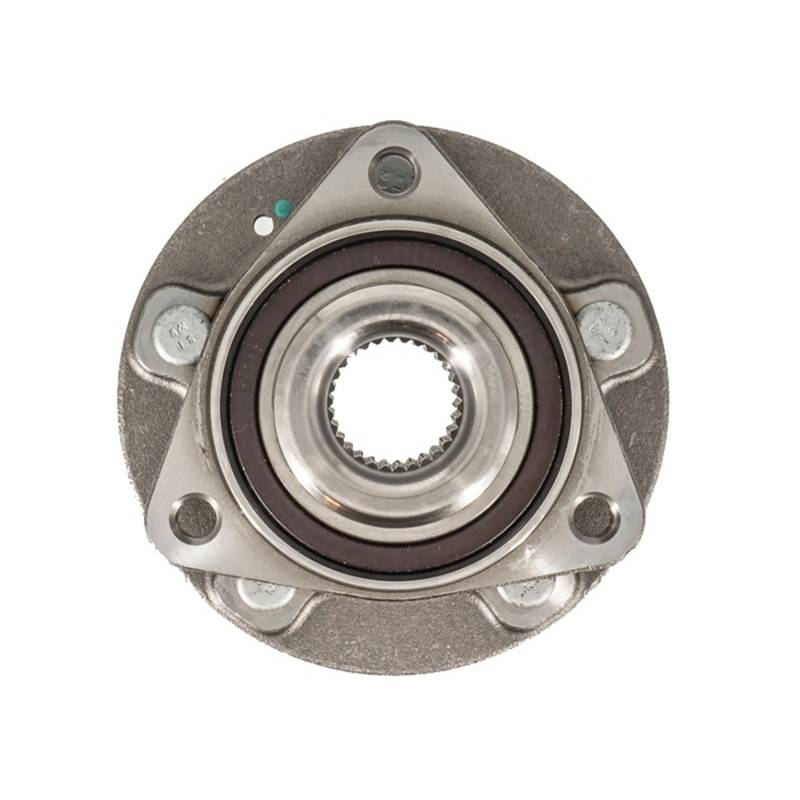

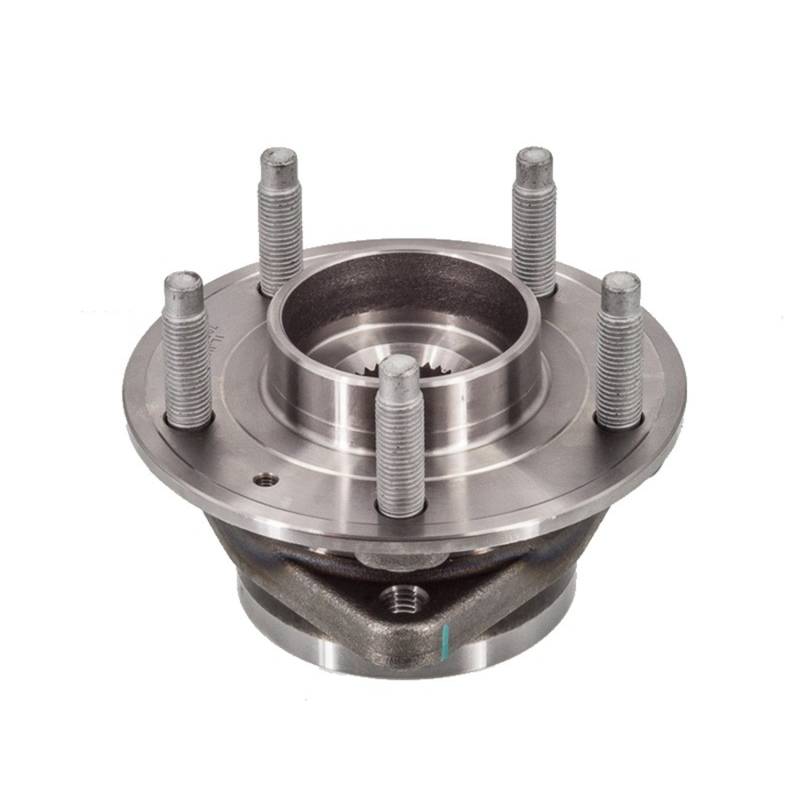

New Hub Assembly Compatible With Chevrolet Buick Cadillac Volt Verano Orlando Ats Elr Cruze Cascada

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

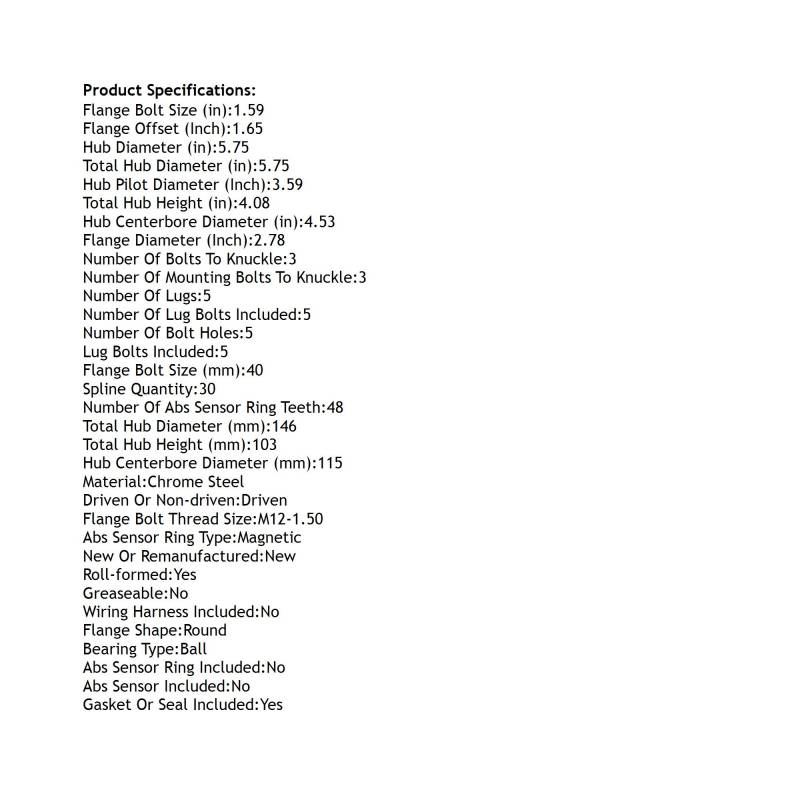

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.59
FLANGE BOLT SIZE (MM): 40
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.75
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 5.75
TOTAL HUB DIAMETER (MM): 146
TOTAL HUB HEIGHT (IN): 4.08
TOTAL HUB HEIGHT (MM): 103
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: 13546423 RW20-180 FW429 FW440 FW447 FW449
AUTOPART INTERNATIONAL: 1411-480970
BCA: WE61548
CENTRIC PARTS: 40162005
FAG US: 805984A
GENERAL MOTORS: 13507356
GSP: 104316
MEVOTECH: H513316
MOOG HUB ASSEMBLIES: 513316
NAPA: PBR930814 PBR930935

APPLICATIONS:
CHEVROLET VOLT (2011-2015)
BUICK VERANO (2012-2017)
CHEVROLET ORLANDO (2012-2014)
CADILLAC ATS (2013-2019)
CADILLAC ELR (2014-2016)
CHEVROLET CRUZE (2014-2015)
BUICK CASCADA (2016-2017)
