THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

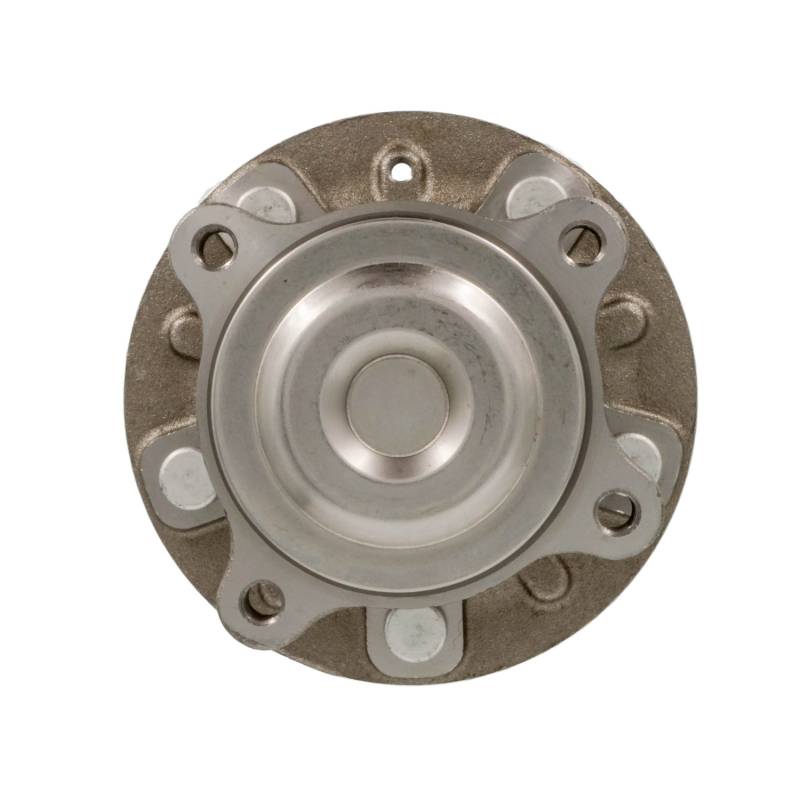

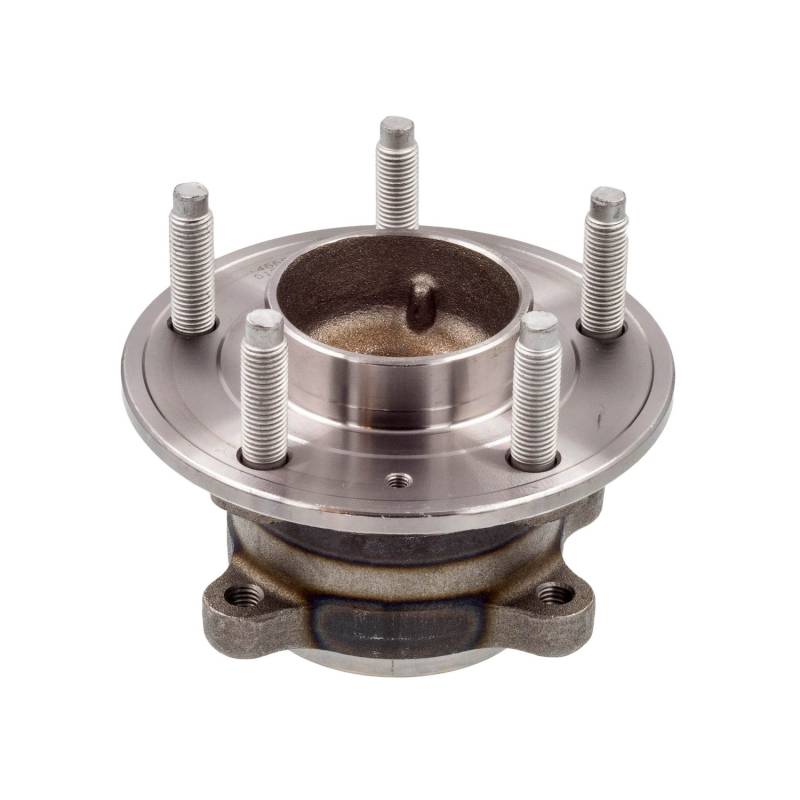

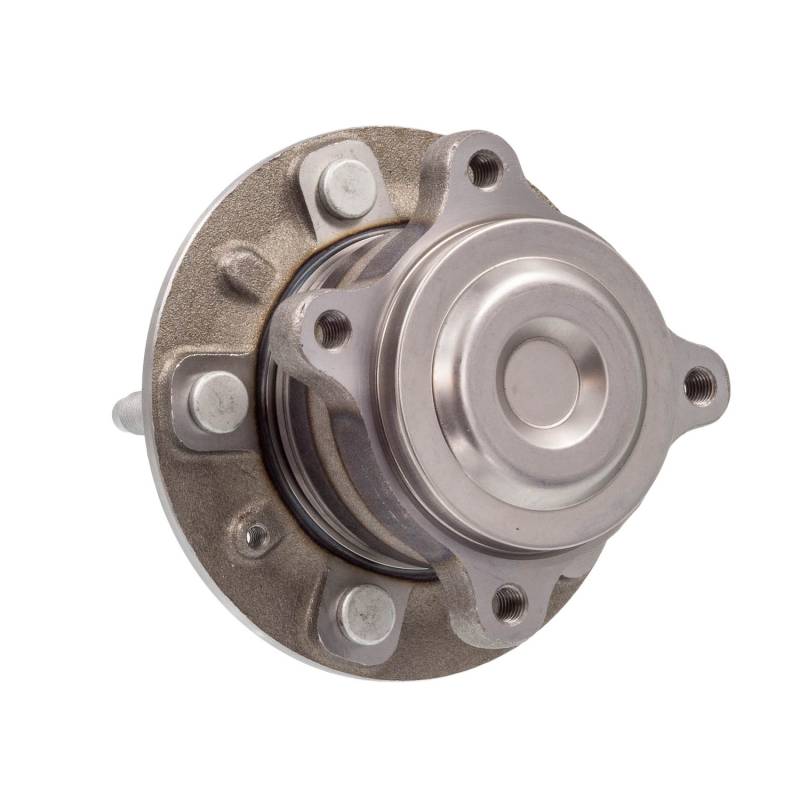

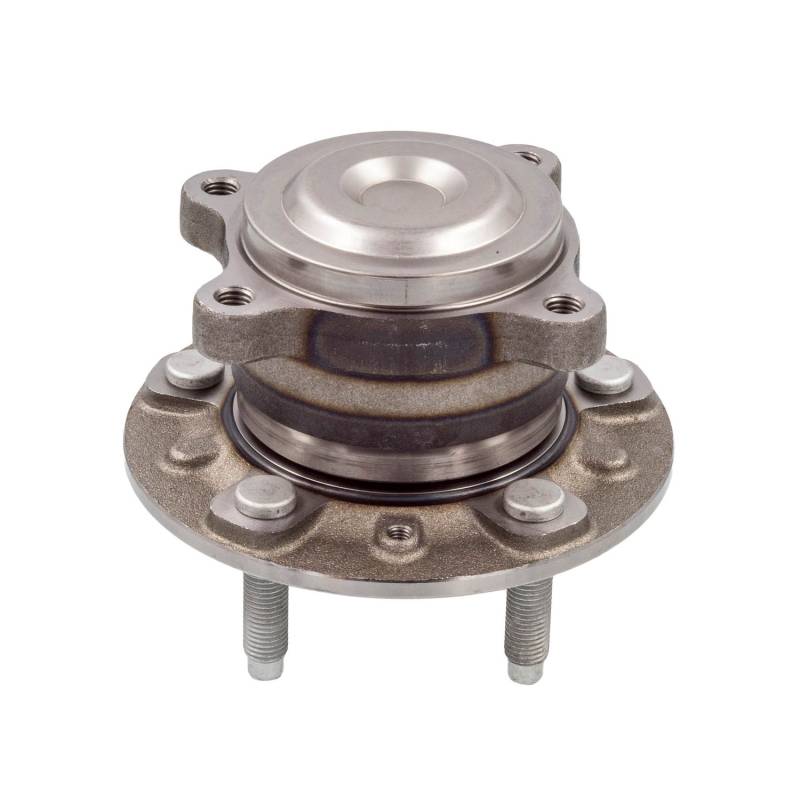

PRODUCT TYPE: HUB ASSEMBLY

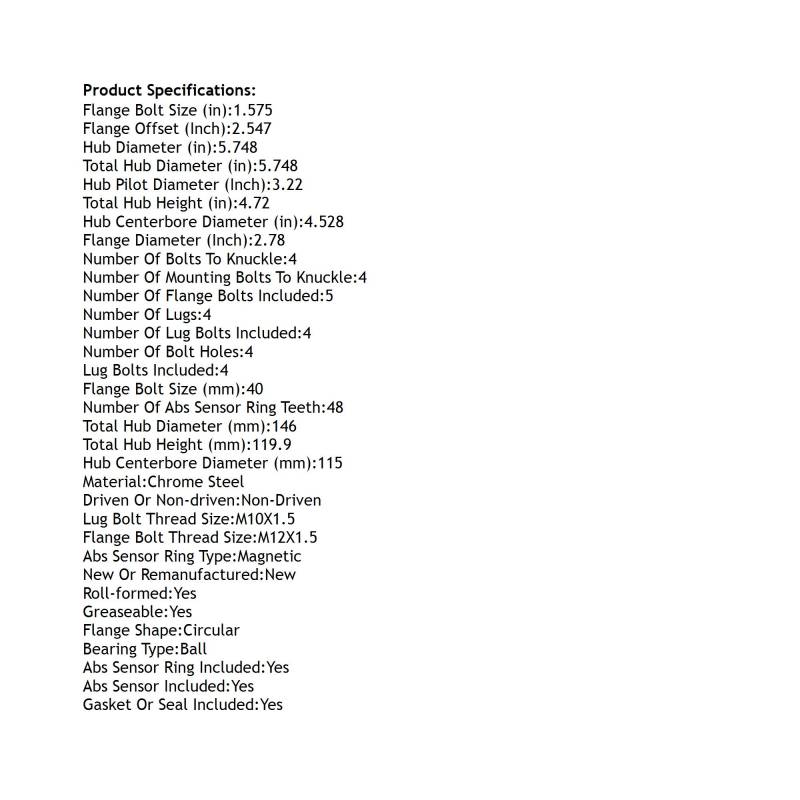

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.575
FLANGE BOLT SIZE (MM): 40
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.547
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.748
HUB PILOT DIAMETER (INCH): 3.22
LUG BOLT THREAD SIZE: M10X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.748
TOTAL HUB DIAMETER (MM): 146
TOTAL HUB HEIGHT (IN): 4.72
TOTAL HUB HEIGHT (MM): 119.9
REPLACES:
ACDELCO: RW20-157
AUTOPART INTERNATIONAL: 1411-540734
BCA: WE61493
CENTRIC PARTS: 40662004
FAG US: 103225
FVP: WH590490
GENERAL MOTORS: 13591999
GSP: 103447
MEVOTECH: MB50310
MOOG HUB ASSEMBLIES: 512508
NAPA: PBR930859
APPLICATIONS:
CHEVROLET VOLT (2013-2015)
BUICK VERANO (2014-2017)
CHEVROLET CRUZE (2014-2015)
