THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

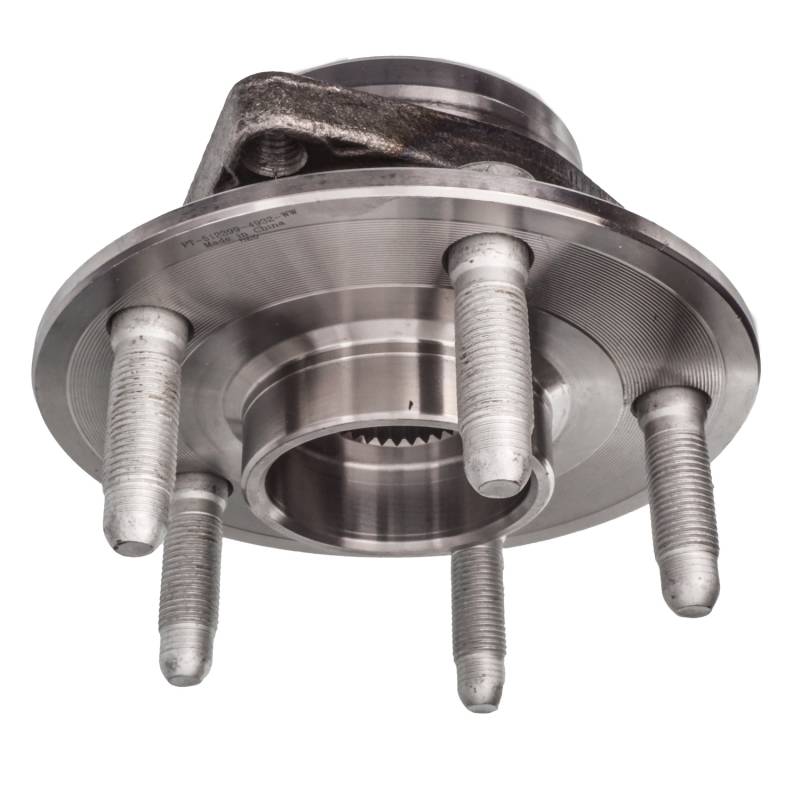

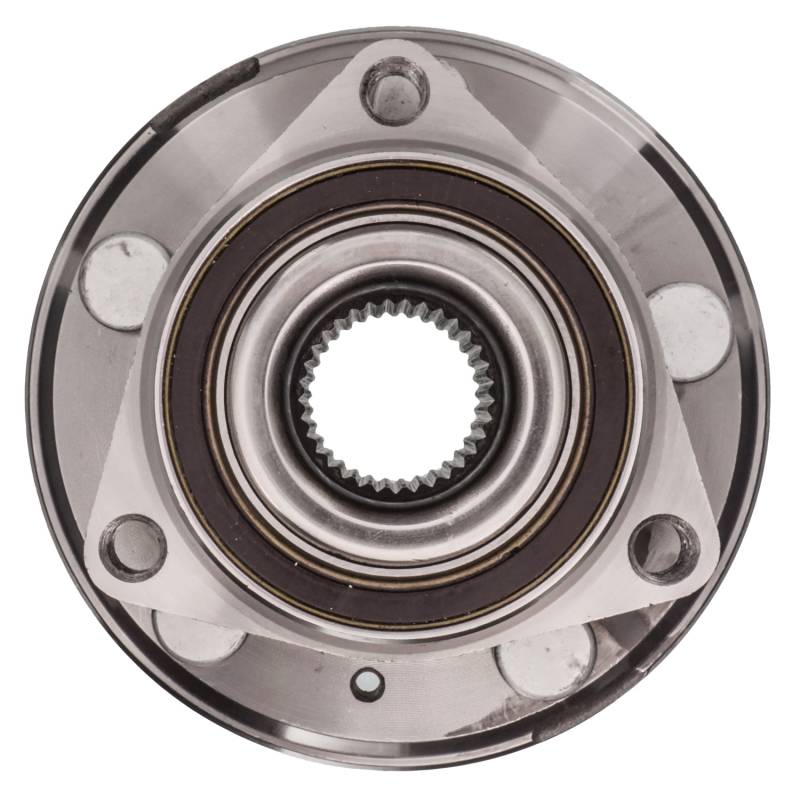

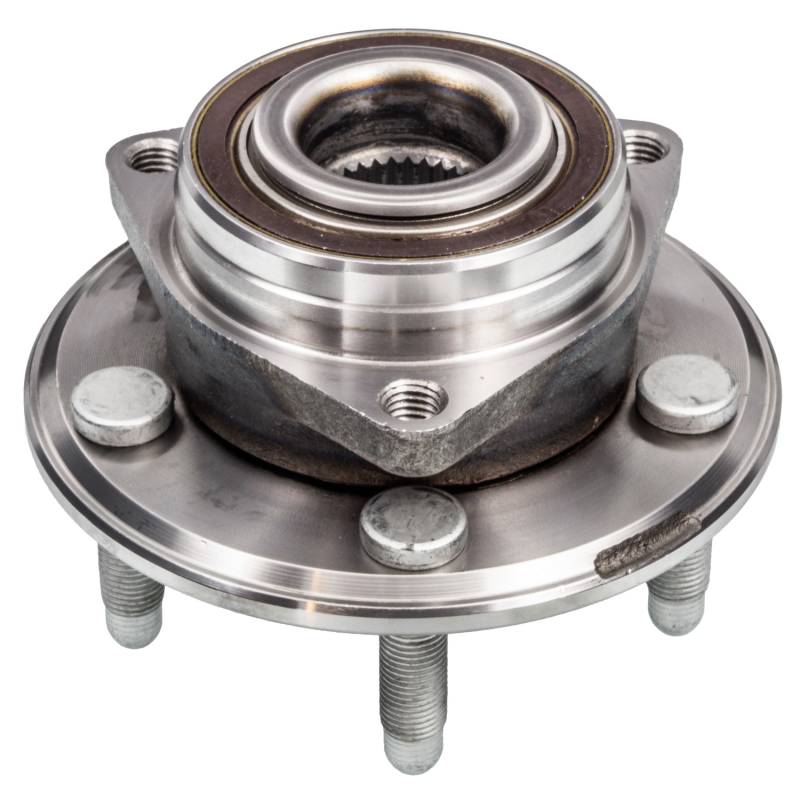

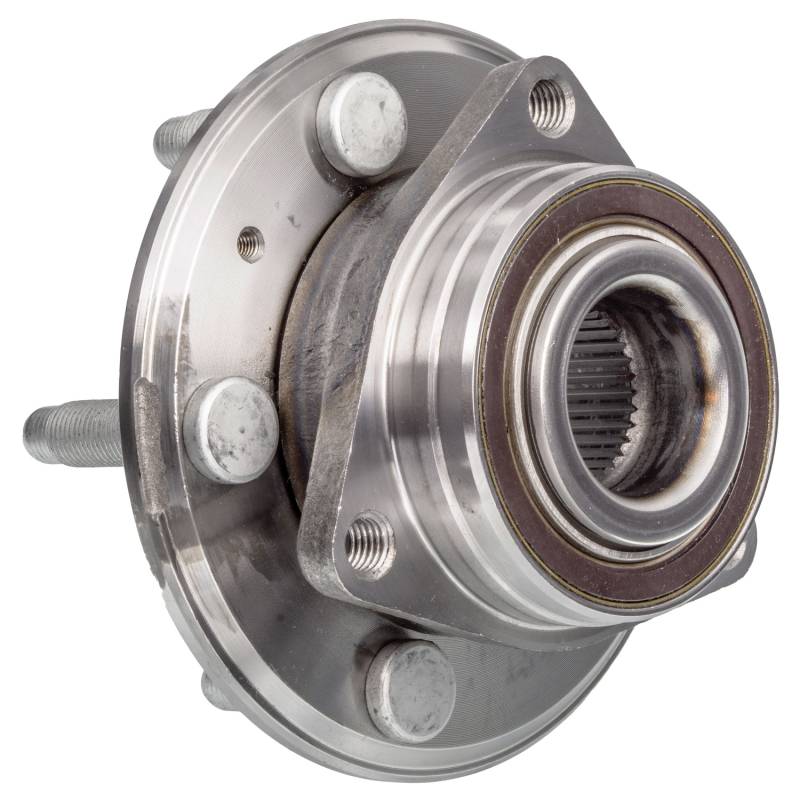

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE DIAMETER (INCH): 5.349
FLANGE OFFSET (INCH): 2.549
FLANGE SHAPE: SQUARE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.72
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLT THREAD SIZE: M12-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 6.457
TOTAL HUB HEIGHT (MM): 164
WIRING HARNESS INCLUDED: NO
REPLACES:
ACDELCO: RW20-163
AUTOPART INTERNATIONAL: 1411-423156
BCA: WE61618
CENTRIC PARTS: 40162002
FAG US: 102279
GENERAL MOTORS: 23216846
GSP: 103399
MEVOTECH: H512399
MOOG HUB ASSEMBLIES: 512399
NAPA: PBR930780
APPLICATIONS:
CHEVROLET CAMARO (2010-2015)
CADILLAC CTS (2015-2017)
