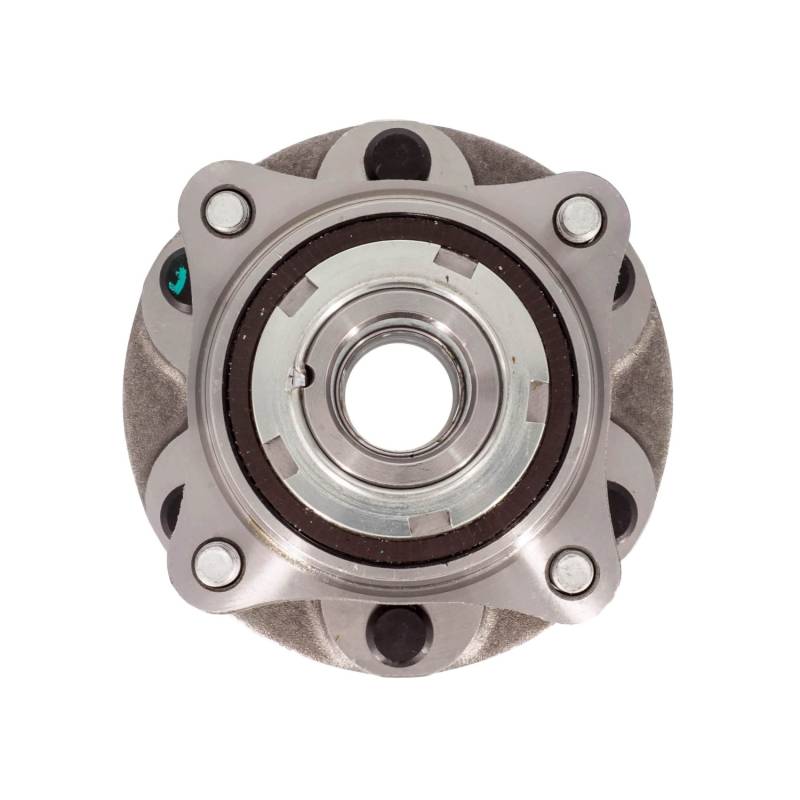

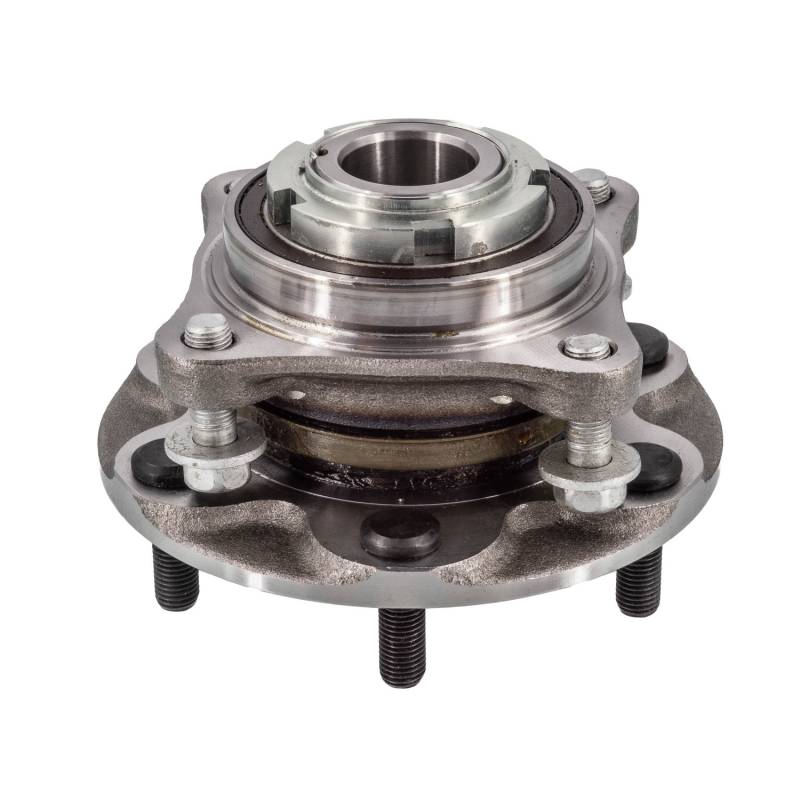

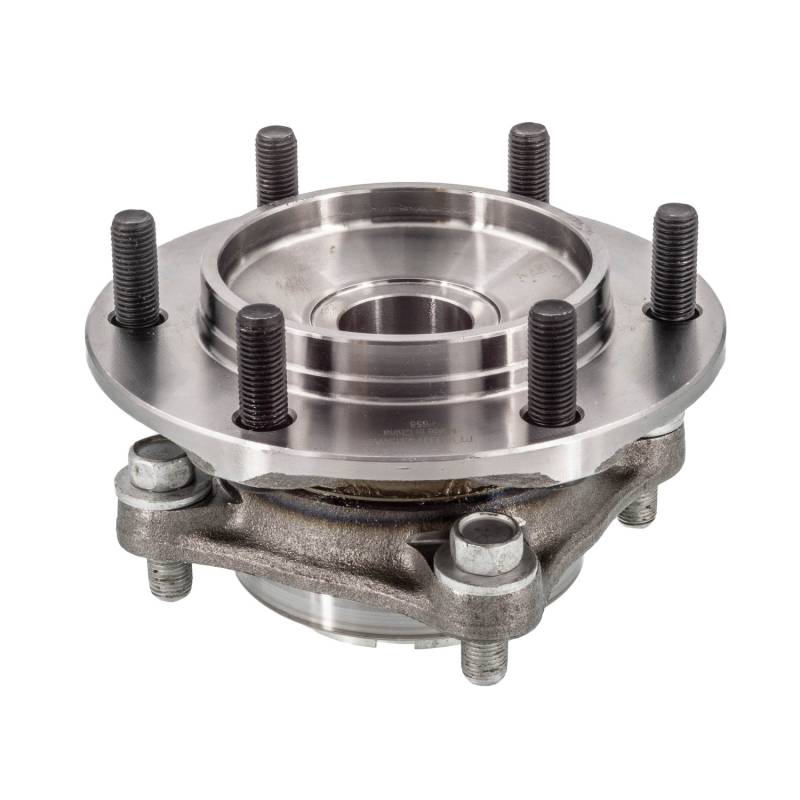

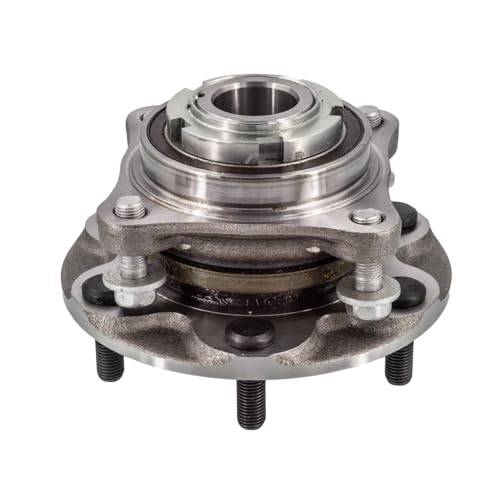

New Hub Assembly Compatible With Toyota 4Runner Tacoma Fj Cruiser 2.7L 4.0L 4.7L 2003-2023 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.465
ABS SENSOR RING DIAMETER (MM): 88
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.12
FLANGE BOLT SIZE (MM): 28
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 6.575
FLANGE OFFSET (INCH): 2.146
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 5.197
HUB CENTERBORE DIAMETER (MM): 132
HUB DIAMETER (IN): 3.78
HUB PILOT DIAMETER (INCH): 4.169
INNER RING WIDTH (IN): 2.007
LUG BOLT THREAD SIZE: M12-1.25
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
OUTER RING WIDTH (IN): 1.004
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 3.78
TOTAL HUB DIAMETER (MM): 96
TOTAL HUB HEIGHT (IN): 4.429
TOTAL HUB HEIGHT (MM): 112
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-640292
GSP: 361001PA
MOOG HUB ASSEMBLIES: 515203
NAPA: PBR930980 PBR953004

APPLICATIONS:
TOYOTA 4RUNNER (2003-2023)
TOYOTA TACOMA (2005-2015)
TOYOTA FJ CRUISER (2007-2014)
