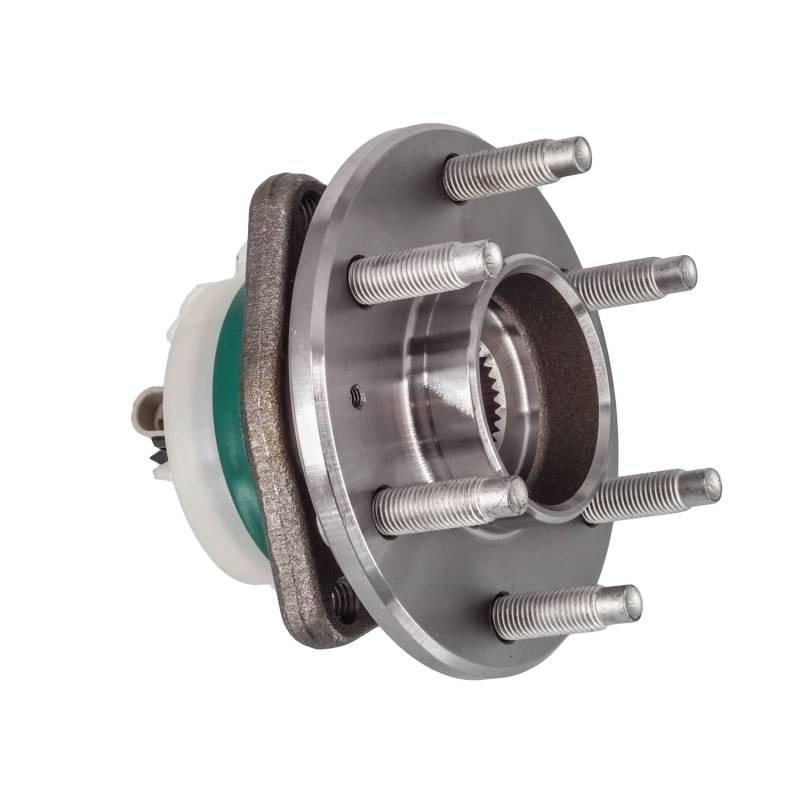

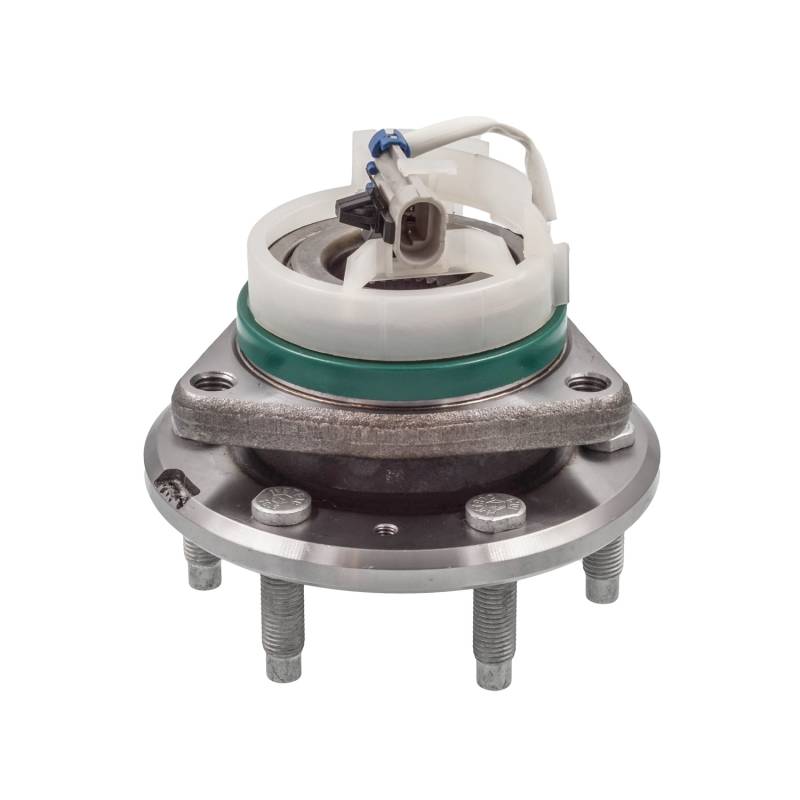

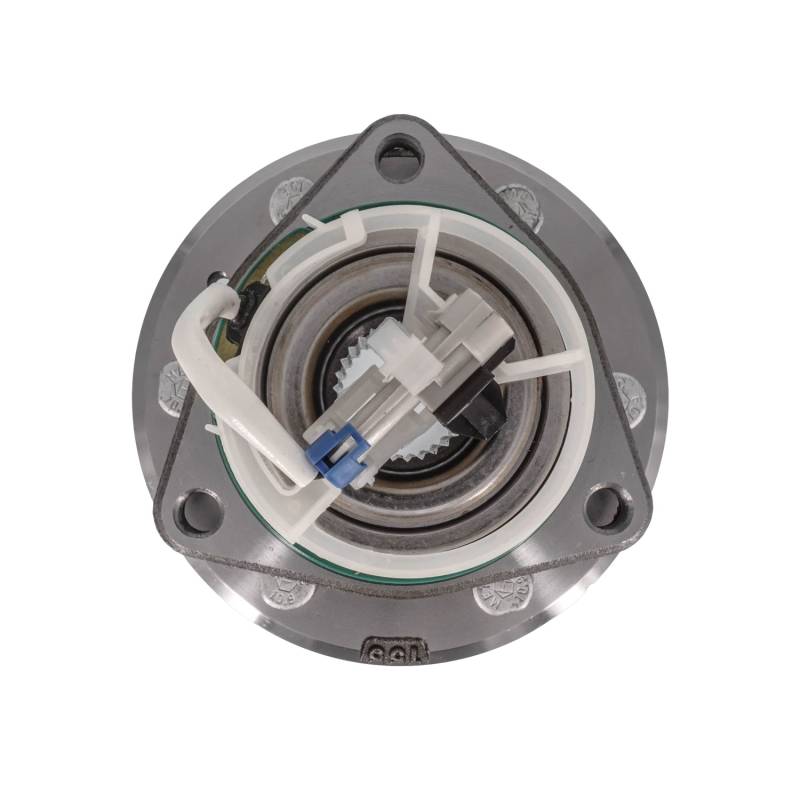

New Hub Assembly Compatible With Cadillac Sts 4.4L 2006 2007 2008 2009 By Part Numbers Br930539

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

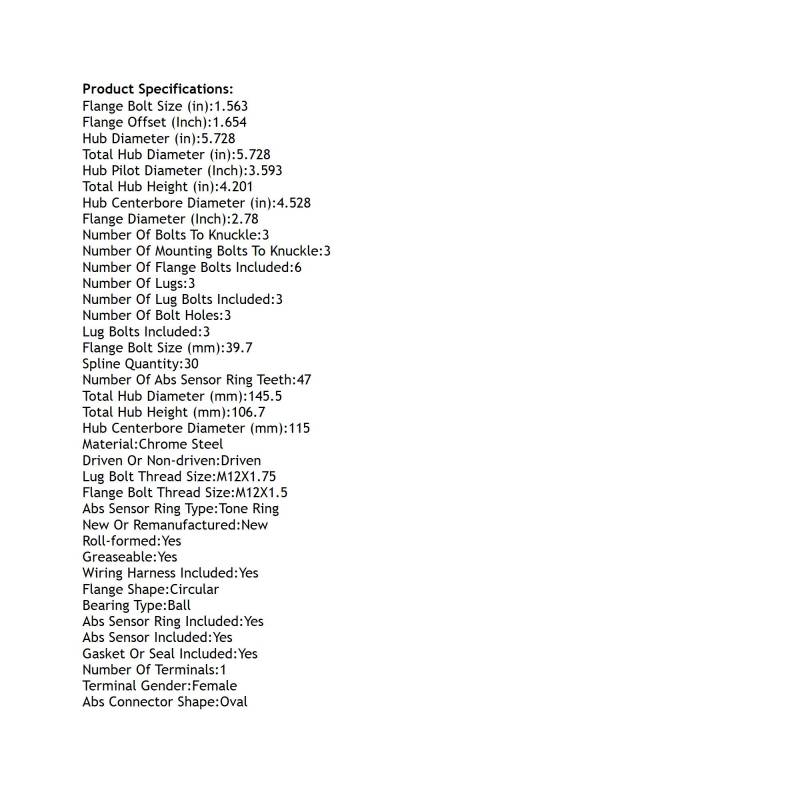

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.563
FLANGE BOLT SIZE (MM): 39.7
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.728
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.728
TOTAL HUB DIAMETER (MM): 145.5
TOTAL HUB HEIGHT (IN): 4.201
TOTAL HUB HEIGHT (MM): 106.7
WIRING HARNESS INCLUDED: YES

REPLACES:
ACDELCO: RW20-101
AUTOPART INTERNATIONAL: 1411-425116
BCA: WE61616
CENTRIC PARTS: 40262008
FAG US: 102276
GENERAL MOTORS: 15819433 15889807
GSP: 103359
MEVOTECH: H512359
MOOG HUB ASSEMBLIES: 512359
NAPA: PBR930539

APPLICATIONS:
CADILLAC STS (2006-2009)
