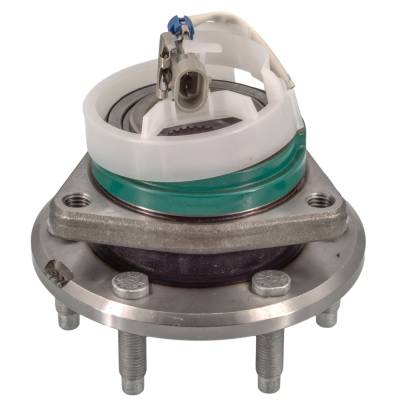

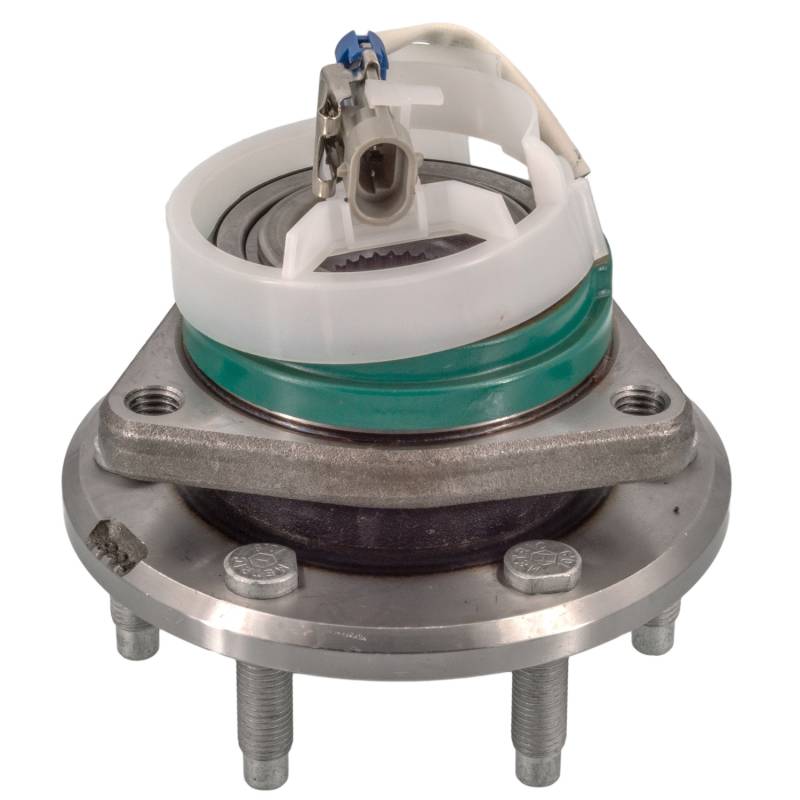

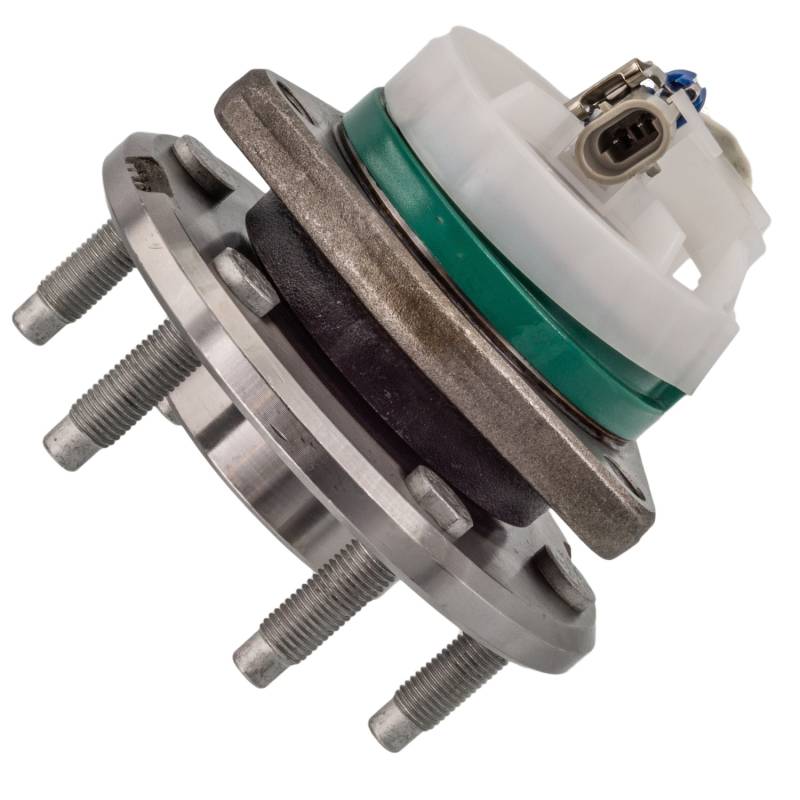

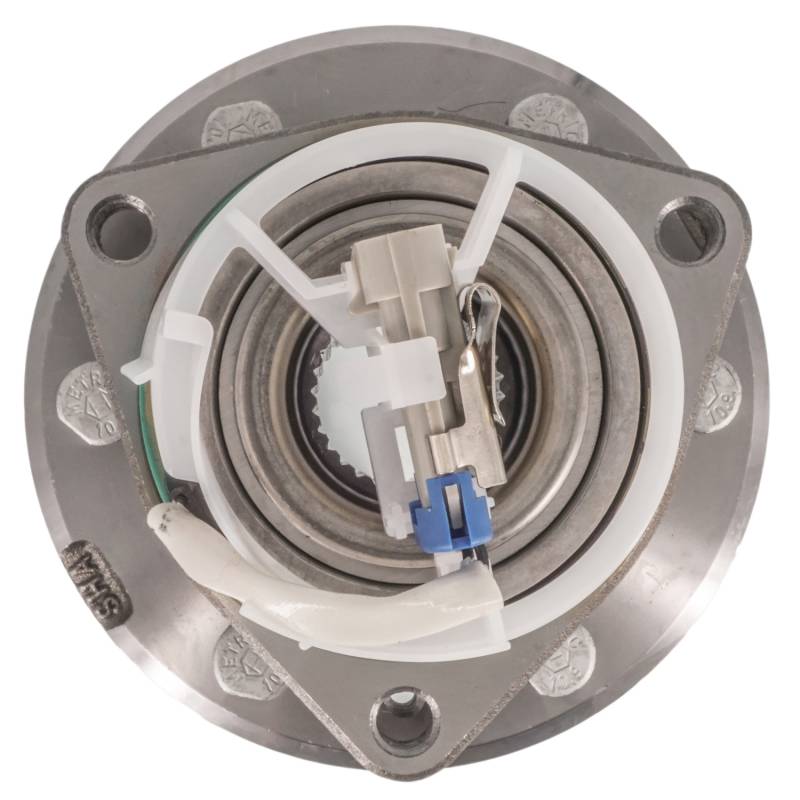

New Hub Assembly Compatible With Cadillac Sts 4.4L 2006 2007 2008 2009 By Part Numbers Br930537

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.571
FLANGE BOLT SIZE (MM): 39.9
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.709
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.709
TOTAL HUB DIAMETER (MM): 145
TOTAL HUB HEIGHT (IN): 4.209
TOTAL HUB HEIGHT (MM): 106.9
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 2.874

REPLACES:
ACDELCO: FW328
AUTOPART INTERNATIONAL: 1411-425115
BCA: WE61624
CENTRIC PARTS: 40762017E 40762017
FAG US: 102227
GSP: 104279
MEVOTECH: H513279
MOOG HUB ASSEMBLIES: 513279
NAPA: PBR930537

APPLICATIONS:
CADILLAC STS (2006-2009)
