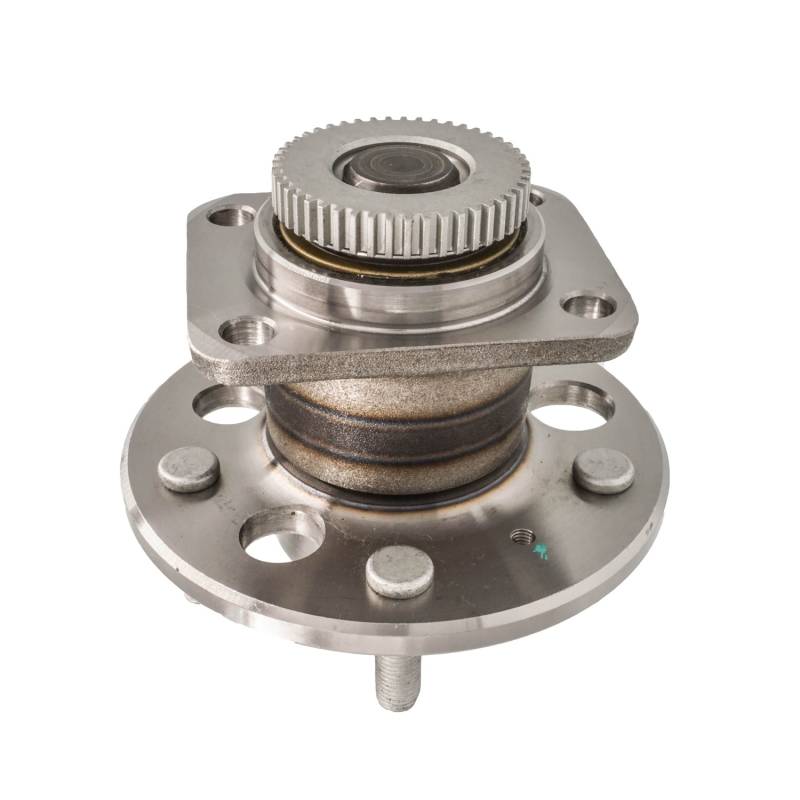

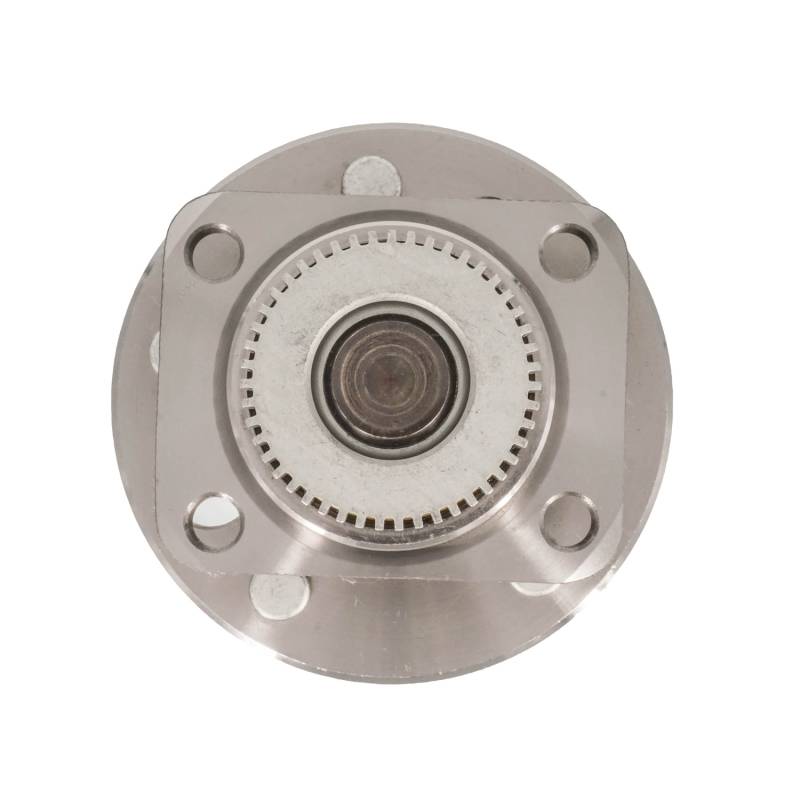

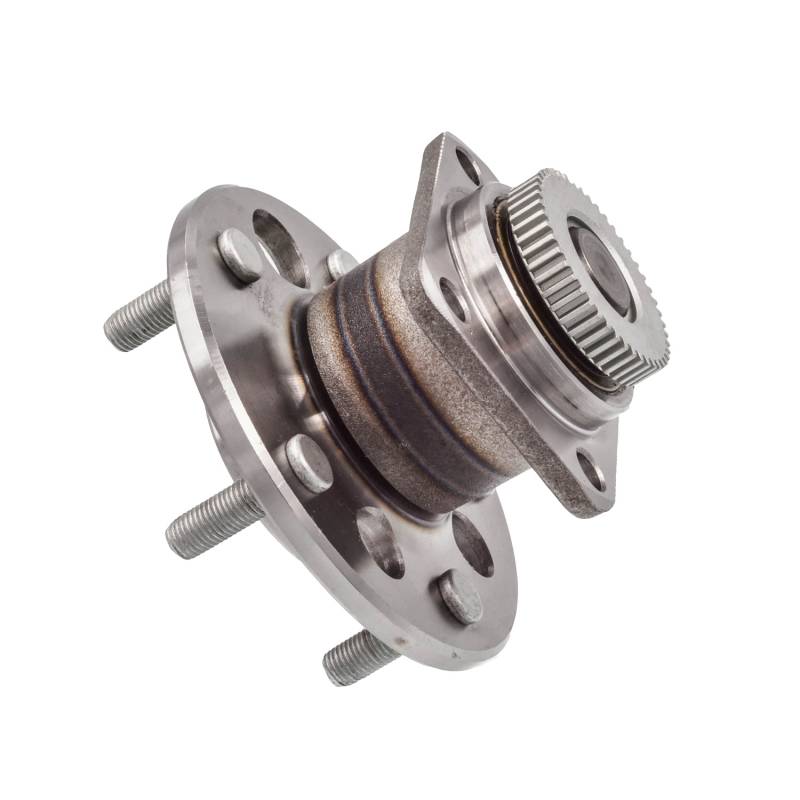

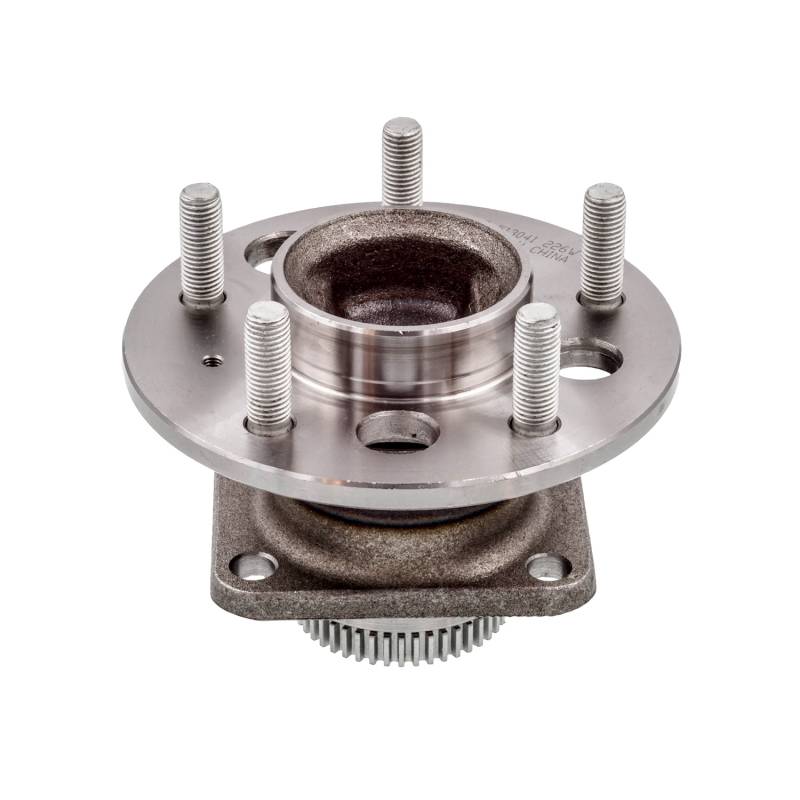

New Hub Assembly Compatible With Cadillac Oldsmobile Buick Pontiac 1986 1987 1988 1989 1990 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

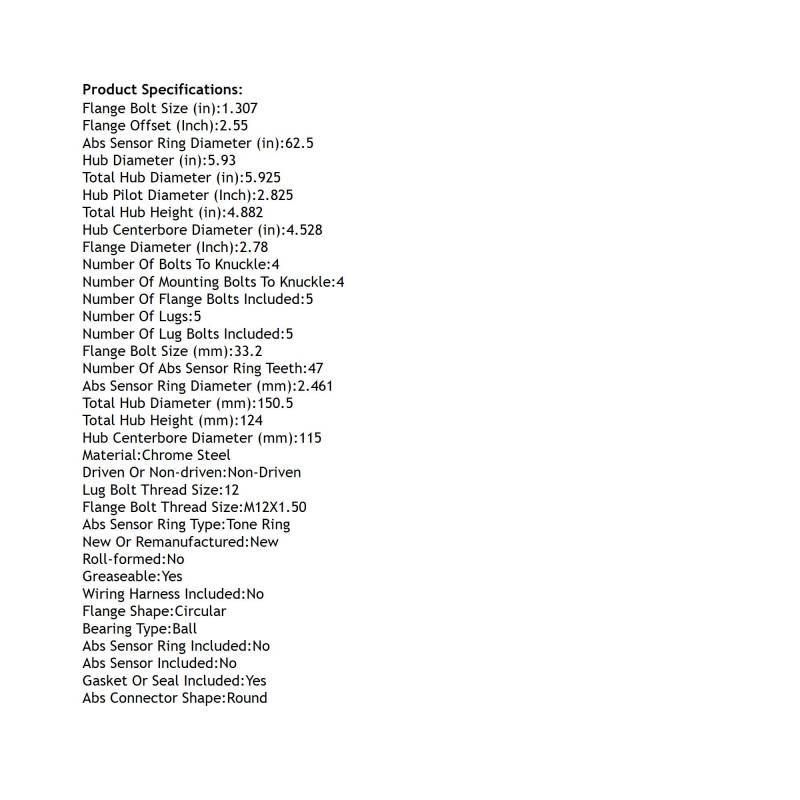

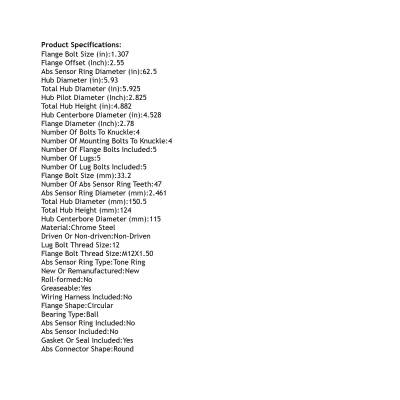

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (IN): 62.5
ABS SENSOR RING DIAMETER (MM): 2.461
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.307
FLANGE BOLT SIZE (MM): 33.2
FLANGE BOLT THREAD SIZE: M12X1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.55
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.93
HUB PILOT DIAMETER (INCH): 2.825
LUG BOLT THREAD SIZE: 12
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5

REPLACES:
AUTOPART INTERNATIONAL: 1411-04725
BCA: WE61501
CENTRIC PARTS: 40662000
FAG US: 102287
GSP: 104041
MEVOTECH: H513041
MOOG HUB ASSEMBLIES: 513041
NAPA: PBR930049

APPLICATIONS:
CADILLAC FLEETWOOD (1986-1990)
OLDSMOBILE 98 (1986-1990)
BUICK ELECTRA (1987-1990)
CADILLAC ALLANTE (1987-1990)
CADILLAC COMMERCIAL CHASSIS (1987-1990)
CADILLAC DEVILLE (1987-1990)
BUICK LESABRE (1988-1990)
BUICK REATTA (1988-1990)
BUICK RIVIERA (1988-1990)
CADILLAC ELDORADO (1988-1990)
CADILLAC SEVILLE (1988-1990)
OLDSMOBILE DELTA 88 (1988-1990)
OLDSMOBILE TORONADO (1988-1990)
PONTIAC BONNEVILLE (1988-1990)
