THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.
PRODUCT TYPE: HUB ASSEMBLY

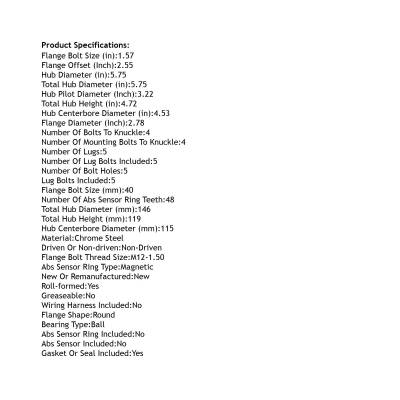

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.57
FLANGE BOLT SIZE (MM): 40
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.55
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.75
HUB PILOT DIAMETER (INCH): 3.22
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.75
TOTAL HUB DIAMETER (MM): 146
TOTAL HUB HEIGHT (IN): 4.72
TOTAL HUB HEIGHT (MM): 119
WIRING HARNESS INCLUDED: NO
REPLACES:
ACDELCO: 13591999 RW20-157
AUTOPART INTERNATIONAL: 1411-639465
BCA: WE61493
CENTRIC PARTS: 40662004
MOOG HUB ASSEMBLIES: 512581
APPLICATIONS:
CHEVROLET VOLT (2011-2012)
BUICK VERANO (2012-2013)
BUICK CASCADA (2016-2019)
