THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

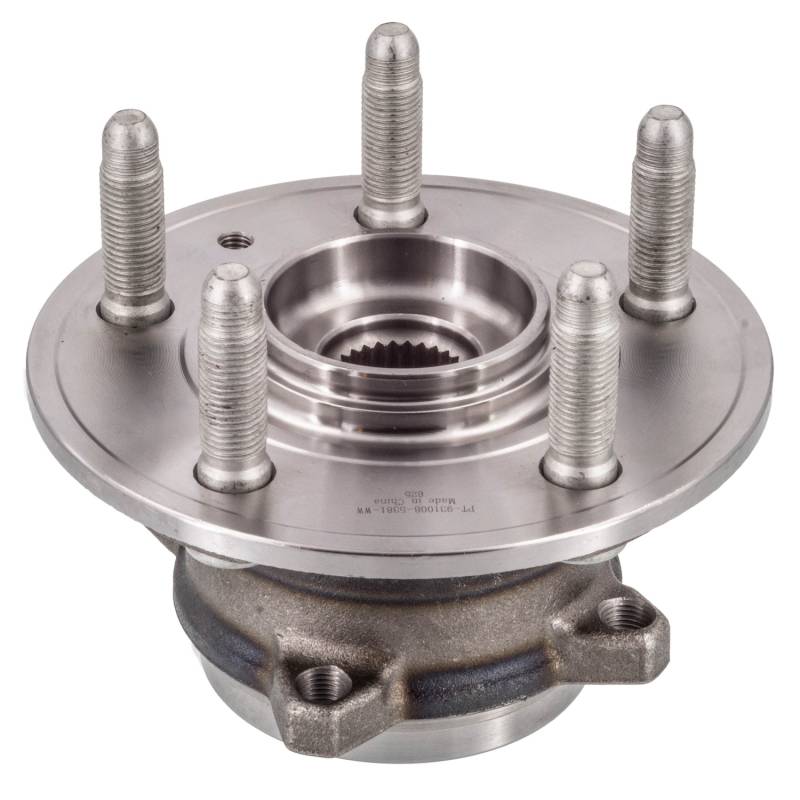

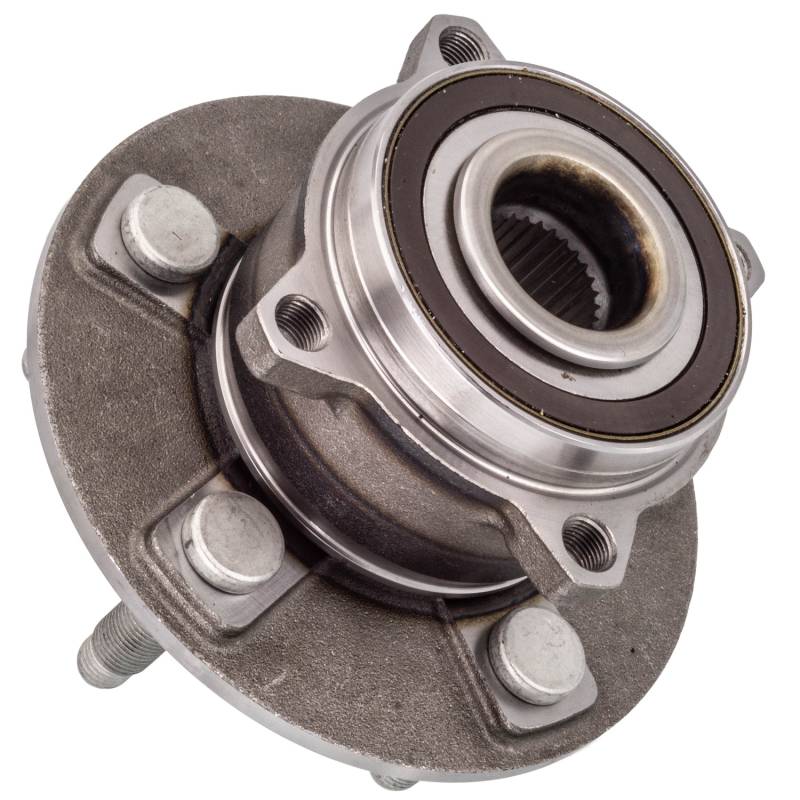

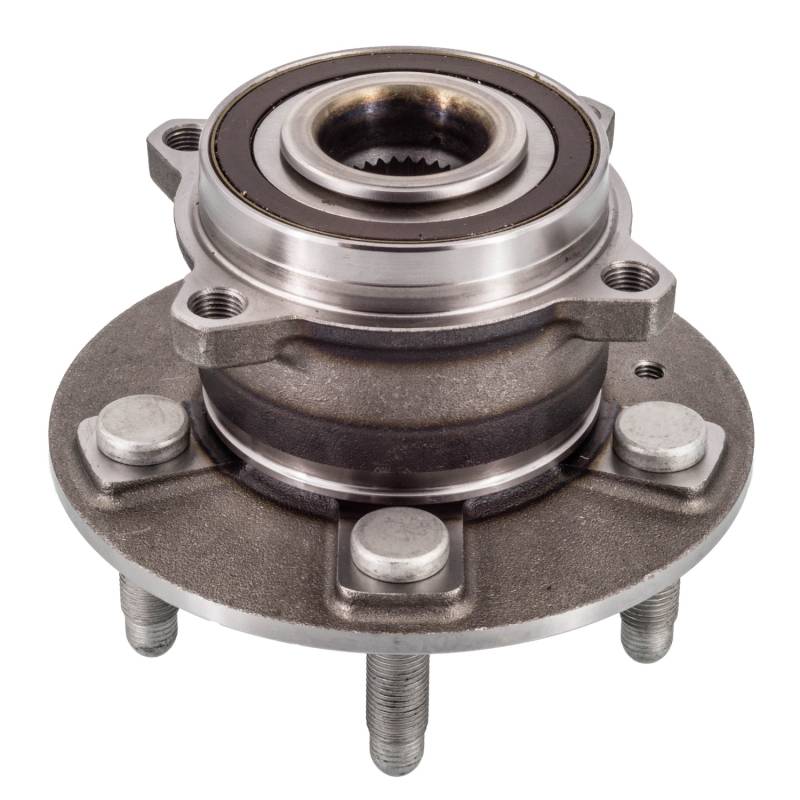

PRODUCT TYPE: HUB ASSEMBLY

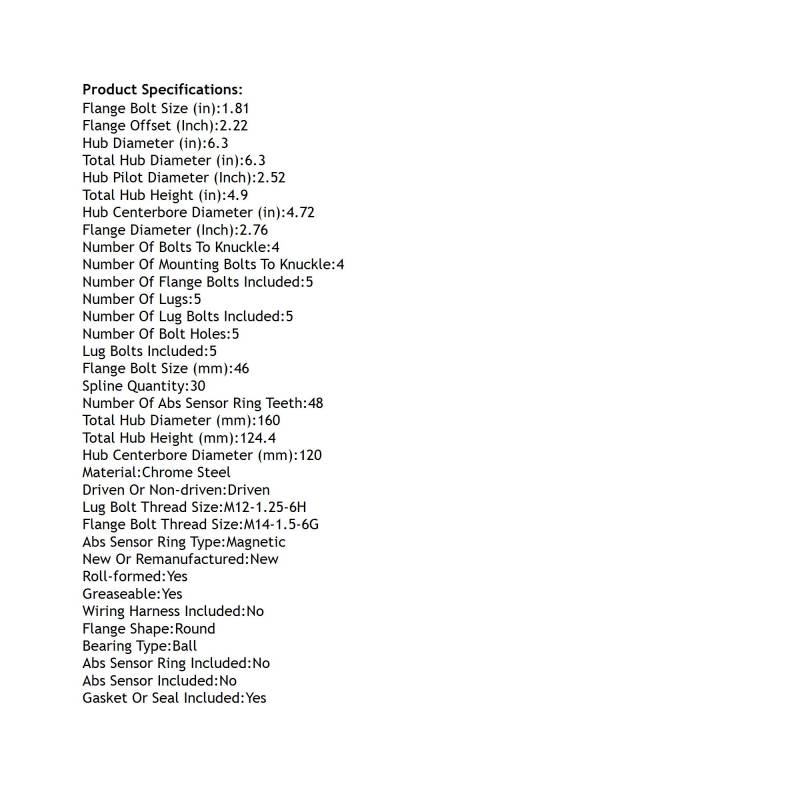

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.81
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14-1.5-6G
FLANGE DIAMETER (INCH): 2.76
FLANGE OFFSET (INCH): 2.22
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.72
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.3
HUB PILOT DIAMETER (INCH): 2.52
LUG BOLT THREAD SIZE: M12-1.25-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 6.3
TOTAL HUB DIAMETER (MM): 160
TOTAL HUB HEIGHT (IN): 4.9
TOTAL HUB HEIGHT (MM): 124.4
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-658655
GSP: 990050
NAPA: PBR931008
APPLICATIONS:
TESLA S (2012-2024)
TESLA X (2016-2024)
