THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

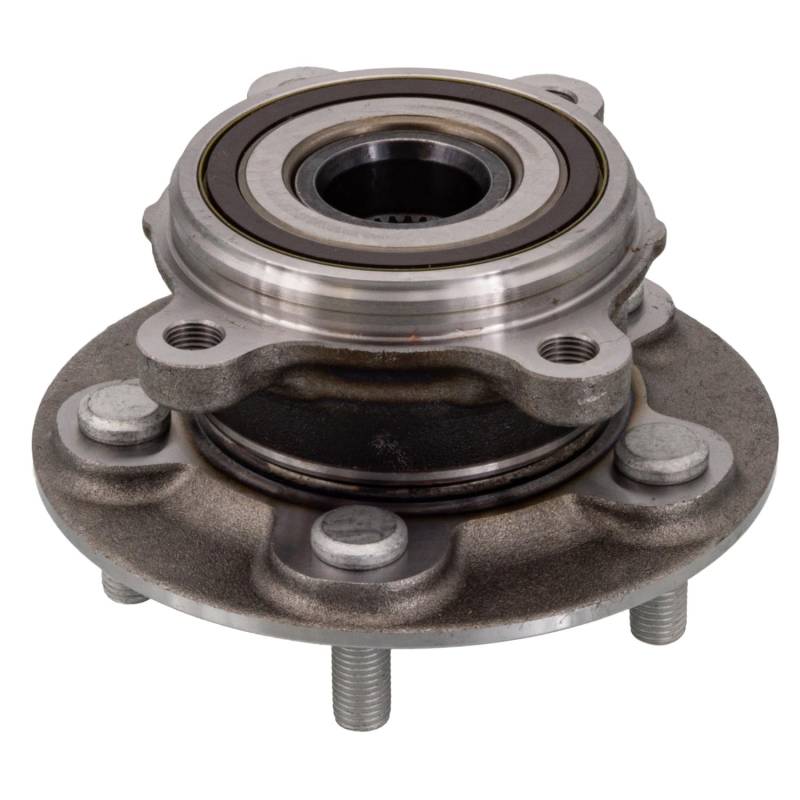

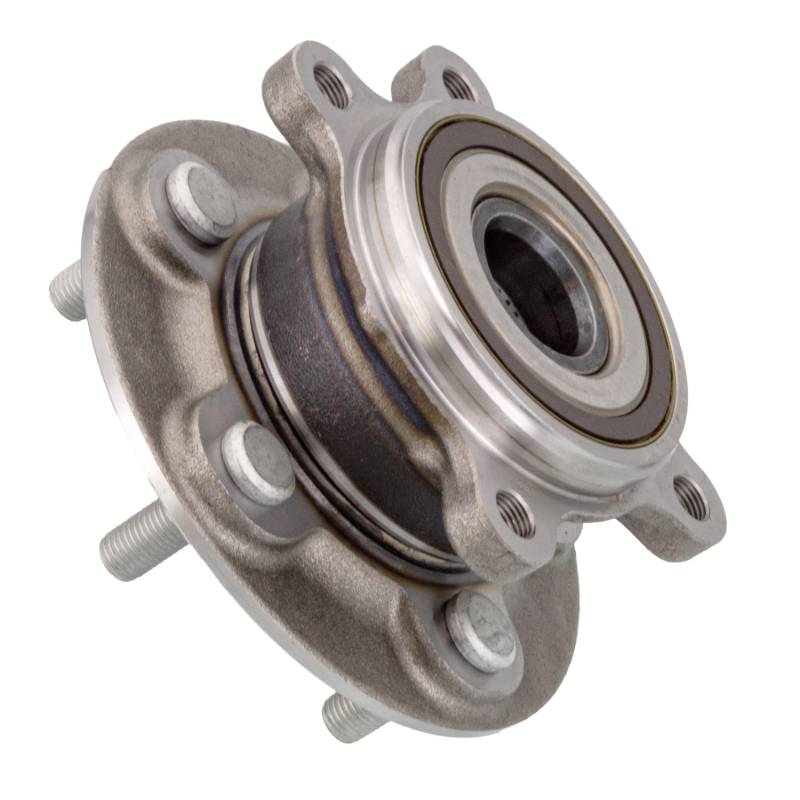

PRODUCT TYPE: HUB ASSEMBLY

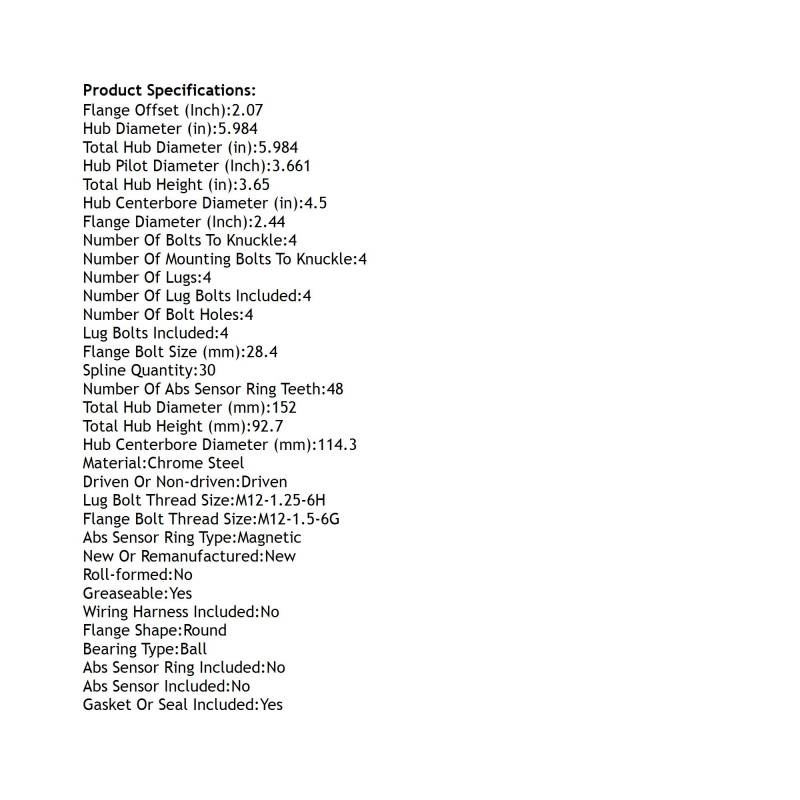

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (MM): 28.4
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.44
FLANGE OFFSET (INCH): 2.07
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.984
HUB PILOT DIAMETER (INCH): 3.661
LUG BOLT THREAD SIZE: M12-1.25-6H
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 5.984
TOTAL HUB DIAMETER (MM): 152
TOTAL HUB HEIGHT (IN): 3.65
TOTAL HUB HEIGHT (MM): 92.7
WIRING HARNESS INCLUDED: NO
REPLACES:
BCA: WE61876
COAST TO COAST: 900010
NAPA: PBR931104
APPLICATIONS:
TOYOTA AVALON (2019-2022)
TOYOTA RAV4 (2019-2021)
