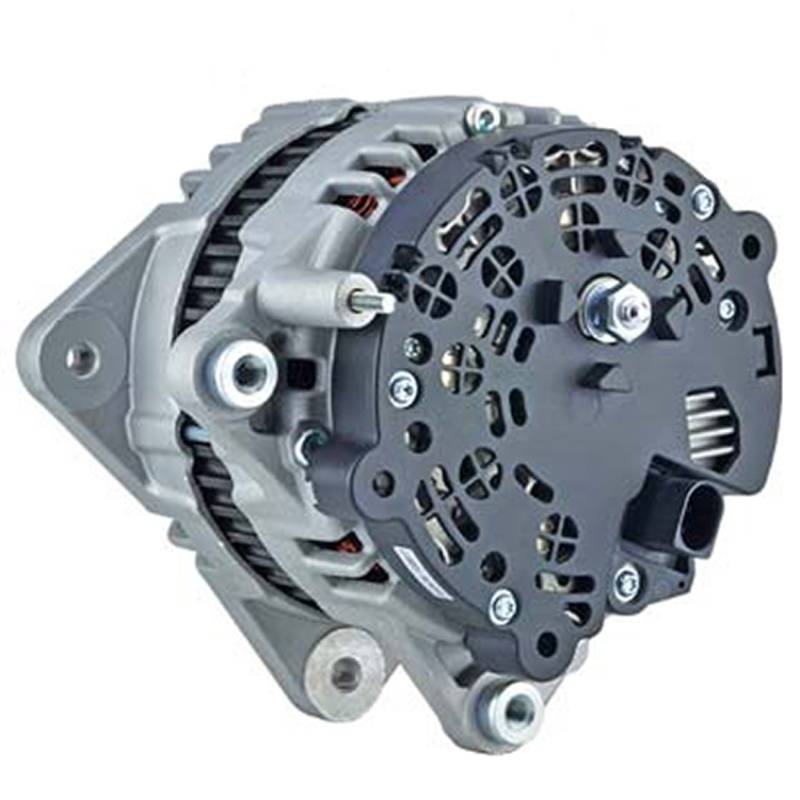

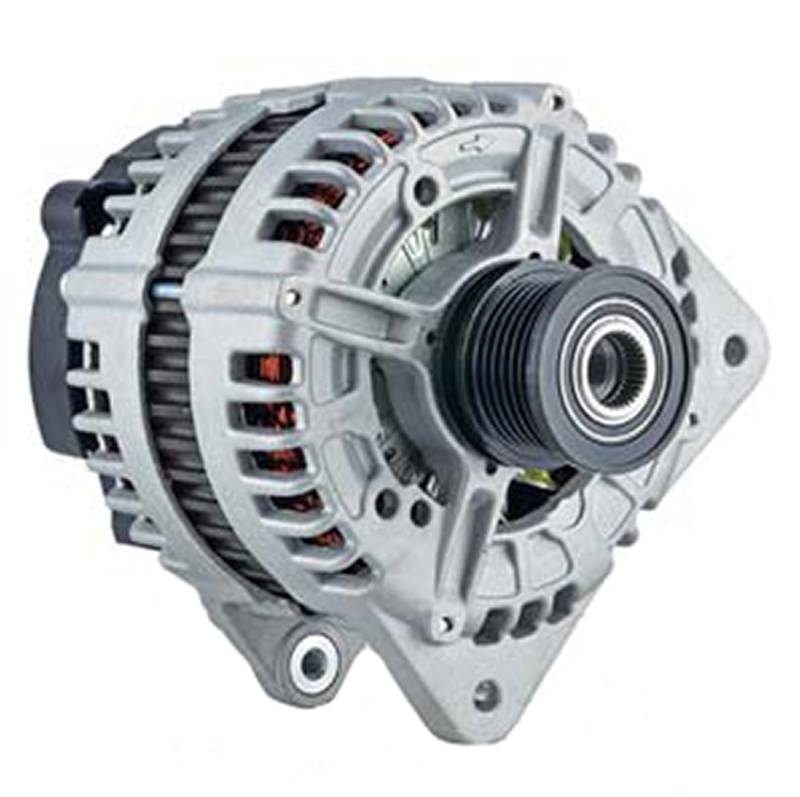

180Amp Alternator Compatible With Volkswagen Europe Caddy Iv 2.0L 2015-17 0-121-715-077

AUDI, VOLKSWAGEN: 03G903016LX
BOSCH: 0-121-715-077 0-121-715-177 0121715177
BOSCH SERVICE EUROPE: 0-986-081-920
HELLA: 8EL 738 213-411 8EL738213411

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: BOSCH
VOLTAGE: 12
AMPERAGE: 180
FAN: INTERNAL
REGULATOR: INTERNAL
PULLEY GROOVES: 6
PULLEY TYPE: CLUTCH
PULLEY OD: 2.102IN / 53.4MM
SERPENTINE GROOVES OD: 1.949IN / 49.5MM
MOUNTING EAR 1 HOLE: 8.5MM UNTHREADED
MOUNTING EAR 2 HOLE: M8-1.25 THREADED
MOUNTING EAR 3 HOLE: 8.5MM UNTHREADED
MOUNTING EAR 4 HOLE: M8-1.25 THREADED
MOUNTING EAR 1 THICKNESS: 0.559IN / 14.2MM
MOUNTING EAR 2 THICKNESS: 0.787IN / 20MM
MOUNTING EAR 3 THICKNESS: 0.559IN / 14.2MM
MOUNTING EAR 4 THICKNESS: 0.787IN / 20MM
B+ TERMINAL: M8-1.25
LIN TERMINAL: SPADE
N/C TERMINAL: SPADE
WEIGHT: 16.85 LBS / 7.66 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
