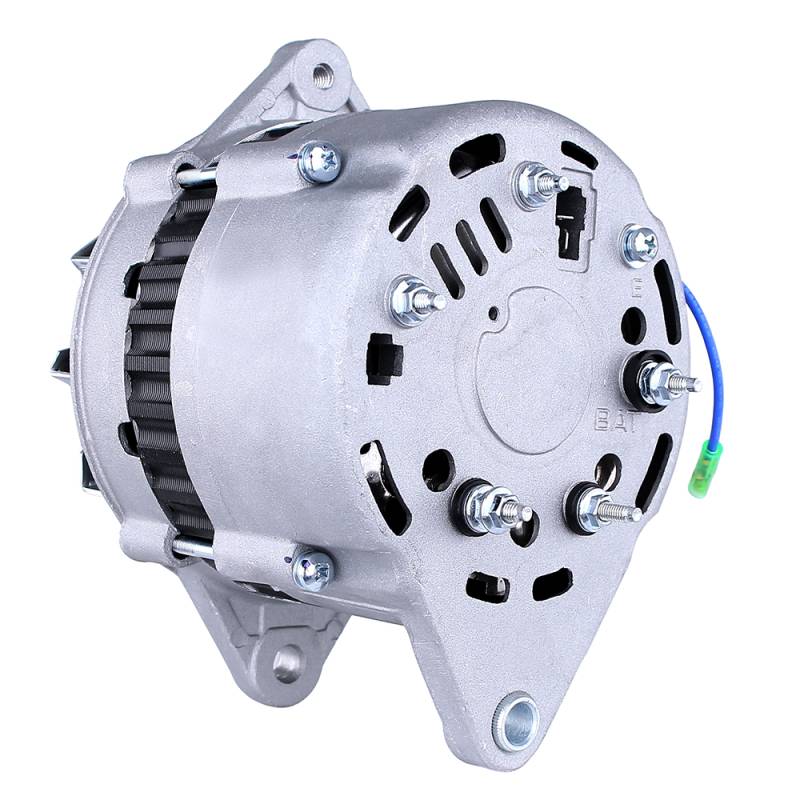

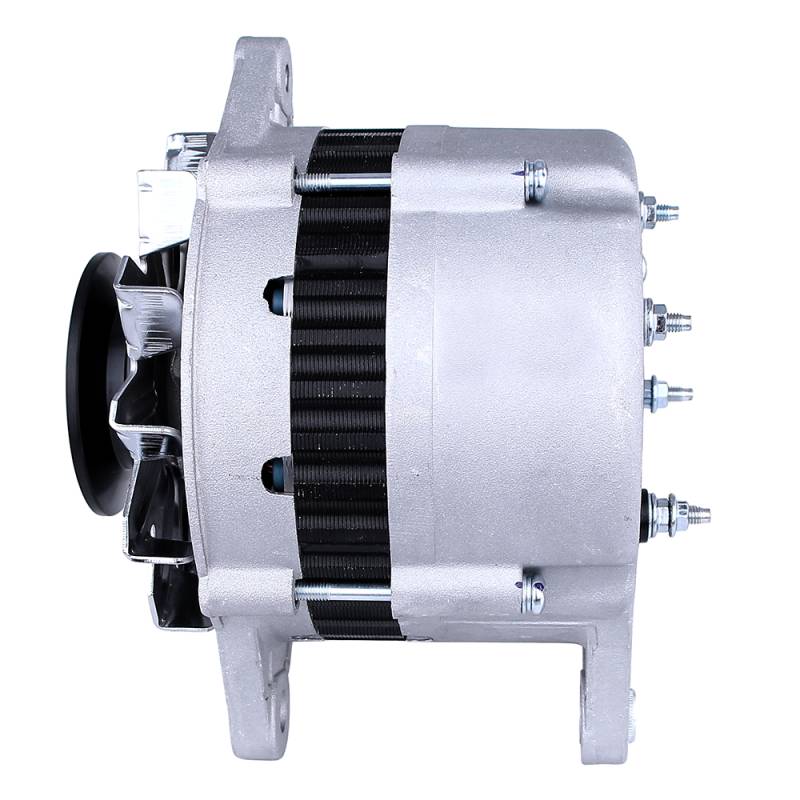

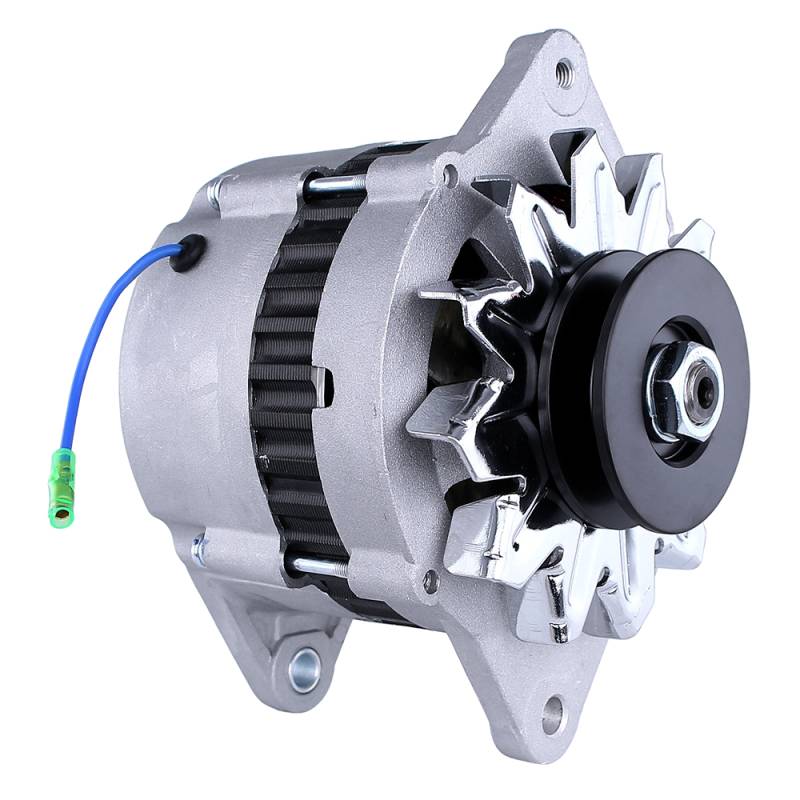

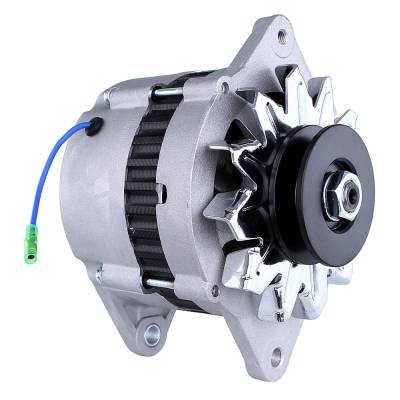

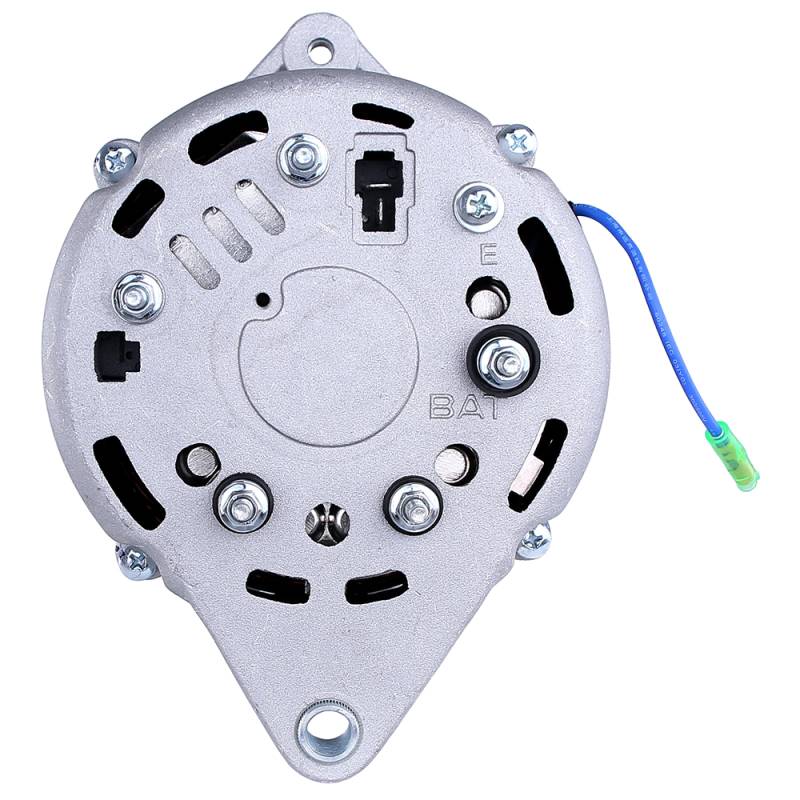

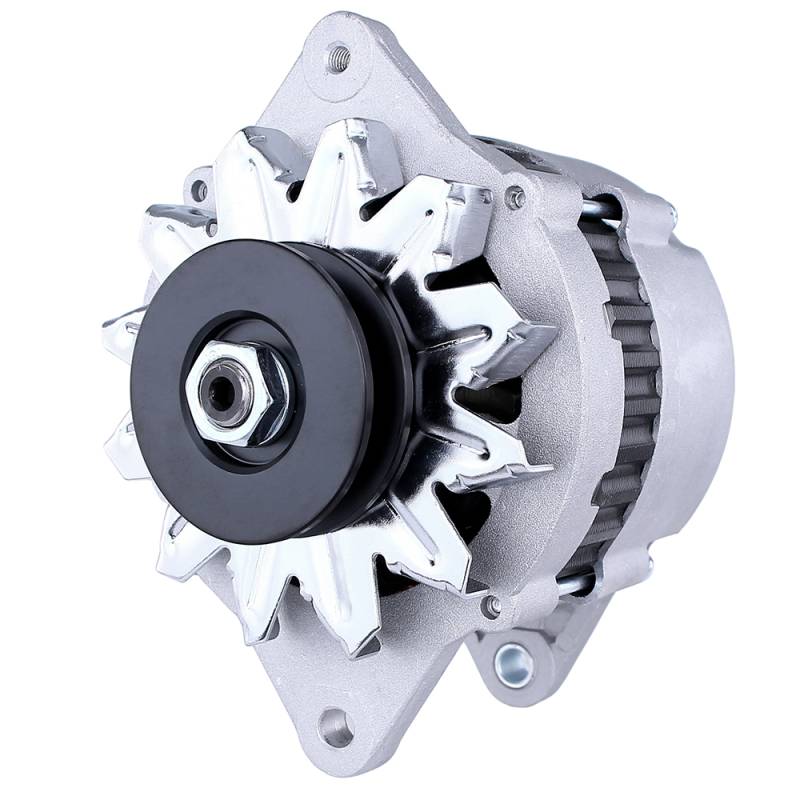

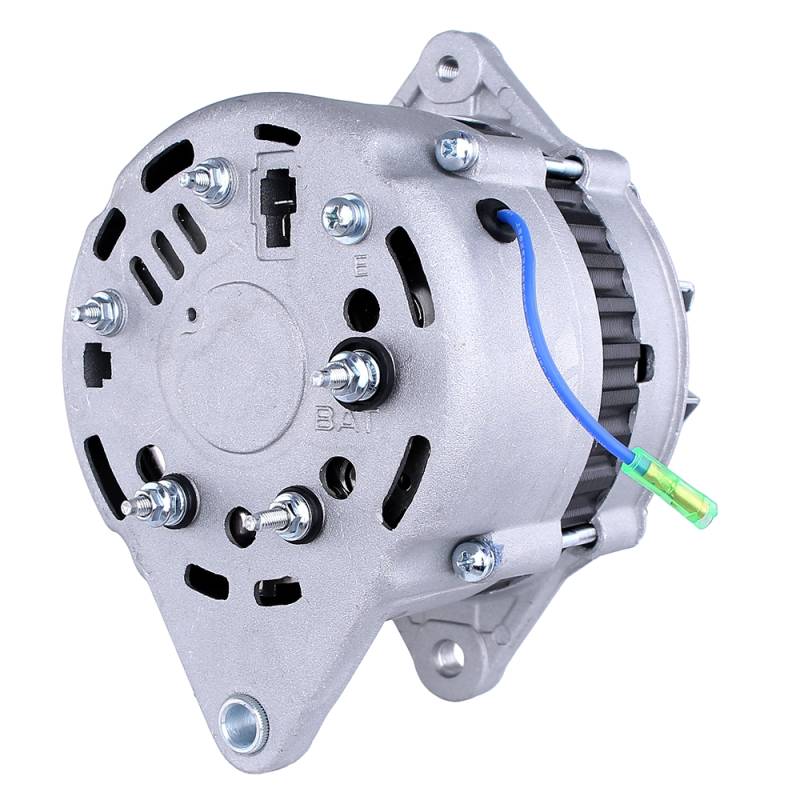

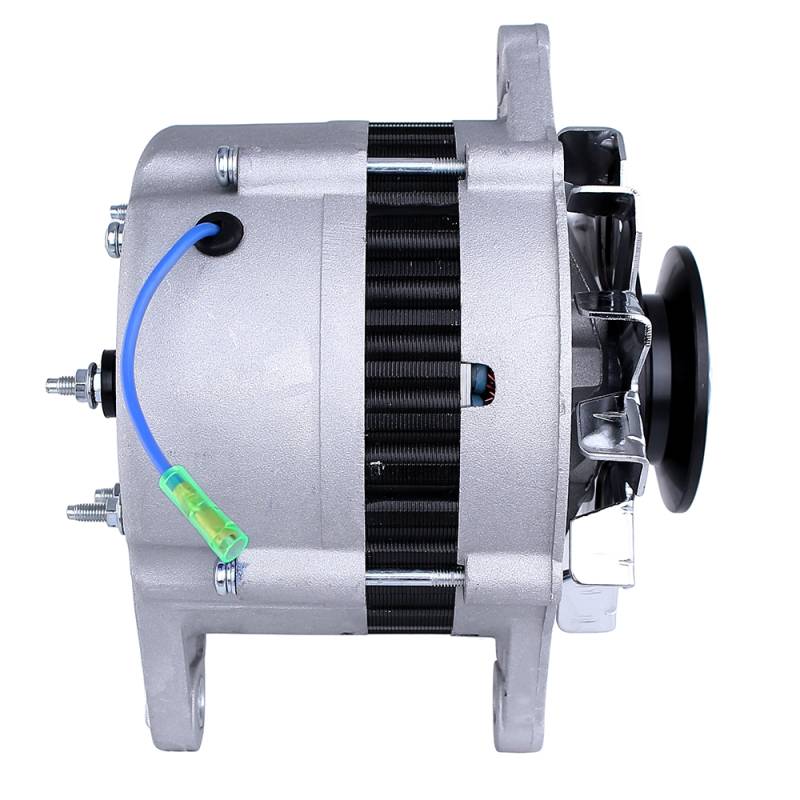

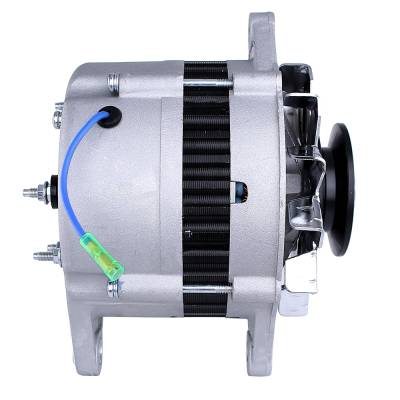

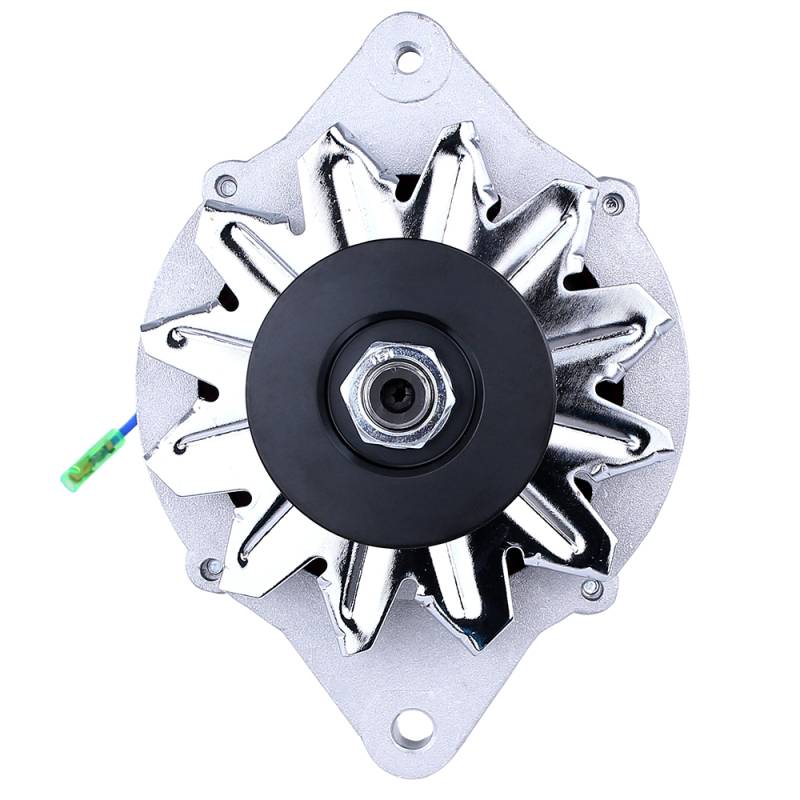

New 12V 80A Alternator Fits Yanmar Marine 3Ym20 3Ym30 4Jh-Te Lr180-03A Lr180-03

HITACHI: LR180-03 LR180-03A LR18003B LR18003C
PRESTOLITE20150112
SIERRA MARINE: 18-6278 186927 186929
YANMAR: 119573-77200 11957377201 12947077200

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: HITACHI
VOLTAGE: 12
AMPERAGE: 80
FAN: EXTERNAL
REGULATOR: INTERNAL
REGULATOR CLOCK: 12:30
GROOVES: 1
PULLEY OD: 2.913IN / 74MM
PULLEY SPECIFICATIONS: 1/2" BELT WIDTH PULLEY
MOUNTING EAR 1: M8-1.25 THREADED
MOUNTING EAR 2: 10.5MM UNTHREADED
MOUNTING EAR 3: 10.4MM UNTHREADED
MOUNTING EAR THICKNESS 1: 0.551IN / 14MM
MOUNTING EAR THICKNESS 2: 0.551IN / 14MM
MOUNTING EAR THICKNESS 3: 0.591IN / 15MM
B+ TERMINAL: M5-0.8
POLARITY: INSULATED
TERMINAL ID: LIGHT / RELAY
SPECIFICATIONS: FULLY INSULATED
SPECIFICATIONS: THE RELAY TERMINAL VOLTAGE IS 1.25V STATIC AND BATTERY VOLTAGE WHEN RUNNING
SPECIFICATIONS: BLUE WIRE IS STATOR VOLTAGE
WEIGHT: 13.52 LBS / 6.14 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
