CLUB CAR: 1018294-01 101833701 1036785-02
COLUMBIA PARCAR: 3008369A 30083-69B 3008369C 30083-69D 3008369E
HITACHI: 3102201HI1 GSB10701 GSB107-01A GSB10704A
HITACHI SALES: GSB107-04C
MANDO: G096503 G338771 M063686
REDHAWK: MOT2002 MOT-2004 MOT2005

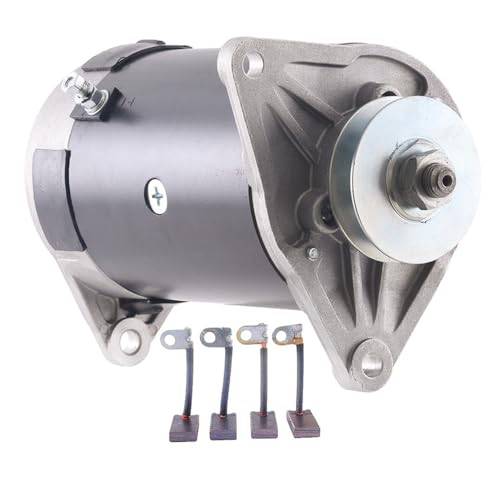

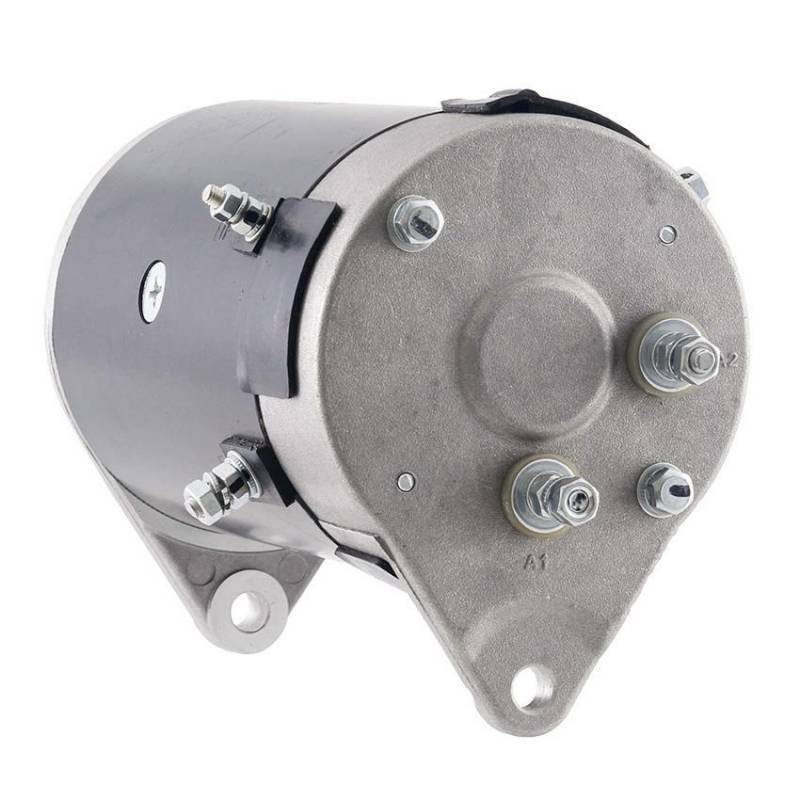

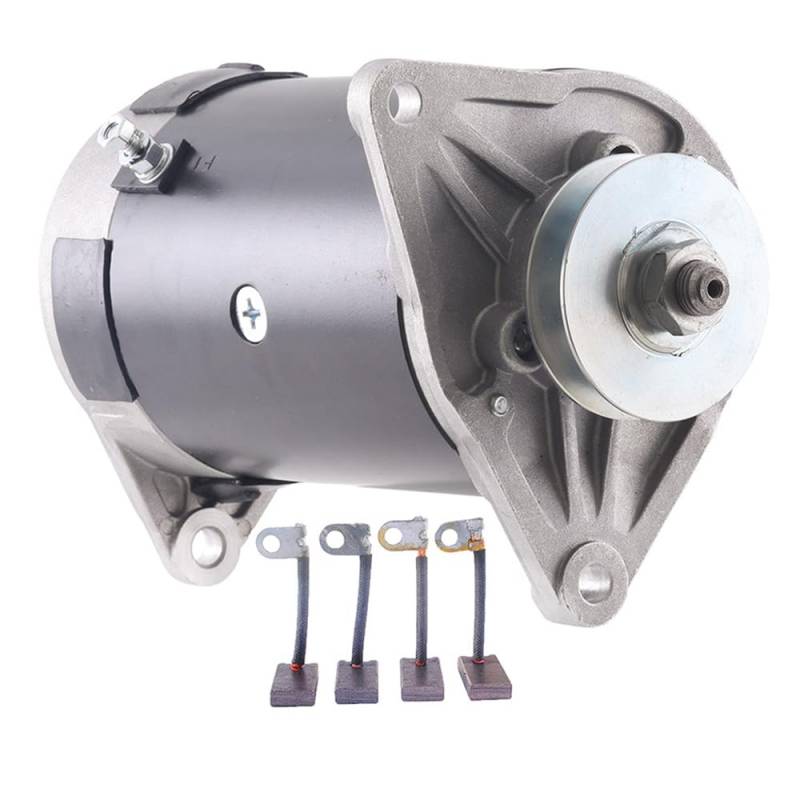

ITEM DESCRIPTION: GENERATOR AND BRUSHES
UNIT TYPE: HITACHI, MANDO, VALEO
VOLTAGE: 12
AMPS: 25
BRUSH LENGTH: 1.024IN / 26MM
BRUSH WIDTH: 0.531IN / 13.5MM
BRUSH HEIGHT: 0.217IN / 5.5MM
LEAD LENGTH: 1.575IN / 40MM
BRUSH QUANTITY: 4
FIELD HSG OD: 113.3MM / 4.461IN
OVERALL LENGTH: 230.3MM / 9.067IN
ROTATION: CW
ROTATION: REVERSIBLE
SHAFT NOTES: THREADED WITH KEYWAY
SHAFT OD: 17MM / 0.669IN
TERMINAL 1 SIZE: M6-1.0
TERMINAL 2 SIZE: M5-0.8
TERMINAL 3 SIZE: M6-1.0
TERMINAL 4 SIZE: M6-1.0
NOTES: 5 TERMINAL MOTOR GENERATOR
WEIGHT: 18.5 LBS / 8.41 KG
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
