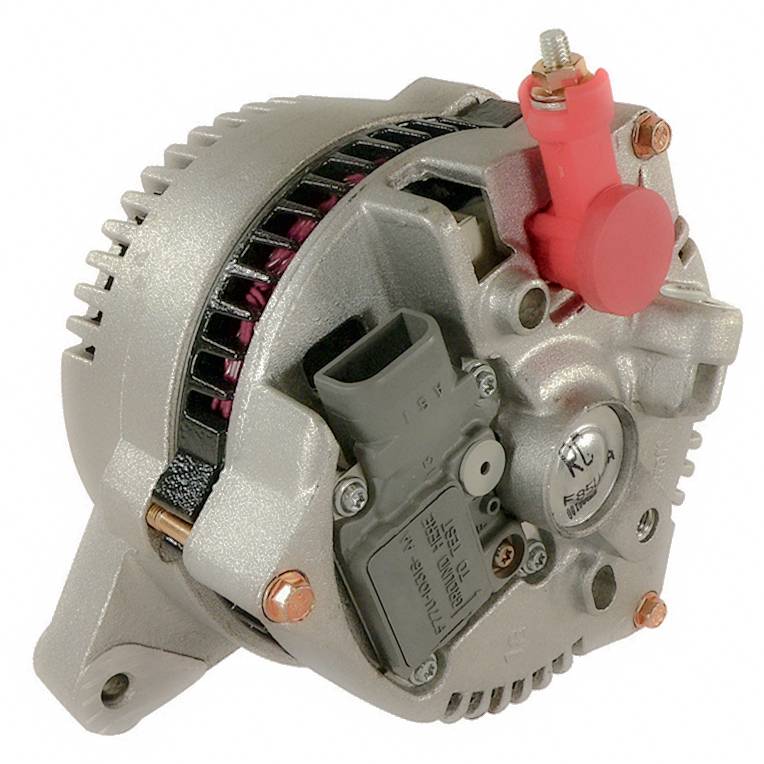

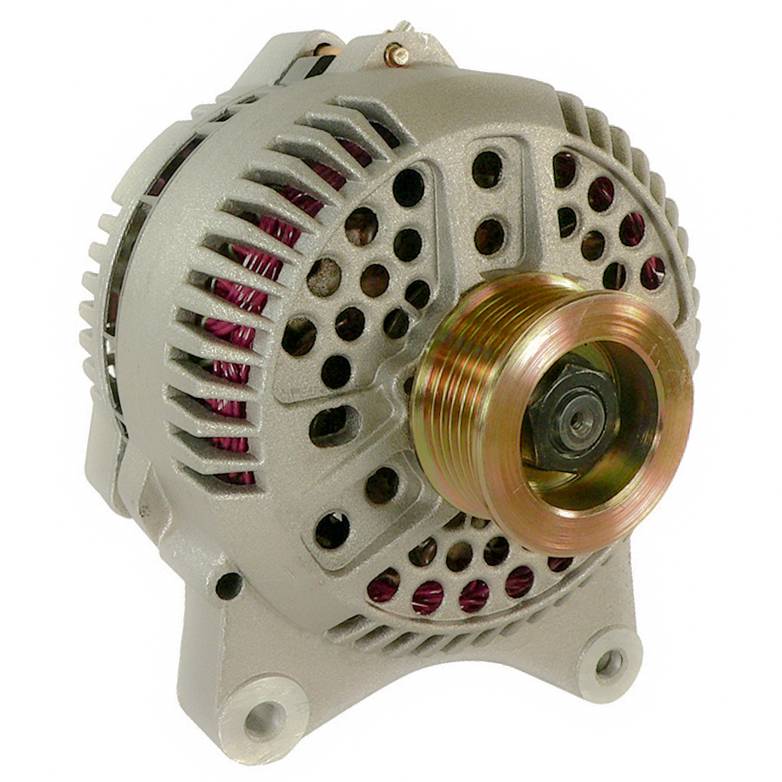

New 250Amp Alternator Fits Ford F-150 4.6L 2003 Xl3u10300ba F6az-10346-Aa Xl3uba

FORD: F6AU-10300-AA F6PZ-10346-BRM F6ZU-10300-AB F6AZ-10346-AA XL3U10300BA XL3U10300BC F6PZ10346EARM1
FORD ENGINEERING: F8ZU-BA F6ZU-AB GL-8726-RM XL3UBA GL373RM
MOTORCRAFT: GL-351

ITEM DESCRIPTION: HIGH OUTPUT ALTERNATOR
UNIT TYPE: FORD
VOLTAGE: 12
AMPERAGE: 250
FAN: INTERNAL
REGULATOR: INTERNAL
GROOVES: 6
SERPENTINE GROOVES OD: 2.224IN / 56.5MM
PULLEY TYPE: SOLID
PULLEY OD: 2.409IN / 61.2MM
MOUNT TYPE: SPOOL
MOUNTING EAR 1 HOLE: 9.3MM UNTHREADED
MOUNTING EAR 2 HOLE: 9.3MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 1.008IN / 25.6MM
MOUNTING EAR 2 THICKNESS: 1.008IN / 25.6MM
B+ TERMINAL: M6-1.0
L TERMINAL: SPADE
S TERMINAL: SPADE
A TERMINAL: SPADE
POLARITY: NEGATIVE
SPECIFICATIONS: INCLUDES BATTERY TERMINAL EXTENSION
WEIGHT: 14.84 LBS / 6.74 KG
