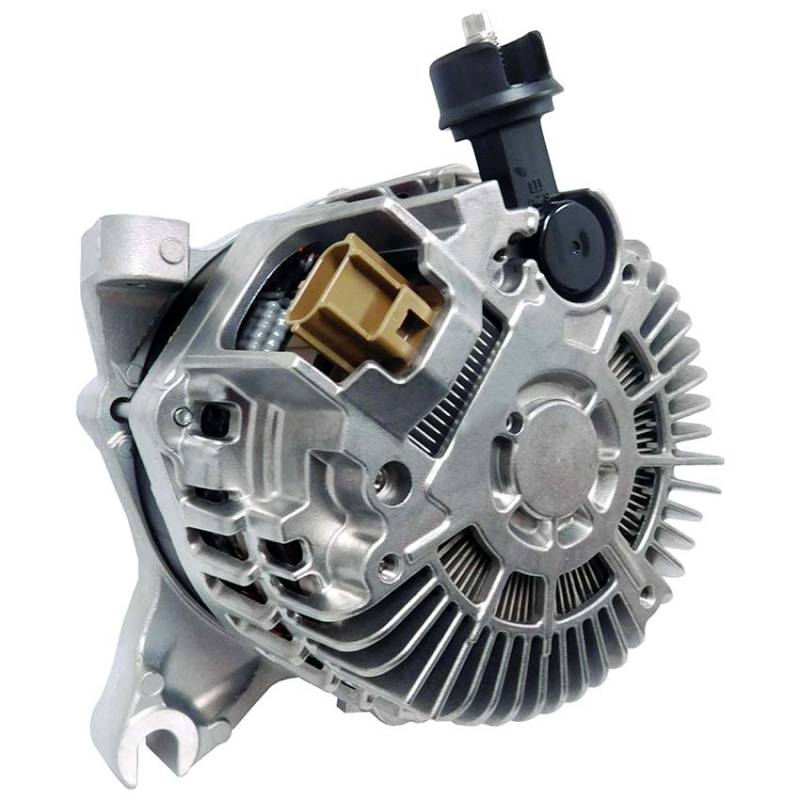

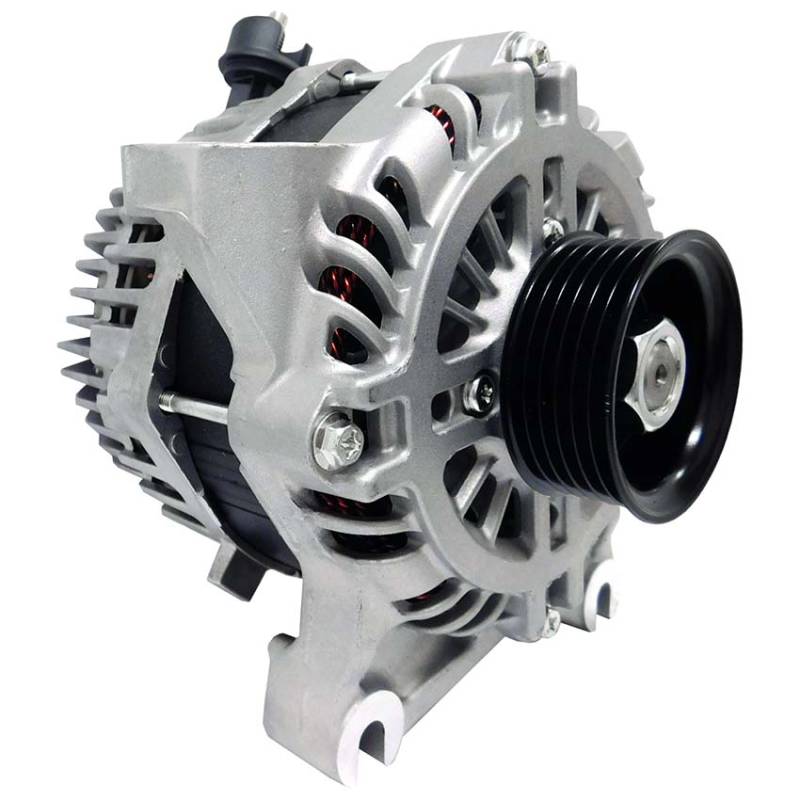

New 12V 175A Alternator Compatible With Mitsubishi Ford Truck F53 6.8L 415Cu In V10 2008-2012 2013

FORD: 9C3T 10300-BB 9C3T 10300 BB 9C3T-10300-BB 9C3T10300BB 9C3Z 10346-B 9C3Z 10346 B 9C3Z-10346-B 9C3Z10346B
FORD ENGINEERING: 9C3T-BB 9C3TBB
MITSUBISHI: A003TX0691 A003TX0691ZC
MITSUBISHI SALES: A3TX0691 A3TX0691ZC

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: FORD
FAN: INTERNAL
REGULATOR: INTERNAL
VOLTS: 12
AMPERAGE: 175
ROTATION: CLOCKWISE
GROOVES: 6
MOUNTING EAR 1 HOLE: M6X1.00 THREADED
MOUNTING EAR 2 HOLE: 9.3MM X 11MM SLOTTED
MOUNTING EAR 3 HOLE: M6X1.00 THREADED
MOUNTING EAR 4 HOLE: 9.3MM X 11.0MM SLOTTED
MOUNTING EAR 1 THICKNESS: 0.614IN / 15.6MM
MOUNTING EAR 2 THICKNESS: 1.024IN / 26MM
MOUNTING EAR 3 THICKNESS: 0.614IN / 15.6MM
MOUNTING EAR 4 THICKNESS: 1.024IN / 26MM
B+ TERMINAL: M8X1.25
POLARITY: NEGATIVE
SERPENTINE GROOVES OD: 2.362IN / 60MM
PULLEY TYPE: SOLID
PULLEY OD: 2.52IN / 64MM
WEIGHT: 14.86 LBS / 6.76 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
