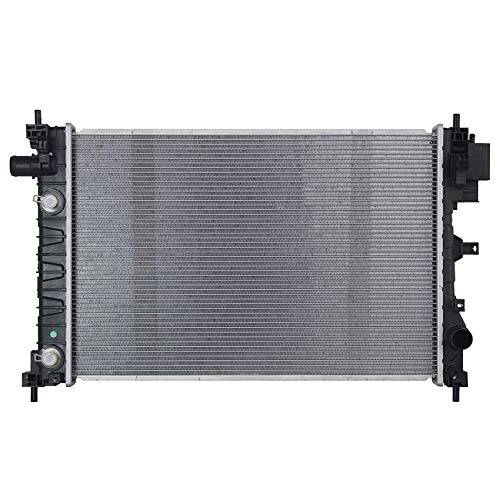

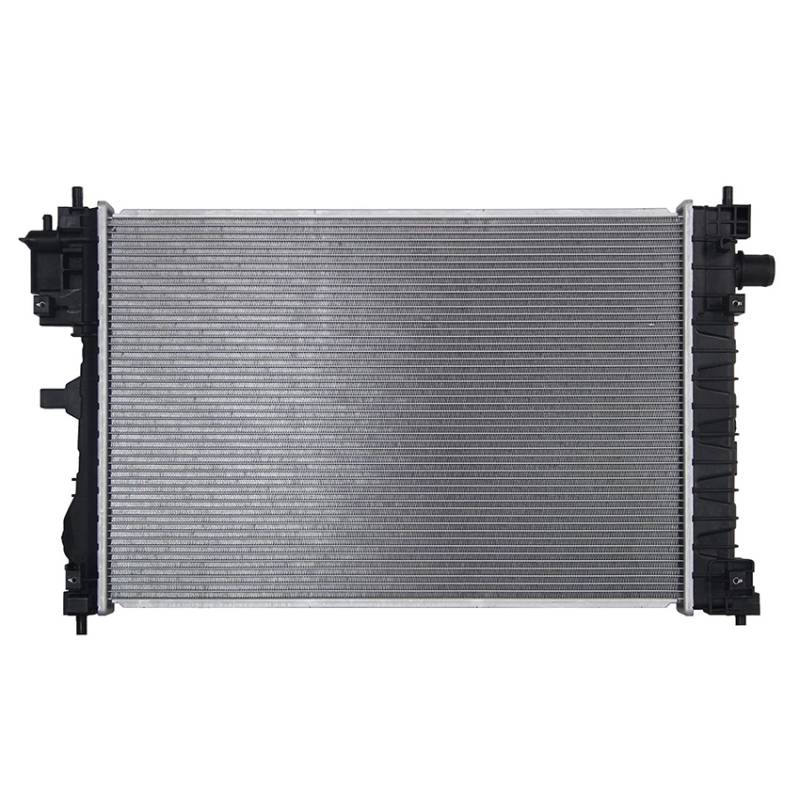

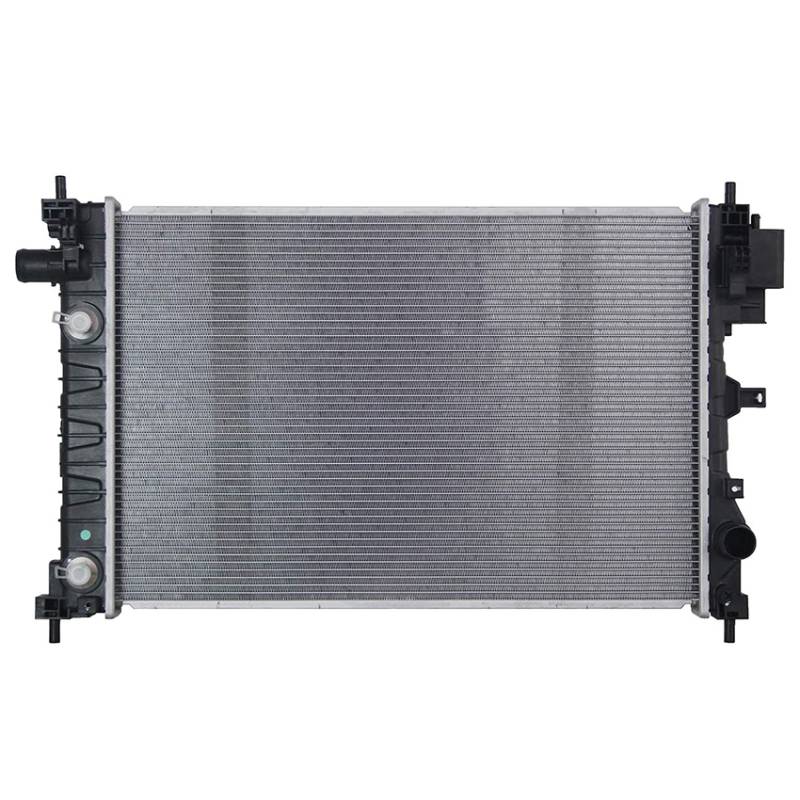

New Front Radiator Fits Chevrolet Spark 1.4L 1399Cc 2016-2017 42349018 Gm3010587

GENERAL MOTORS: 42349018
PARTSLINK: GM3010587

ITEM DESCRIPTION: RADIATOR
UNIT TYPE: GENERAL MOTORS
BOTTOM HEADER: 2.02X16.94:
CORE HEIGHT (IN): 15.60:
CORE LENGTH (IN): 23.62:
CORE MATERIAL: ALUMINUM:
CORE THICKNESS (IN): 0.63:
CONFIGURATION: WITH EOC
FIN COUNT (EVERY 4"): 78:
FIN HEIGHT: 1/4"
FIND WAVE PITCH: 2.6:
FLOW CONFIGURATION: CROSSFLOW:
INLET CONNECTION TYPE: HOSE CLAMP:
INLET SIZE: 11/32" DIAMETER
ROWS: 1
OUTLET CONNECTION TYPE: HOSE CLAMP:
OUTLET SIZE: 11/32" DIAMETER
REMARKS: W/ AT/CVT:
TOC (YES/NO): YES:
TOC DISTANCE (IN): 10.00:
TOC INLET DIAMETER (IN): 0.37:
TOC INLET TYPE: QUICK CONNECT:
TOC OUTLET DIAMETER (IN): 0.37:
TOC OUTLET TYPE: QUICK CONNECT:
TOC TYPE: PLATE OIL COOLER:
TOP HEADER: 2.02X16.94:
TOTAL FIN ROW COUNT: 51:
TOTAL TUBE COUNT: 50:
TUBE COUNT (EVERY 4"): 13:
TUBE WIDTH X HEIGHT: 16X1.5:

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
