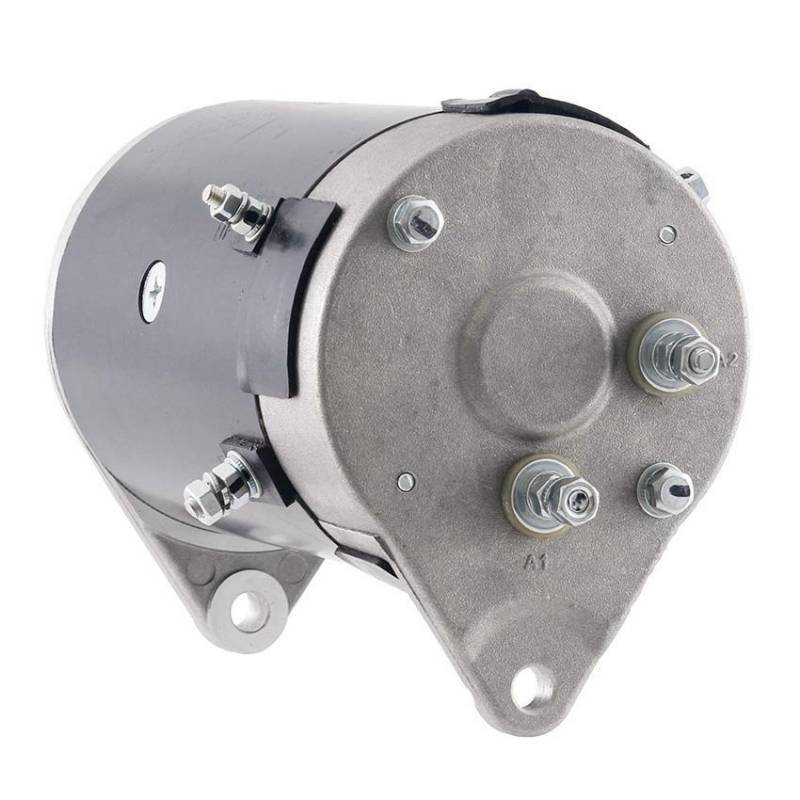

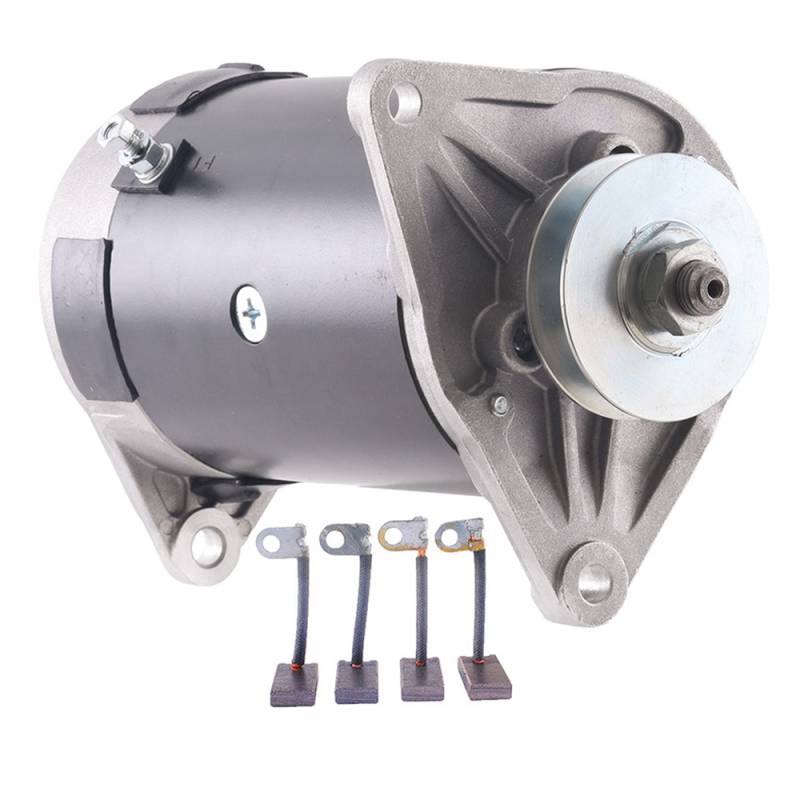

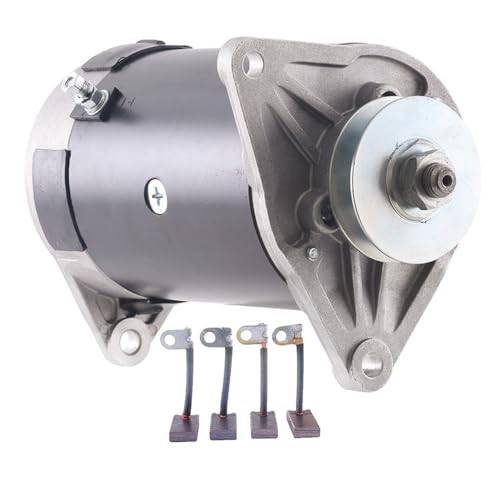

New 12 Volt 25 Amp Generator And Four Brushes Fits Toro Equipment Mot-2005 Tmc001b0011

CLUB CAR: 1012316 101829401 1018337-01 103678502
COLUMBIA PARCAR: 30083-69A 3008369B 30083-69C 3008369D 30083-69E
HITACHI: GSB107-01 GSB10701A GSB107-04A
HITACHI SALES: GSB10704C
MANDO: G278441 G425419
REDHAWK: MOT-2002 MOT2004 MOT-2005
VALEO: TMC001B0011

ITEM DESCRIPTION: GENERATOR AND BRUSHES
UNIT TYPE: HITACHI, MANDO, VALEO
VOLTAGE: 12
AMPS: 25
BRUSH LENGTH: 1.024IN / 26MM
BRUSH WIDTH: 0.531IN / 13.5MM
BRUSH HEIGHT: 0.217IN / 5.5MM
LEAD LENGTH: 1.575IN / 40MM
BRUSH QUANTITY: 4
FIELD HSG OD: 113.3MM / 4.461IN
OVERALL LENGTH: 230.3MM / 9.067IN
ROTATION: CW
ROTATION: REVERSIBLE
SHAFT NOTES: THREADED WITH KEYWAY
SHAFT OD: 17MM / 0.669IN
TERMINAL 1 SIZE: M6-1.0
TERMINAL 2 SIZE: M5-0.8
TERMINAL 3 SIZE: M6-1.0
TERMINAL 4 SIZE: M6-1.0
NOTES: 5 TERMINAL MOTOR GENERATOR
WEIGHT: 18.5 LBS / 8.41 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
