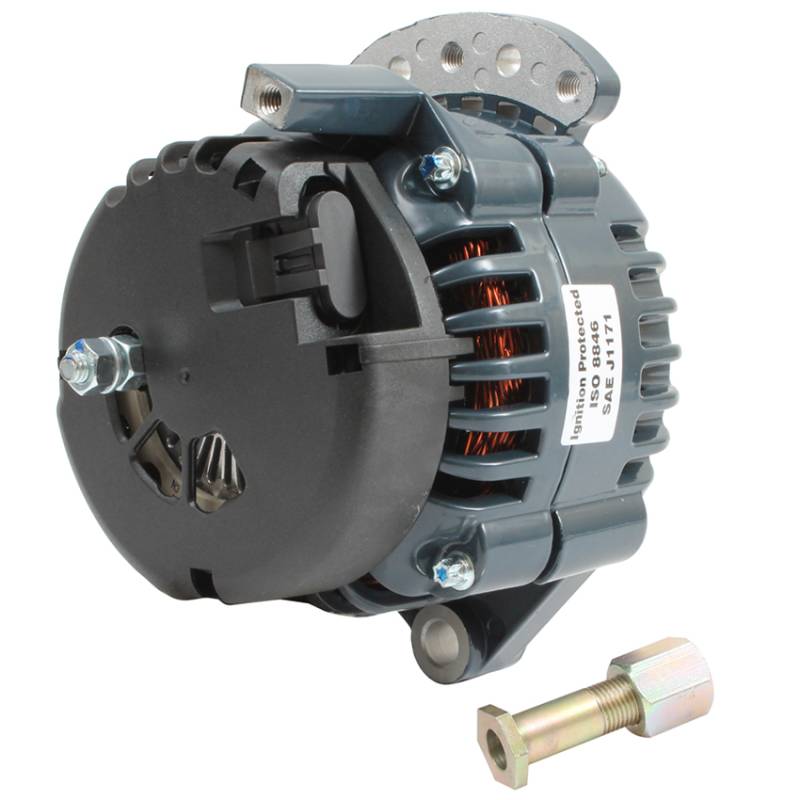

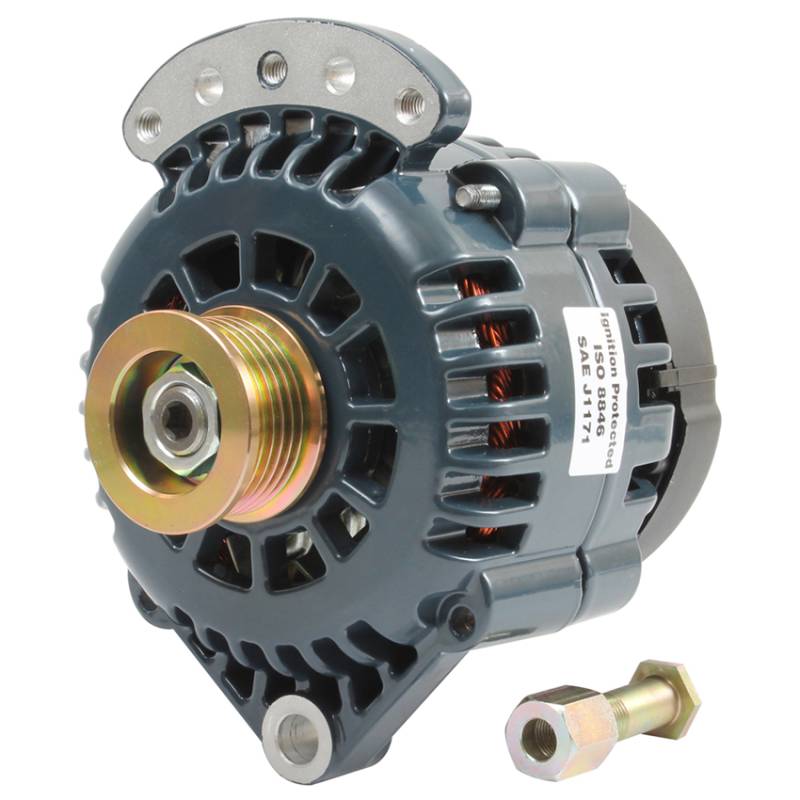

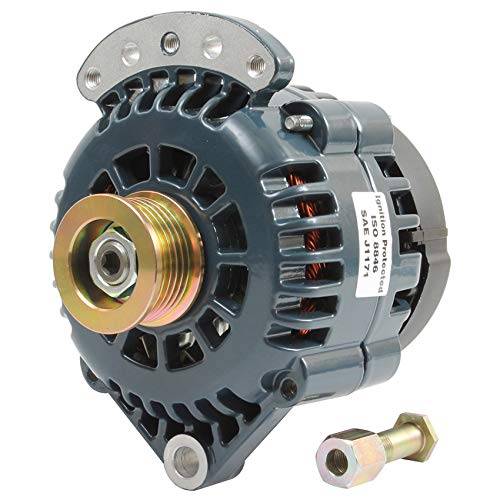

New 180Amp Alternator Compatible With Various Marine Applications 240-5273 400-12518 Adr0446

REPLACES: 240-5273 400-12518 ADR0446

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: DELCO
VOLTAGE: 12
AMPERAGE: 180
FAN: INTERNAL
REGULATOR: INTERNAL
PULLEY GROOVES: 6
SERPENTINE GROOVES OD: 1.921IN / 48.8MM
PULLEY TYPE: SOLID
PULLEY OD: 2.106IN / 53.5MM
MOUNT TYPE: SPOOL
MOUNTING EAR 1 HOLE: (3) M8-1.25 THREADED
MOUNTING EAR 2 HOLE: (2) 8MM UNTHREADED
MOUNTING EAR 3 HOLE: 12.8MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 0.453IN / 11.5MM
MOUNTING EAR 2 THICKNESS: 0.453IN / 11.5MM
MOUNTING EAR 3 THICKNESS: 1.008IN / 25.6MM
POLARITY: NEGATIVE
MOUNTING EAR 4 THICKNESS
UNIVERSAL MOUNTING OPTIONS INCLUDE: (1) 66.8MM DIAMETER 1-V PULLEY
UNIVERSAL MOUNTING OPTIONS INCLUDE: (1) 118-2 MOUNTING SPOOL ADAPTER KIT
THERE ARE (5) HOLES IN THE UPPER MOUNTING EAR: (3) M8-1.25 THREADED
THERE ARE (5) HOLES IN THE UPPER MOUNTING EAR: (2) 8MM UNTHREADED
WEIGHT: 13.43 LBS / 6.1 KG

PRODUCT NOTICE:
