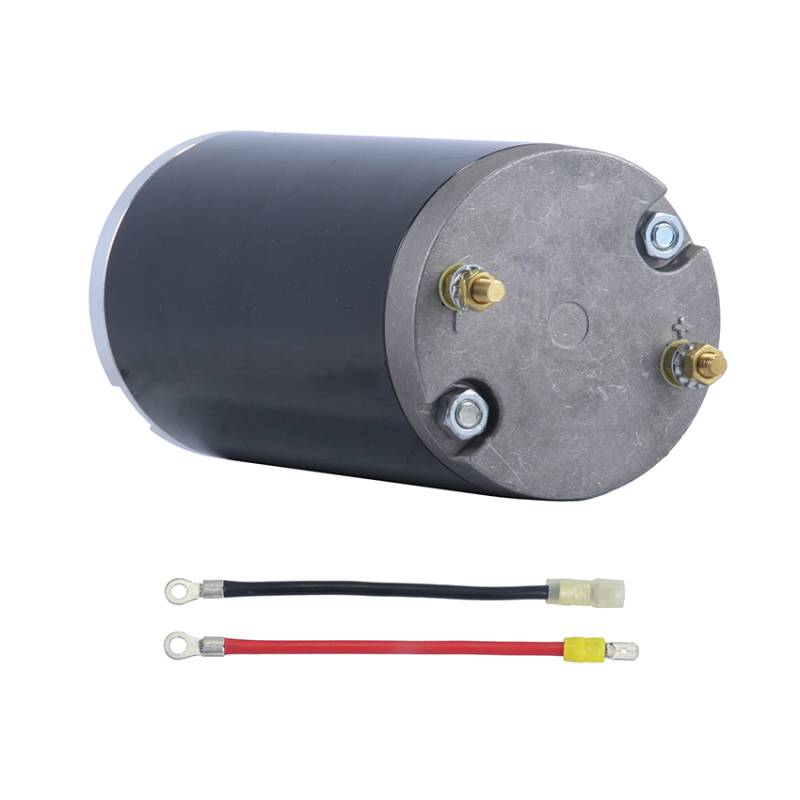

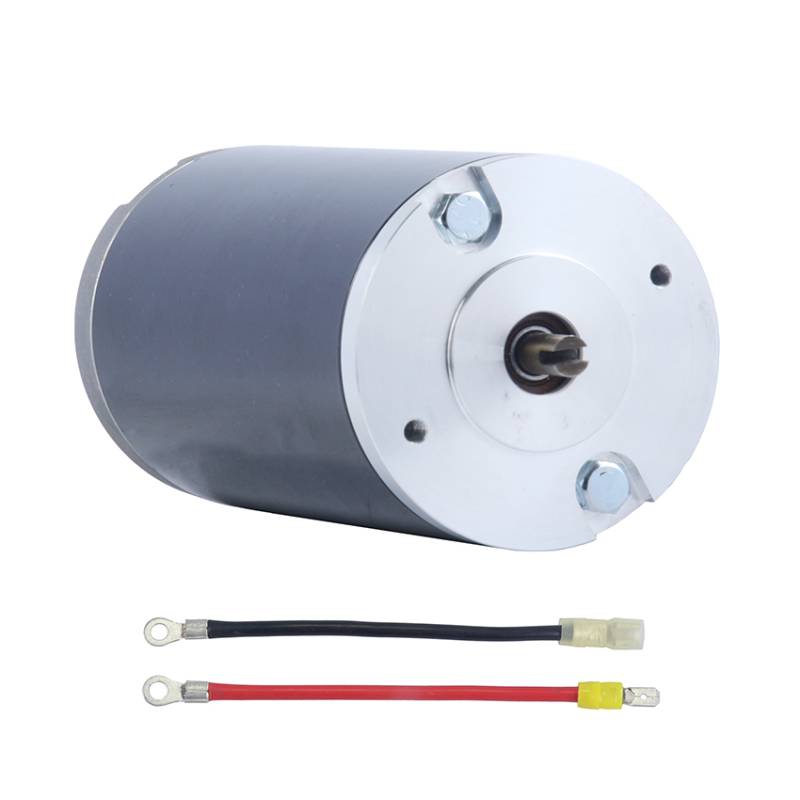

Heavy Duty Version Motor Compatible With Curtis Salt Spreader Auger 06106 1225542 W-06106 D6320

SNOW-EX 1225542C, 3A-1225542C, 9711630062, D6319, D6320, D6410, D6827, 06106, 1225542, 1225542C, 867-97-1163-0062, 8679711630062, 97-1163-0062, 9711630062, W-06106, W06106

**NOTES: THIS IS A REPLACEMENT FOR THE PREVIOUSLY CARRIED VERSION. THE POSITIVE AND NEGATIVE WIRES ARE NOW HARD WIRED IN AND THE FIELD CASE IS SMALLER TO FIT MORE APPLICATIONS.***

ROTATION: BI-DIRECTIONAL
FIELD HOUSING O.D.: 3.000 IN.
FIELD HOUSING LENGTH:
75MM
END OF THE UNIT TO MOUNTING BRACKETS: 105MM
OVERALL LENGTH: 5.000 IN.
SHAFT OUTSIDE DIAMETER: .315 IN.
SHAFT LENGTH: 10MM
SHAFT STYLE: SLOTTED
TERMINAL 1 SIZE: HARD WIRED PIG-TAIL; RED=POSITIVE, BLACK=NEGATIVE
HOUSING FINISH: DRIVE AND COMM ENDS ARE CAST ALUMINUM WITH BLACK PAINTED FIELD CASE.
WEIGHT: 3.5 LBS.
