KUBOTA: 3F261-64010 3F261-64011
MITSUBISHI: A5TA5999
MITSUBISHI SALES: A005TA5999 A5TA5999

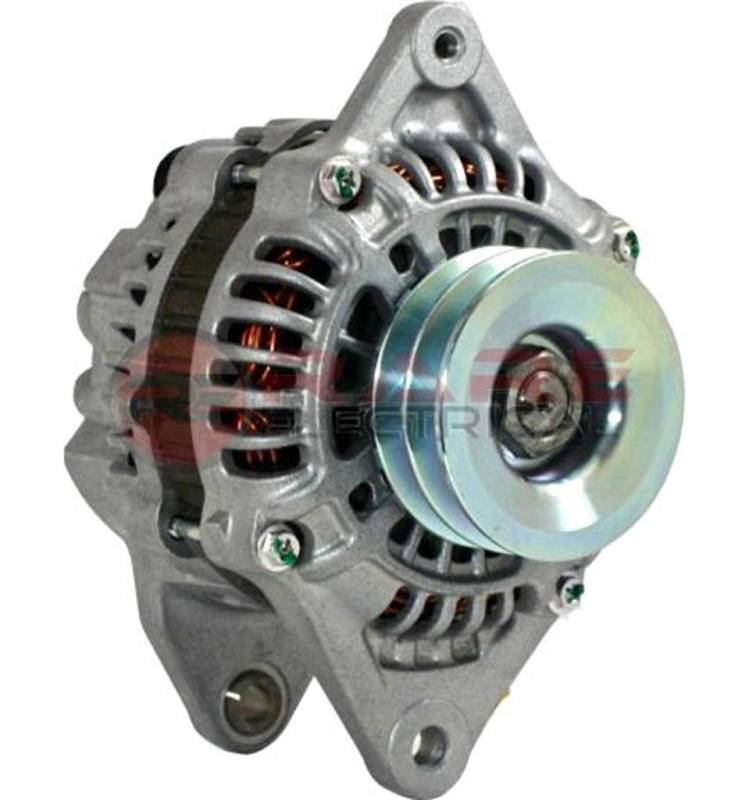

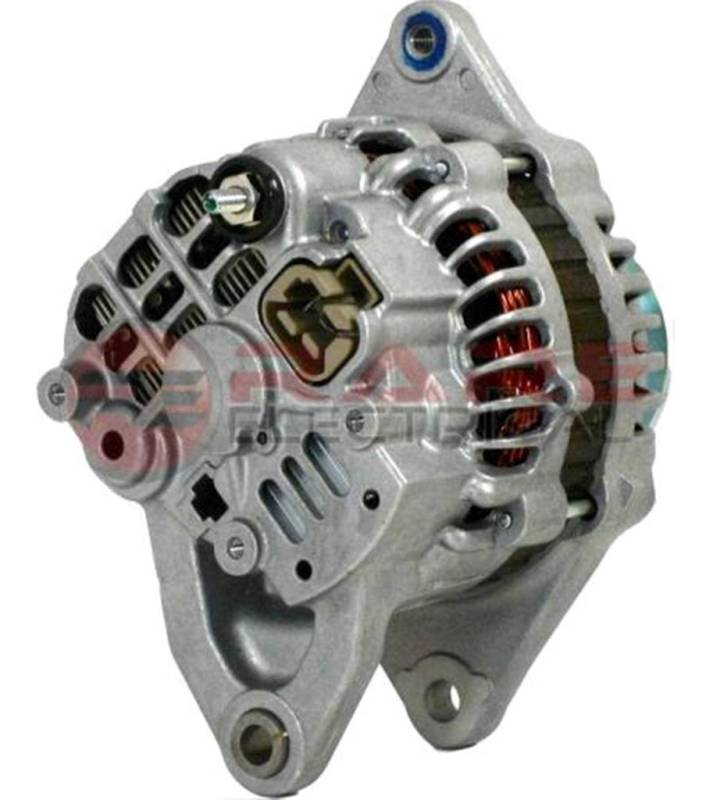

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: MITSUBISHI
VOLTAGE: 12
AMPERAGE: 80
FAN: EXTERNAL
REGULATOR: INTERNAL
PULLEY: V BELT
GROOVES: 2
REGULATOR CLOCK: 1:30
POLARITY: NEGATIVE
B+ TERMINAL: M6-1.0
MOUNTING EAR 1: M8-1.25 THREADED
MOUNTING EAR 2: 10.4MM UNTHREADED
MOUNTING EAR 3: 10.4MM UNTHREADED
NOTES: 2-BLADE PLUG
WEIGHT: 11.4 LBS / 5.18 KG
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.
KUBOTA TRACTORS - UTILITY M110DT KUBOTA F5802 110HP DSL 1999-2004
KUBOTA TRACTORS - UTILITY M110DTC KUBOTA F5802 110HP DSL 1999-2004
KUBOTA TRACTORS - UTILITY M110FC KUBOTA F5802 110HP DSL 1999-2004
KUBOTA TRACTORS - UTILITY M120DT KUBOTA F5802 120HP DSL 1999-2003
KUBOTA TRACTORS - UTILITY M120DTC KUBOTA F5802 120HP DSL 1999-2003
KUBOTA TRACTORS - UTILITY M120FC KUBOTA F5802 120HP DSL 1999-2003
