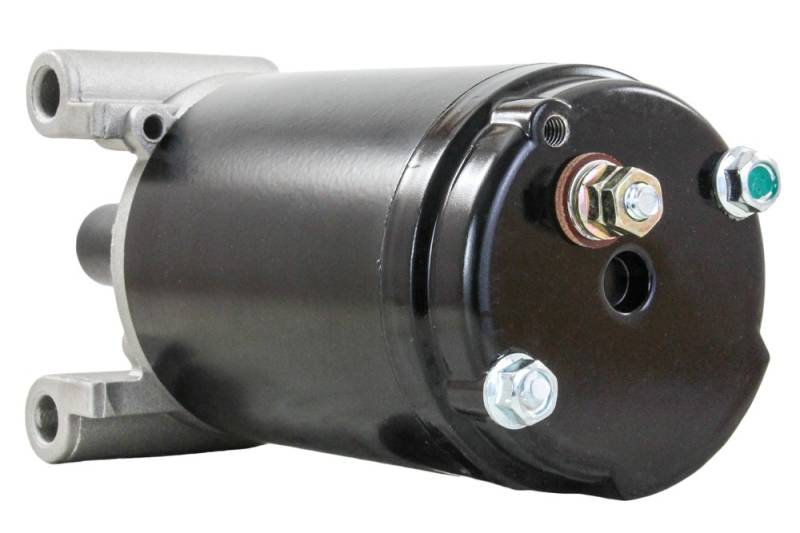

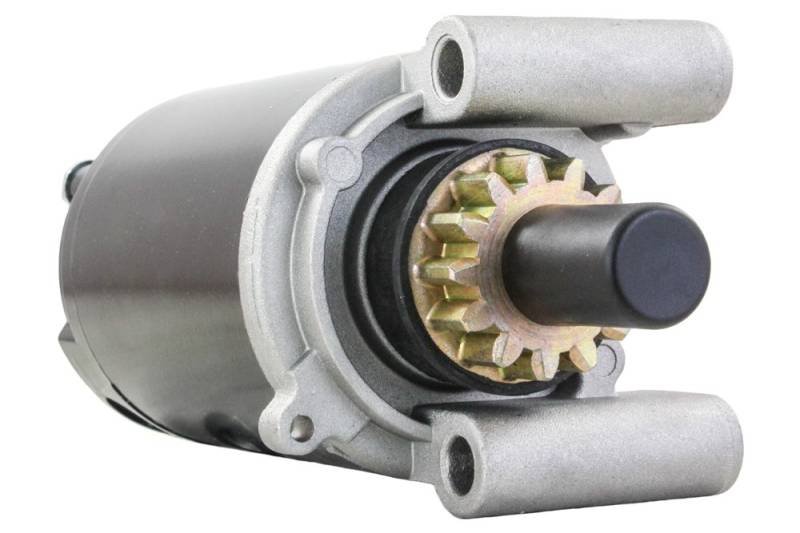

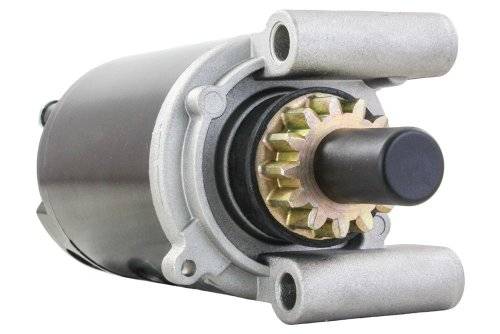

New Starter Compatible With Kohler 239740-M030sm By Part Numbers 12-098-05 12-098-14 5239740-M030sm

KOHLER 12-098-05, 12-098-06, 12-098-09, 12-098-12, 12-098-14, 12-098-21, 12-098-21S
UNITED TECHNOLOGIES 5239740-M030SM, 5278440-M030SM, 5667040-M030SM, SM52397, SM52784, SM56670

OEM: KOHLER, JOHNSON ELECTRIC
TYPE: PMDD
VOLTAGE: 12 VOLTS
ROTATION: CCW
TEETH/SPLINES: 13 TEETH/SPLINES
PINION/SPLINES OD: 38.3MM / 1.508IN
MOUNTING HOLE 1: 8.0MM ID UNTHREADED
MOUNTING HOLE 2: 8.0MM ID UNTHREADED
APPROXIMATE WEIGHT: 5.1 LBS / 2.32 KG

NOTES:
BATTERY TERMINAL ON CE PLATE,
FIELD HOUSING LENGTH 88MM

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
