Starter Compatible With 85-90 Toro Groundmaster 117 Kohler 17Hp Gas 2134940-M030sm 2134940Mo30sm

GRAVELY: 049247 04247 049247
KOHLER: 52-098-06 52-098-10 52-098-13
UNITED TECHNOLOGIES: 2134940-M030SM 5213240-M030SM SM52132 5666440-M030SM SM56664

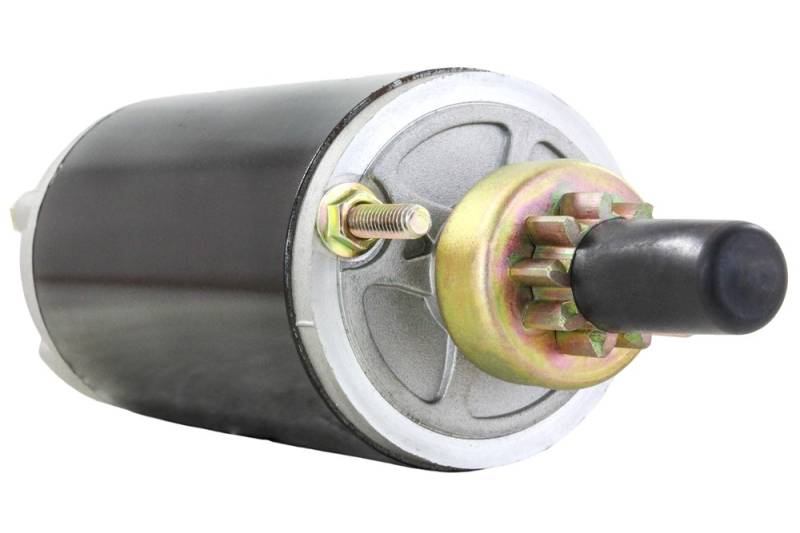

ITEM DESCRIPTION: STARTER
UNIT TYPE: KOHLER
TYPE: PMDD
VOLTAGE: 12
ROTATION: COUNTERCLOCKWISE
TOOTH COUNT: 9
GEAR OD: 29.2MM / 1.150IN
SPECIFICATIONS: 4.82" / 122MM FIELD HOUSING LENGTH
SPECIFICATIONS: 1 / 4-20 THRU BOLTS EXTEND 25.8MM OUT FRONT OF DRIVE CAP

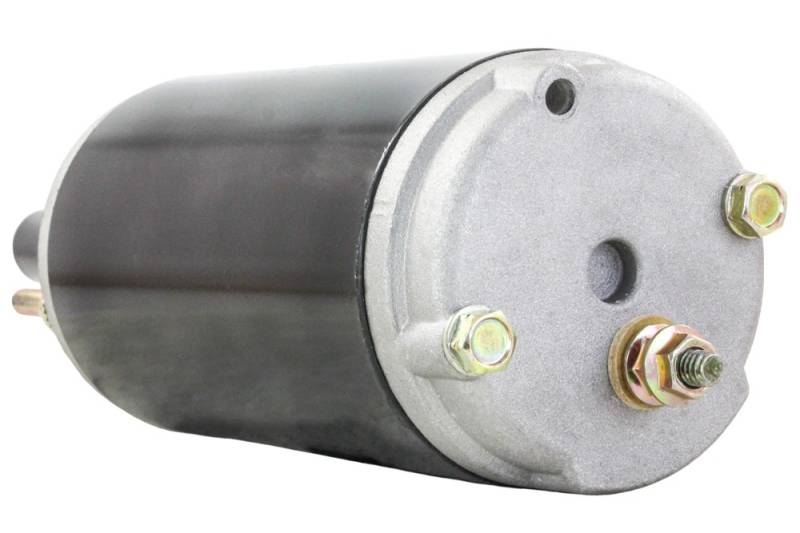

SPECIFICATIONS: BATTERY STUD TERMINAL ON BACK OF CE CAP
WEIGHT: 6.965 LBS / 3.17 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
