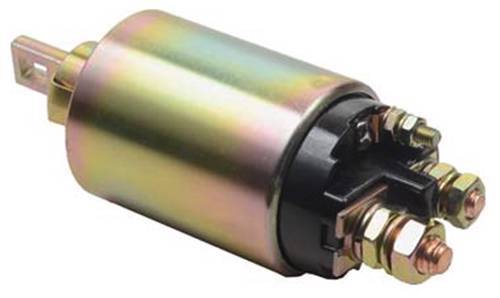

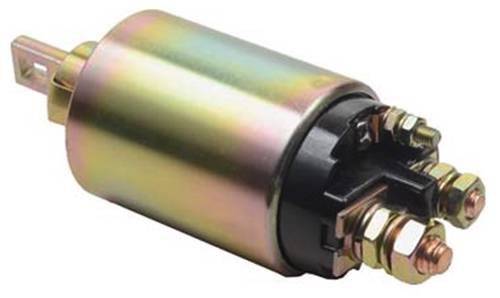

THIS SOLENOID IS A DIRECT REPLACEMENT FOR THE FOLLOWING PART NUMBERS.
FORD F4TZ-11390-A E5PF-11390-AA E5PZ-11390-A F4TZ11390A E5PF11390AA E5PZ11390A
MITSUBISHI M372X07471 SC074 M372X06971 SC069
MOTORCRAFT SWE-5064 SWE-1995 SWE5064 SWE1995
UNIPOINT SNLS-675 SNLS675
WILSON 60-27-15129 60-27-15062 602715129 602715062
TYPE: SWITCH, SOLENOID
CAP DESIGN: CRIMPED CAP
LENGTH CAN: 71MM
MOUNT TYPE: 2 HOLE MOUNT
MOUNTING HOLE CLOCK: 3 & 9
OD BODY: 55MM
PLUNGER TYPE: REMOVABLE
TERMINAL COUNT: 3
BATTERY TERM: M10 X 1.50
MOTOR TERM: M8 X 1.25
SWITCH TERM: M5 X 0.8 POST (RH)
MOUNTING THREADS: M6 X 1.0 THD
VOLTAGE: 12V
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
THIS SOLENOID FITS THE FOLLOWING OEM STARTER PART NUMBERS ON THE FOLLOWING APPLICATIONS.
KUBOTA 1C010-63010, 1C010-63011, 1C010-63012
KUBOTA GENERATOR SQ3350SW KUBOTA V3300 DSL 0000
KUBOTA TRACTOR - UTILITY M105SDSC KUBOTA V3800DI 105HP DSL 2003-2009
KUBOTA TRACTOR - UTILITY M105SDSCC KUBOTA V3800DI 105HP DSL 2003-2009
KUBOTA TRACTOR - UTILITY M105SHC KUBOTA V3800DI 105HP DSL 2003-2009
KUBOTA TRACTOR - UTILITY M105SHDC KUBOTA V3800DI 105HP DSL 2003-2009
KUBOTA TRACTOR - UTILITY M105X KUBOTA V3800DI 105HP DSL 2003-2009
KUBOTA TRACTOR - UTILITY M108S KUBOTA V38CRE3-S2 108HP DSL 2007-2009
KUBOTA TRACTOR - UTILITY M108S KUBOTA V38DICR-TIE3-S2 108HP DSL 2007-2009
KUBOTA TRACTOR - UTILITY M108XDTC KUBOTA V3800DI 108HP DSL 2007-2009
KUBOTA TRACTOR - UTILITY M6800 KUBOTA V3300E 68HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M6800DT KUBOTA V3300E 68HP DSL 1998-2004
KUBOTA TRACTOR - UTILITY M6800HD-F KUBOTA V3300E 68HP DSL 2001-2005
KUBOTA TRACTOR - UTILITY M6800HDC KUBOTA V3300E 68HP DSL 2001-2005
KUBOTA TRACTOR - UTILITY M6800S KUBOTA V3300E 68HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M6800S-F KUBOTA V3300E 68HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M6800SC KUBOTA V3300E 68HP DSL 1999-2004
KUBOTA TRACTOR - UTILITY M6800SD-F KUBOTA V3300E 68HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M6800SDC KUBOTA V3300E 68HP DSL 2000-2004
KUBOTA TRACTOR - UTILITY M6800SDT KUBOTA V3300E 68HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M8200 KUBOTA V3300 82HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M8200C KUBOTA V3300 82HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M8200CCS KUBOTA V3300 82HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M8200DT-F KUBOTA V3300 82HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M8200DTC KUBOTA V3300 82HP DSL 1999-2005
KUBOTA TRACTOR - UTILITY M8200F KUBOTA V3300 82HP DSL 1998-2004
KUBOTA TRACTOR - UTILITY M8200HD-F KUBOTA V3300 82HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M8200HDC KUBOTA V3300 82HP DSL 1998-2005
KUBOTA TRACTOR - UTILITY M8200SDNB KUBOTA V3300 82HP DSL 2000-2005
KUBOTA TRACTOR - UTILITY M8200SDNBC KUBOTA V3300 82HP DSL 2000-2005
KUBOTA TRACTOR - UTILITY M8200SDNBF KUBOTA V3300 82HP DSL 2000-2005
KUBOTA TRACTOR - UTILITY M8540DTHQ KUBOTA V3800DI-TE2-QZ 85.5HP DSL 2007-2009
KUBOTA TRACTOR - UTILITY M8540DTQ KUBOTA V3800DI-TE2-QZ 85.5HP DSL 2007-2009
KUBOTA TRACTOR - UTILITY M8540HDNBC KUBOTA V3800DI-TE3-ZA2 85.5HP DSL 2007-2009
KUBOTA TRACTOR - UTILITY M8540HDNBPC KUBOTA V3800DI-TE3-ZA2 85.5HP DSL 2007-2009
KUBOTA TRACTOR - UTILITY M9000 KUBOTA V3300 90HP DSL 1999-2009
KUBOTA TRACTOR - UTILITY M9000C KUBOTA V3300 90HP DSL 1999-2009
KUBOTA TRACTOR - UTILITY M9000DT-F KUBOTA V3300 90HP DSL 1999-2009
KUBOTA TRACTOR - UTILITY M9000DTC KUBOTA V3300 90HP DSL 1999-2009
KUBOTA TRACTOR - UTILITY M9000DTCCS KUBOTA V3300 90HP DSL 2000-2009
KUBOTA TRACTOR - UTILITY M9000DTL KUBOTA V3300 90HP DSL 1999-2009
KUBOTA TRACTOR - UTILITY M9000DTL-F KUBOTA V3300 90HP DSL 1999-2009
KUBOTA TRACTOR - UTILITY M9000DTM KUBOTA V3300 90HP DSL 2000-2009
KUBOTA TRACTOR - UTILITY M9000DTMC KUBOTA V3300 90HP DSL 2001-2009
KUBOTA TRACTOR - UTILITY M9000DTMCW KUBOTA V3300 90HP DSL 2001-2009
KUBOTA TRACTOR - UTILITY M9000DTMW KUBOTA V3300 90HP DSL 2001-2009
KUBOTA TRACTOR - UTILITY M9000F KUBOTA V3300 90HP DSL 1999-2009
KUBOTA TRACTOR - UTILITY M9000HD-F KUBOTA V3300 90HP DSL 2002-2009
KUBOTA TRACTOR - UTILITY M9000HDC KUBOTA V3300 90HP DSL 2002-2009
KUBOTA TRACTOR - UTILITY M9000HDL KUBOTA V3300 90HP DSL 2002-2009
KUBOTA TRACTOR - UTILITY M9540DTHQ KUBOTA V3800DI-TE2-QZ-HS 95HP DSL 2007-2009
KUBOTA TRACTOR - UTILITY M9540DTQ KUBOTA V3800DI-TE2-QZ 95HP DSL 2007-2009
KUBOTA TRACTOR - UTILITY M95SDSC KUBOTA V3800DI 95HP DSL 2003-2009
KUBOTA TRACTOR - UTILITY M95SDSCS KUBOTA V3800DI 95HP DSL 2003-2009
KUBOTA TRACTOR - UTILITY M95XDTC KUBOTA V3800DI 95HP DSL 2003-2009
KUBOTA TRACTOR - UTILITY M96S KUBOTA V3800DI-TE2-Q 95HP DSL 2007-2009
THOMAS EQUIPMENT SKID STEER 225 KUBOTA V3300T DIESEL 0000
THOMAS EQUIPMENT SKID STEER 245 KUBOTA V3300T DIESEL 0000
THOMAS EQUIPMENT SKID STEER T245 KUBOTA V3300 DIESEL 1998-2003
