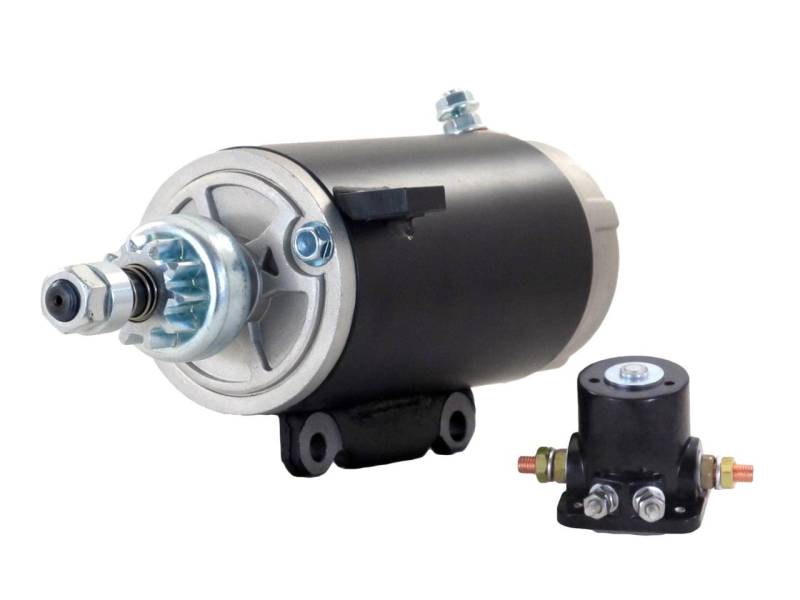

Starter Motor Compatible With & Solenoid 69-80 Evinrude Marine Outboard 100 100Hp 18-5625

REPLACES THESE STARTER NUMBERS:
PRESTOLITE SALES 20513506TBA
SIERRA MARINE 18-5625, 18-5634, 18-5647
UNITED TECHNOLOGIES 0139940-M030SM, 0228940-M030SM, 0246540-M030SM, 0246640-M030SM,139940, 1791640-M030SM, 1791740-M030SM

ITEM DESCRIPTION:
UNIT TYPE: OMC OUTBOARD MARINE, JOHNSON ELECTRIC
TYPE: PMDD
VOLTAGE: 12 VOLTS
ROTATION: CCW
TEETH/SPLINES: 10 TEETH/SPLINES
PINION/SPLINES OD: 32.3MM / 1.272IN
MOUNTING HOLE 1: UNTHREADED
MOUNTING HOLE 2: UNTHREADED
MOUNTING HOLE 3: UNTHREADED
APPROXIMATE WEIGHT: 7.68 LBS / 3.49 KG
NOTES:
4.78 /121.4MM LONG FIELD CASE
SOLENOID REPLACES THESE PART NUMBERS
OMC OUTBOARD MARINE 383622, 395419, 582708, 586180
MERCURY MARINE 47886, 47886T
SIERRA MARINE 18-5808
OEM: OMC OUTBOARD MARINE
VOLTAGE: 12 VOLTS
NUMBER OF TERMINALS: 4
DUTY CYCLE: INTERMITTENT DUTY
NOTES:
(2) 10-32 & (2) 5/16-24 THREADED TERMINALS, INSULATED GROUND
